Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
GD3080

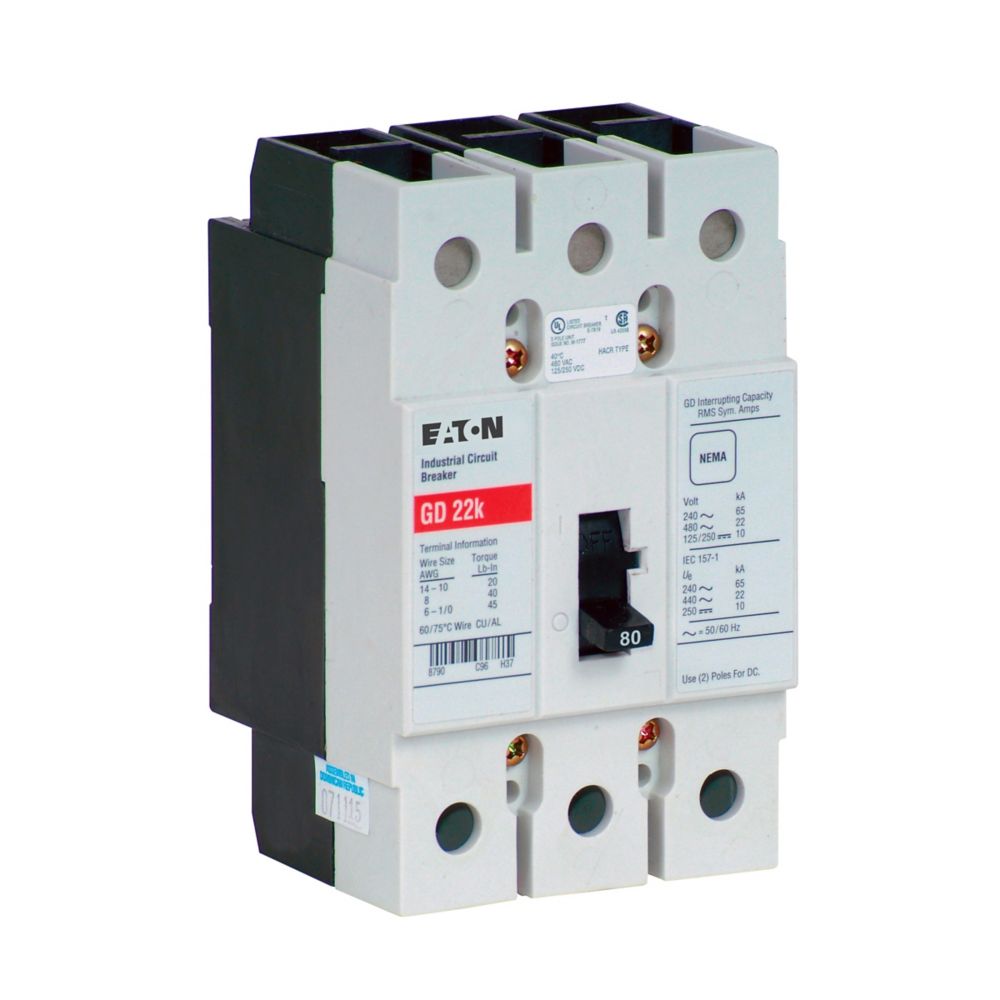

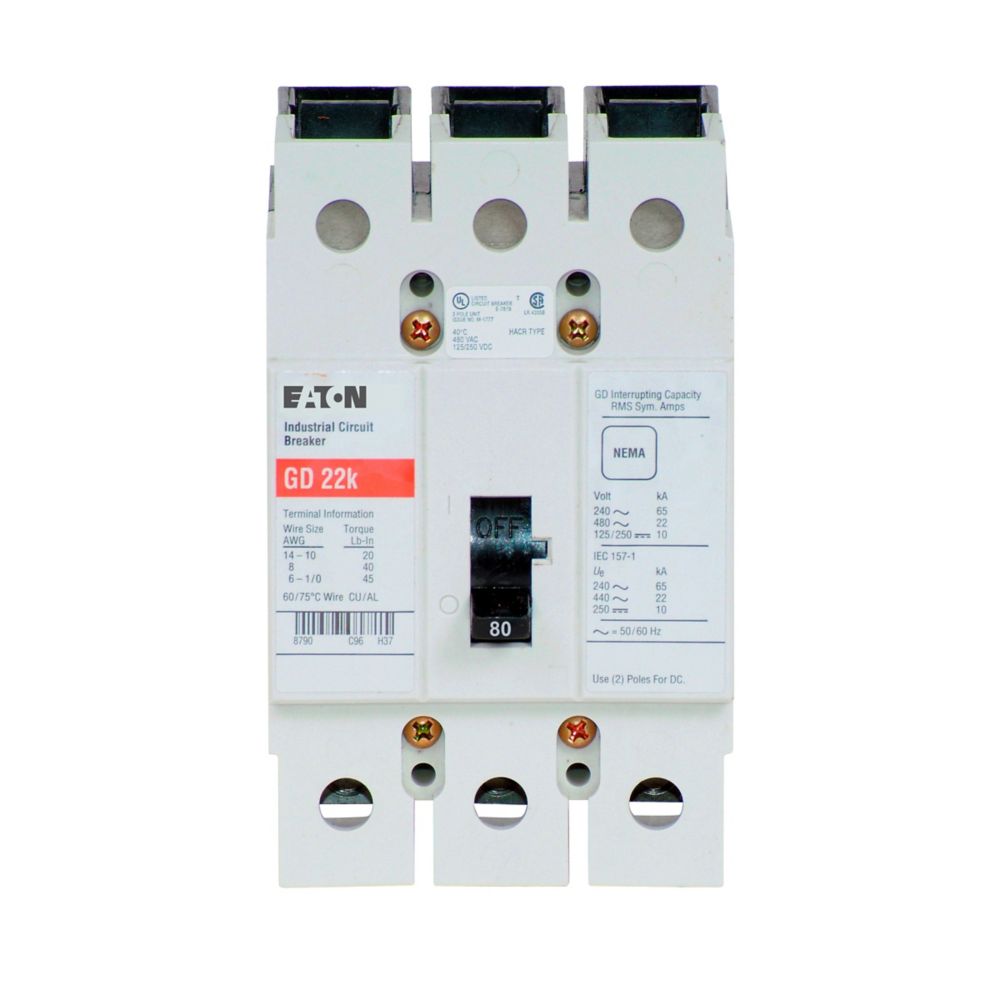

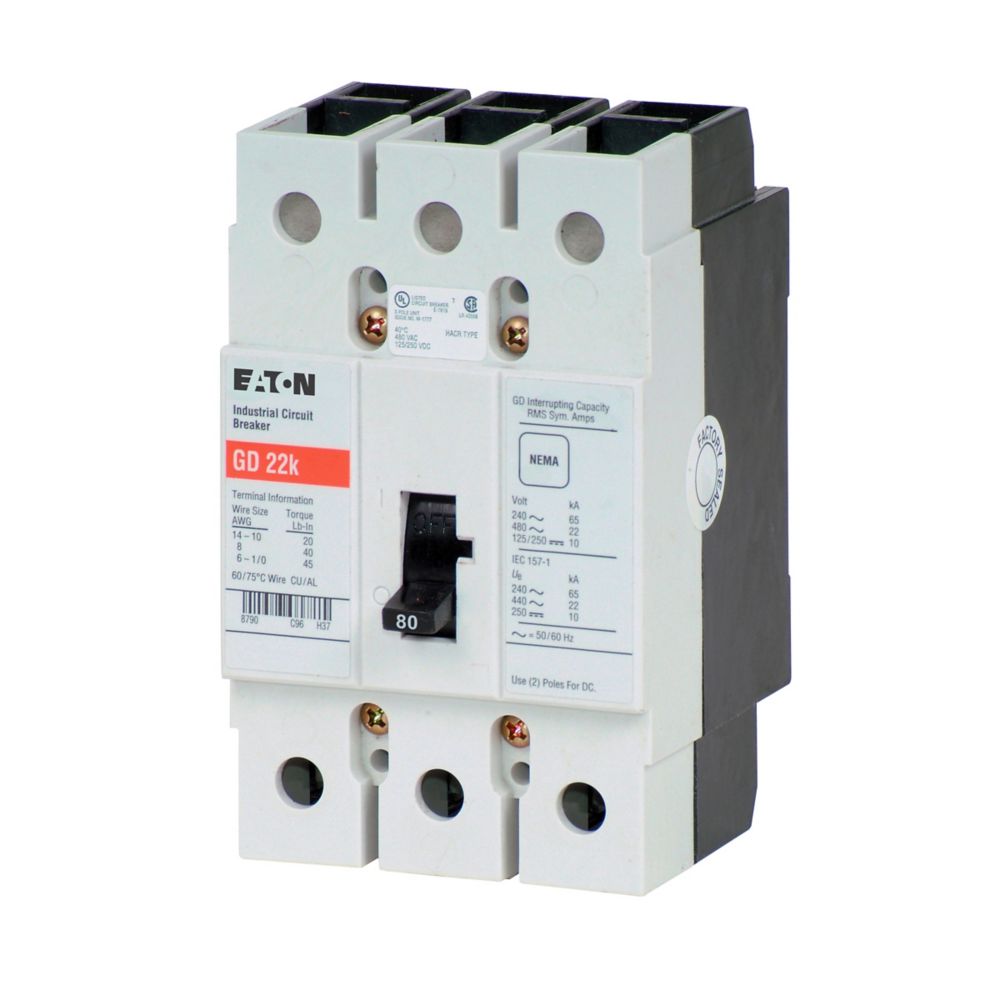

GD3080 is an Eaton Series C, G-frame, 3-pole molded case circuit breaker designed for reliable power distribution applications.
This circuit breaker features an 80 amp rating, 480V maximum voltage, and a thermal magnetic trip unit for robust protection. It is suitable for both line and load side connections, offers a high interrupting capacity, and is UL listed for safety and compliance.
-
Key Specifications
- Amperage: 80 Amp
- Voltage: 480V AC, 125/250V DC
- Poles: 3
- Mounting Type: Panel or switchboard (molded case)
- Interrupt Rating: 65 kAIC at 240V, 22 kAIC at 480V
- Series/Frame: C Series, G-frame
- Trip Unit: Thermal magnetic (non-interchangeable LI)
- Certifications: UL Listed
- Terminals: Line and load side lugs
- Application: Suitable for reverse feed
- Contactor Type: Magnetic
- Phase: 3
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GD3080
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GD
- Voltage : 480
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : G Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679231203
- GTIN : 00786679231203
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
- Weight : 2.1
- Certification : UL Listed
