Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
GD3040

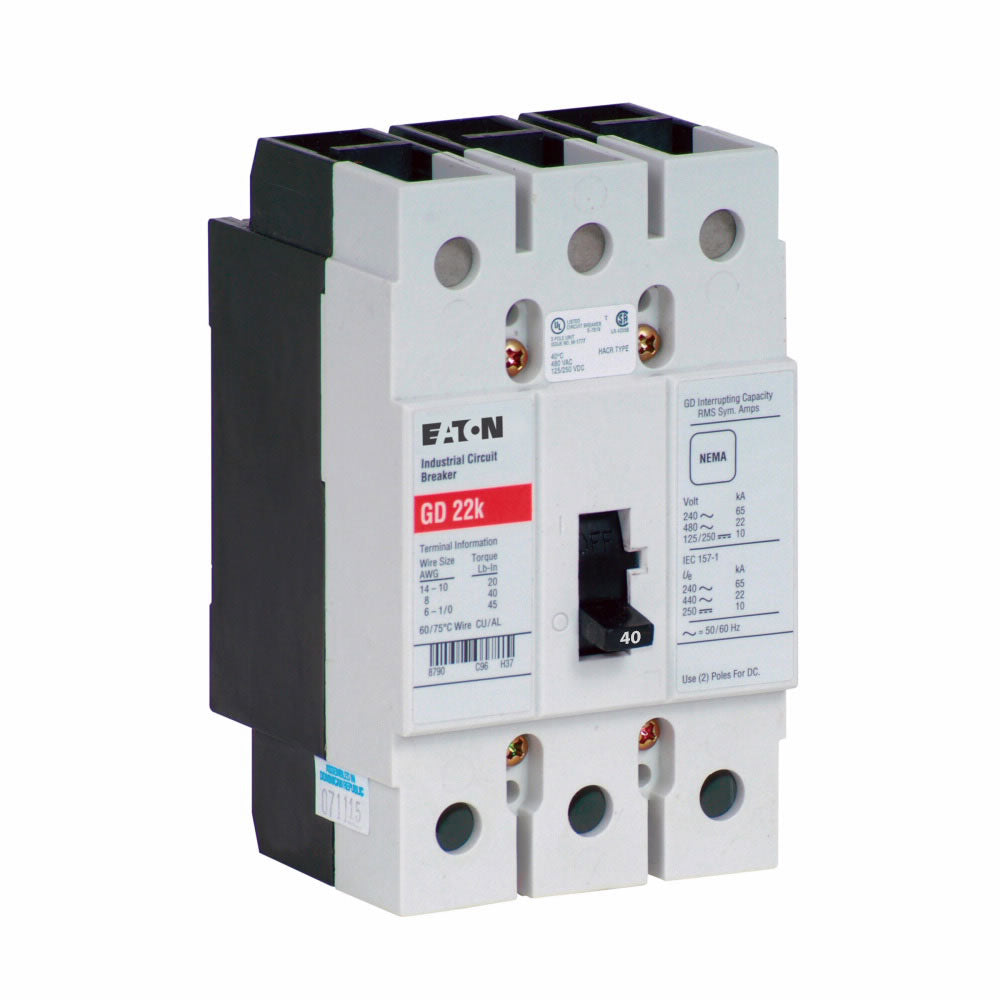

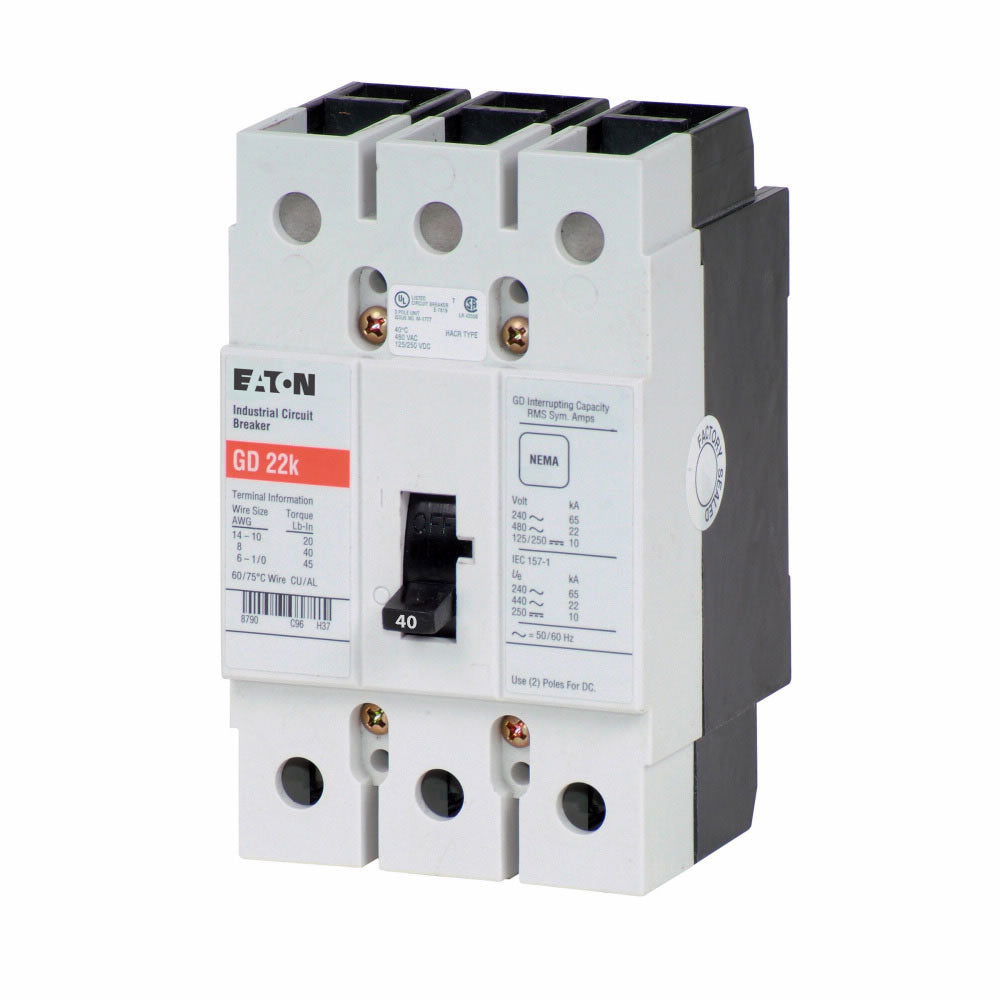

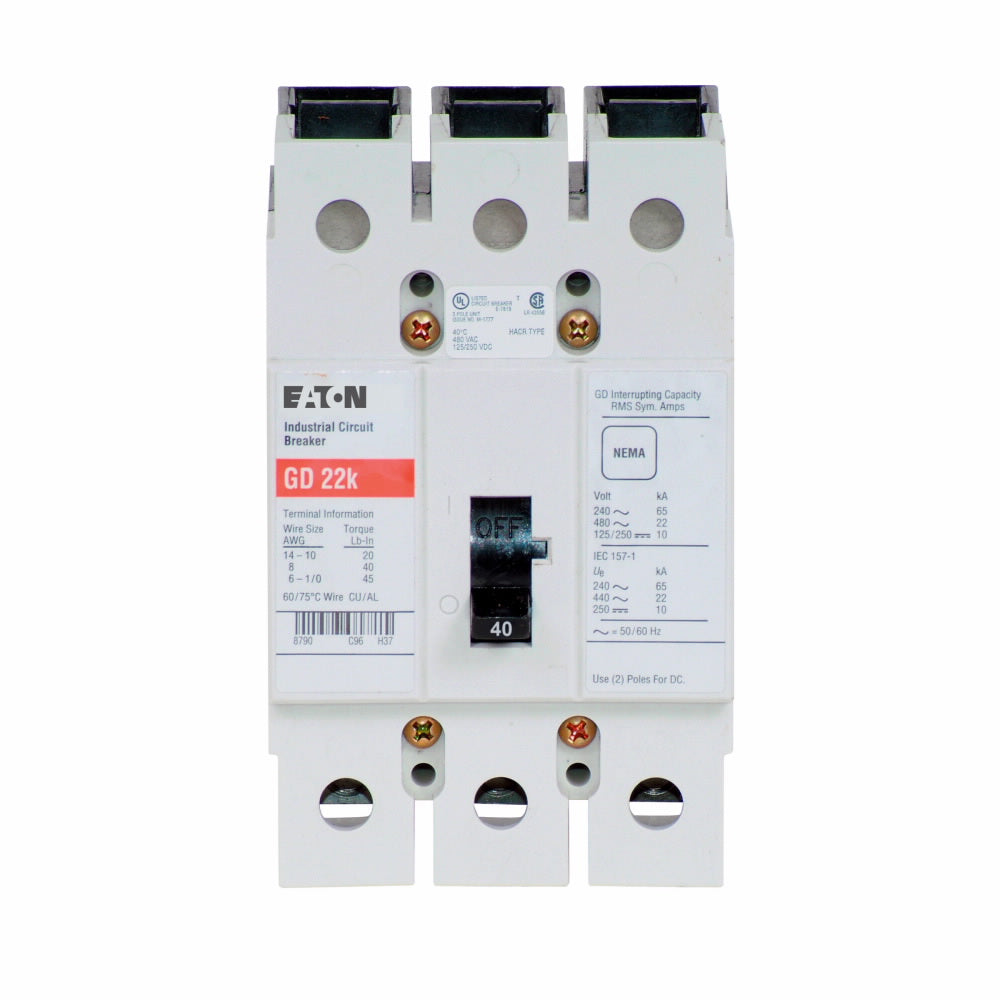

GD3040 is a 3 pole, 40 amp, 480 volt molded case circuit breaker from Westinghouse designed for reliable power distribution protection.This Westinghouse GD3040 circuit breaker features a G frame series with thermal magnetic trip unit, suitable for 50/60 Hz applications. It has a 22kA interrupting rating at 480V AC, providing robust short circuit protection. The breaker supports feed-thru mounting and is rated for 40 amps continuous current at 40 degrees Celsius. It complies with applicable IEC standards and is ideal for industrial and commercial electrical panels.
- Key Specifications
- Amperage: 40A
- Voltage: 480V AC
- Poles: 3
- Frame/Series: G Frame
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 22kA at 480V
- Frequency: 50/60 Hz
- Mounting Type: Feed-Thru
- Weight: Approximately 4 lbs
- Standards: IEC 60947-2 compliant
Specifications
- Part Number: GD3040
- Manufacturer : Westinghouse
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GD
- Voltage : 480
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : G Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679231104
- GTIN : 00786679231104
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
- Weight : 2
- Certification : UL Listed
