Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
GD3035

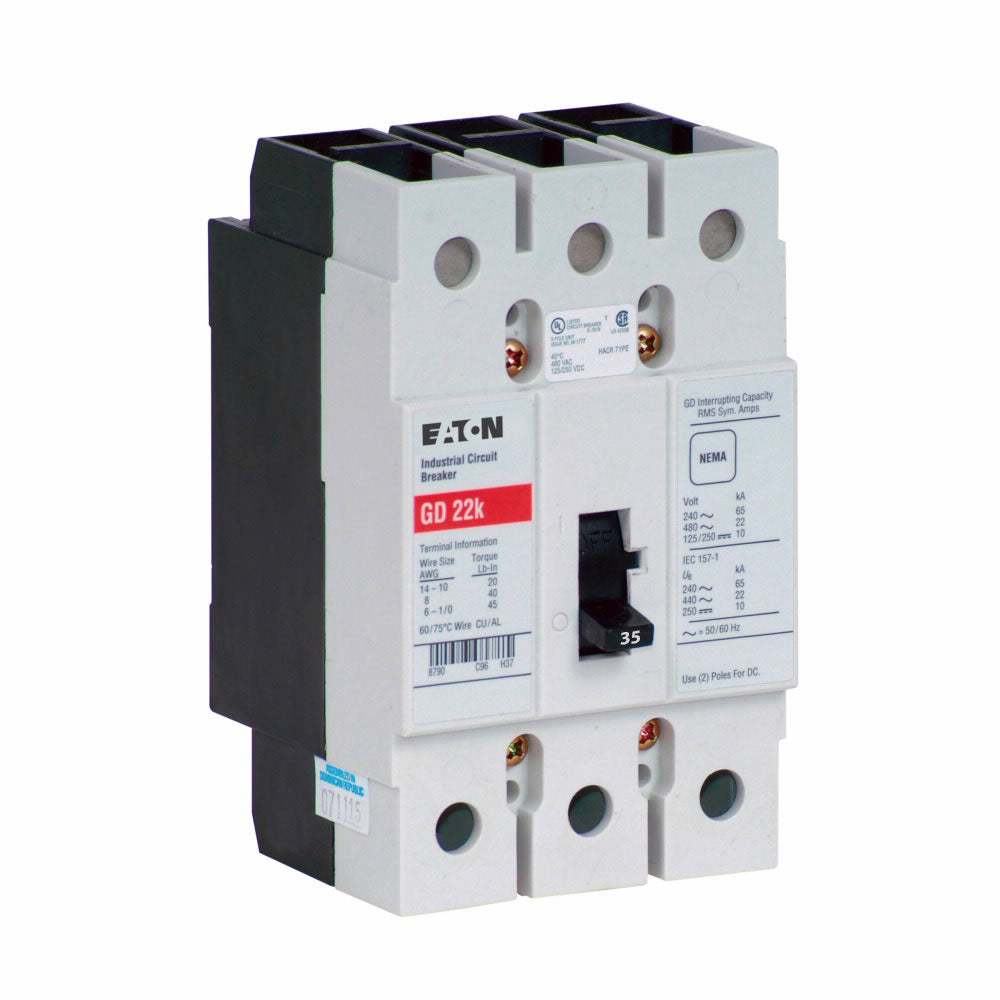

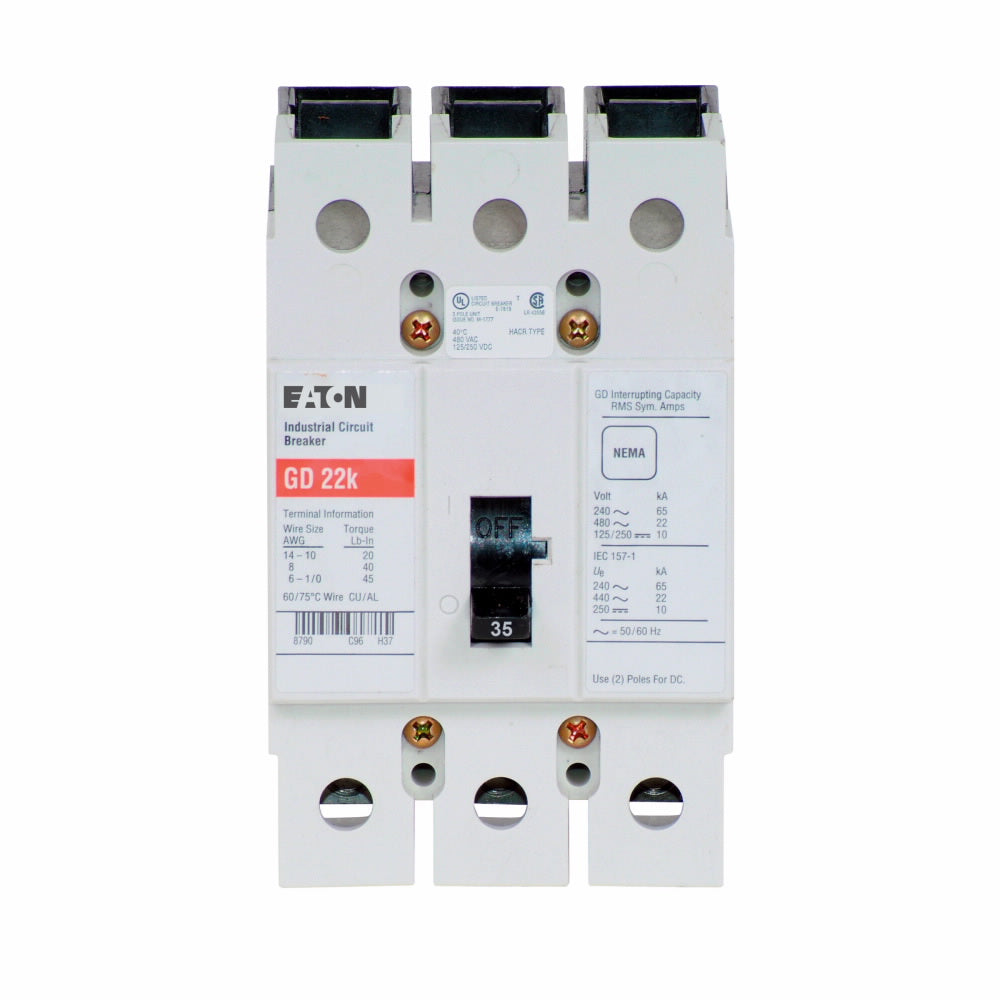

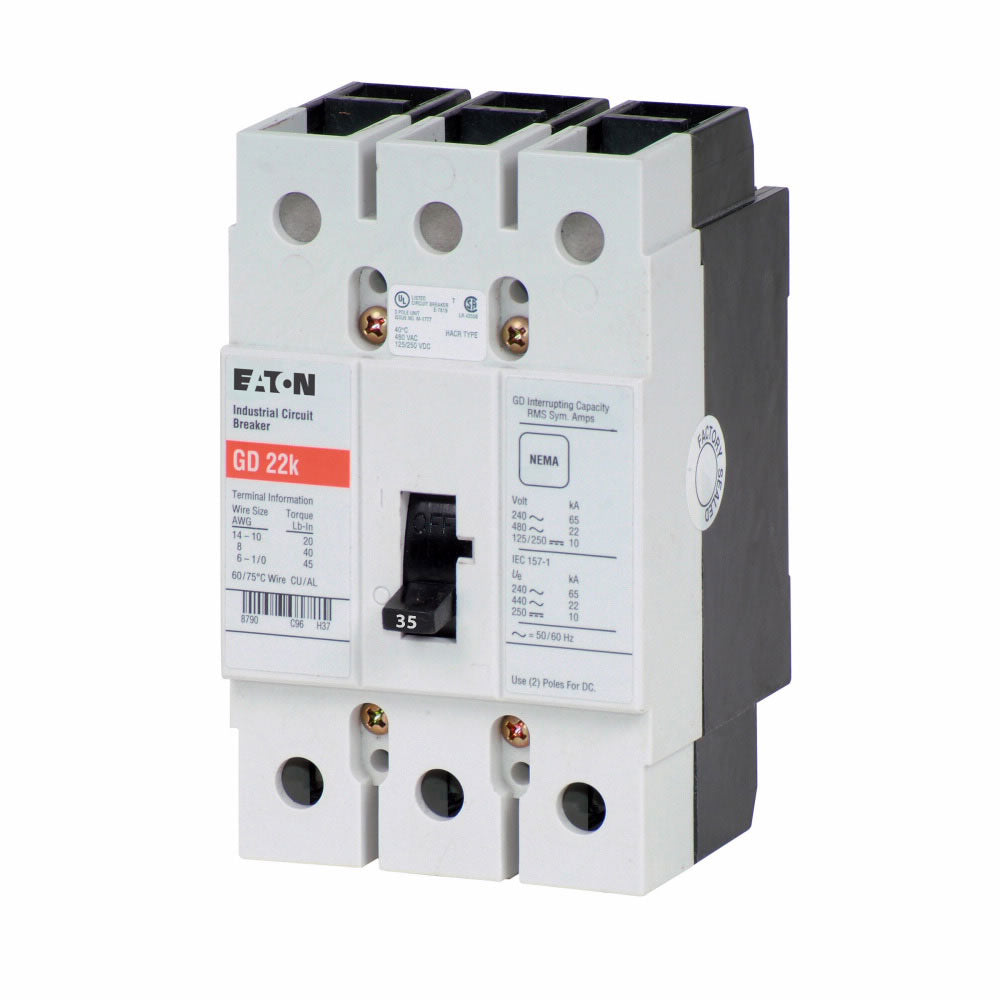

GD3035 is a Cutler Hammer molded case circuit breaker with a 35 ampere rating, 480 volts, and three poles designed for reliable circuit protection.This Eaton Series C G-frame breaker features a fixed thermal and magnetic trip unit, suitable for panel mounting with a 65 kA interrupt rating at 240 VAC and 22 kA at 480 VAC. It supports 125/250 VDC and operates at 50/60 Hz frequency, UL listed for safety and performance.
- Amperage: 35A
- Voltage Rating: 480 VAC, 125/250 VDC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 65 kAIC at 240 VAC, 22 kAIC at 480 VAC
- Series/Frame: Eaton Series C, G-frame
- Trip Unit: Fixed Thermal, Fixed Magnetic
- Frequency: 50/60 Hz
- UL Listed
- Weight: 2.05 lb
Specifications
- Part Number: GD3035
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GD
- Voltage : 480
- Amperage : 35
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous
- Frame Size : G Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679231081
- GTIN : 00786679231081
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
- Weight : 2.05
- Certification : UL Listed
