Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
GD3030D

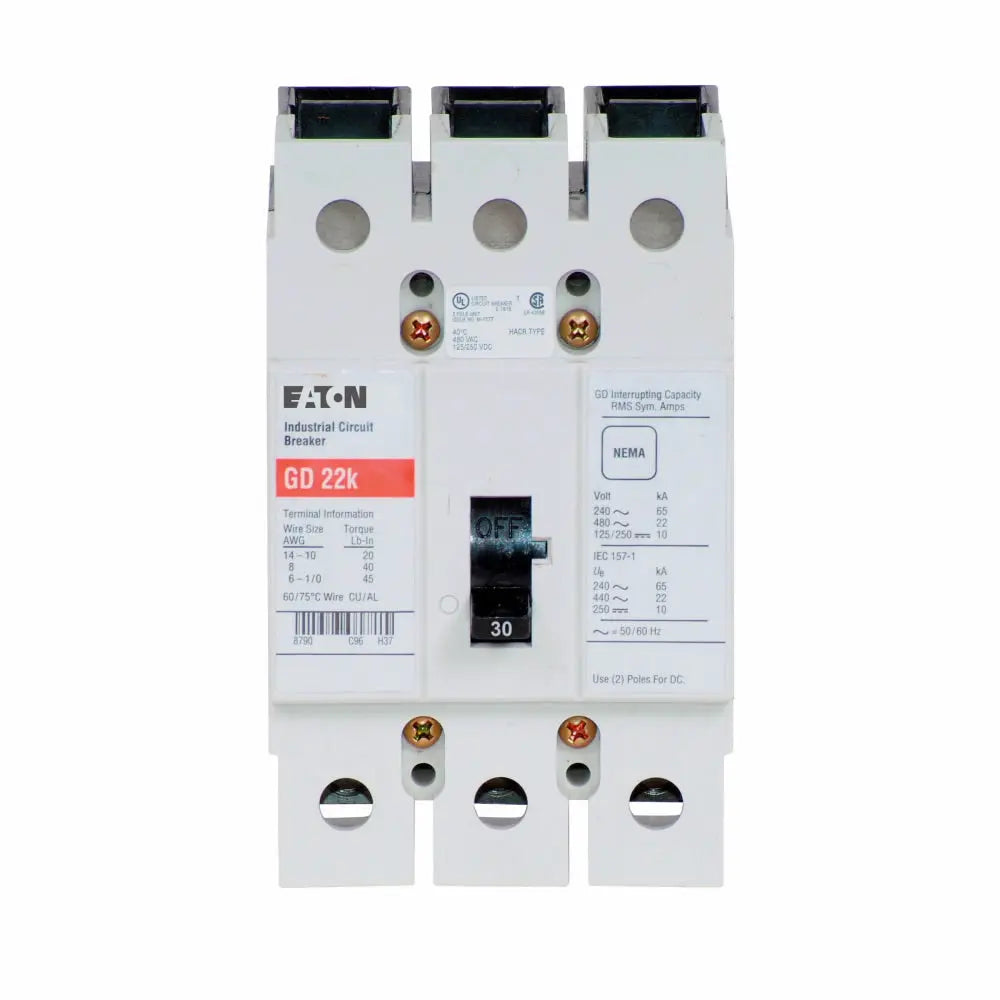

GD3030D is a three-pole molded case circuit breaker from Eaton's C Series, designed for reliable protection in industrial and commercial power distribution systems. This G-frame breaker features a fixed thermal magnetic trip unit and is rated for 30 amperes at 480 volts AC, making it suitable for a wide range of three-phase applications. The GD3030D provides robust protection with a 65 kAIC interrupt rating at 240 VAC and 14 kAIC at 480 VAC. It is constructed for fixed mounting and is compatible with standard panel configurations. The breaker is designed for use in systems requiring dependable overcurrent and short-circuit protection.
- Part Number: GD3030D
- Manufacturer: Eaton
- Series: C Series
- Frame: G-Frame
- Amperage: 30A
- Voltage: 480 VAC, 125/250 VDC
- Poles: 3
- Interrupt Rating: 65 kAIC at 240 VAC, 14 kAIC at 480 VAC
- Mounting Type: Fixed
- Series: C Series
- Trip Unit: Fixed Thermal Magnetic
Specifications
- Part Number: GD3030D
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GD
- Voltage : 480
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : G Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 782114345740
- GTIN : 00782114345740
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
- Weight : 2.1
- Certification : UL Listed
