Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
GD3030A3

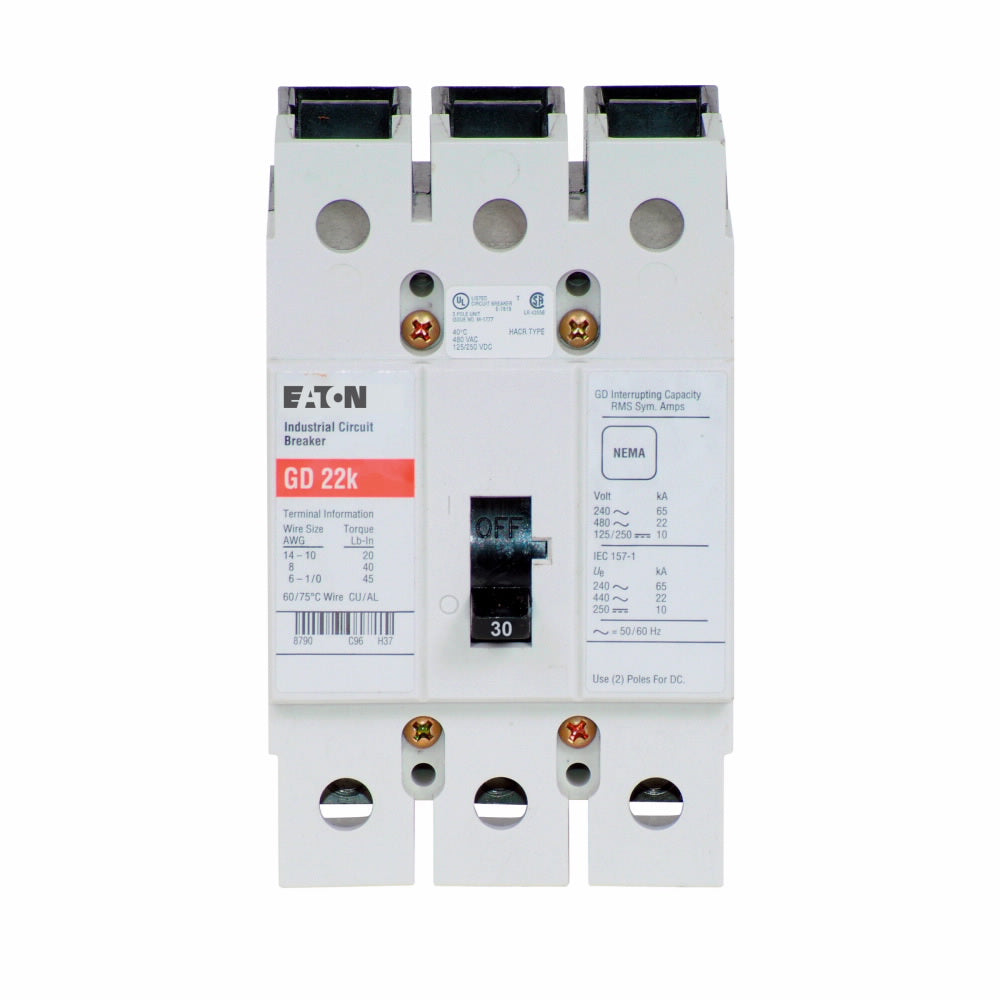

GD3030A3 is an Eaton Series C complete molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications. This G-frame breaker features fixed thermal and fixed magnetic trip units with superior performance through patented contact design and high-speed blow-open action. The three-pole configuration provides comprehensive protection for three-phase power distribution systems operating at 480 VAC or 125/250 VDC. Key Specifications
- Amperage Rating: 30A
- Voltage Rating: 480 VAC, 125/250 VDC
- Number of Poles: Three-pole
- Frame Size: G-frame
- Circuit Breaker Type: GD
- Trip Unit: Fixed thermal, fixed magnetic
- Interrupt Rating: 65 kAIC at 240 VAC, 14 kAIC at 480 VAC
- Auxiliary Switch: 1A-1B with right pigtail
- Frequency Rating: 50/60 Hz
- Mounting: Panel
- Series: Series C
- UL Listed
Specifications
- Part Number: GD3030A3
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
Product Data
- UPC : 786679040768
- GTIN : 00786679000000
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
- Weight : 2
- Certification : UL Listed
