Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
GD3030

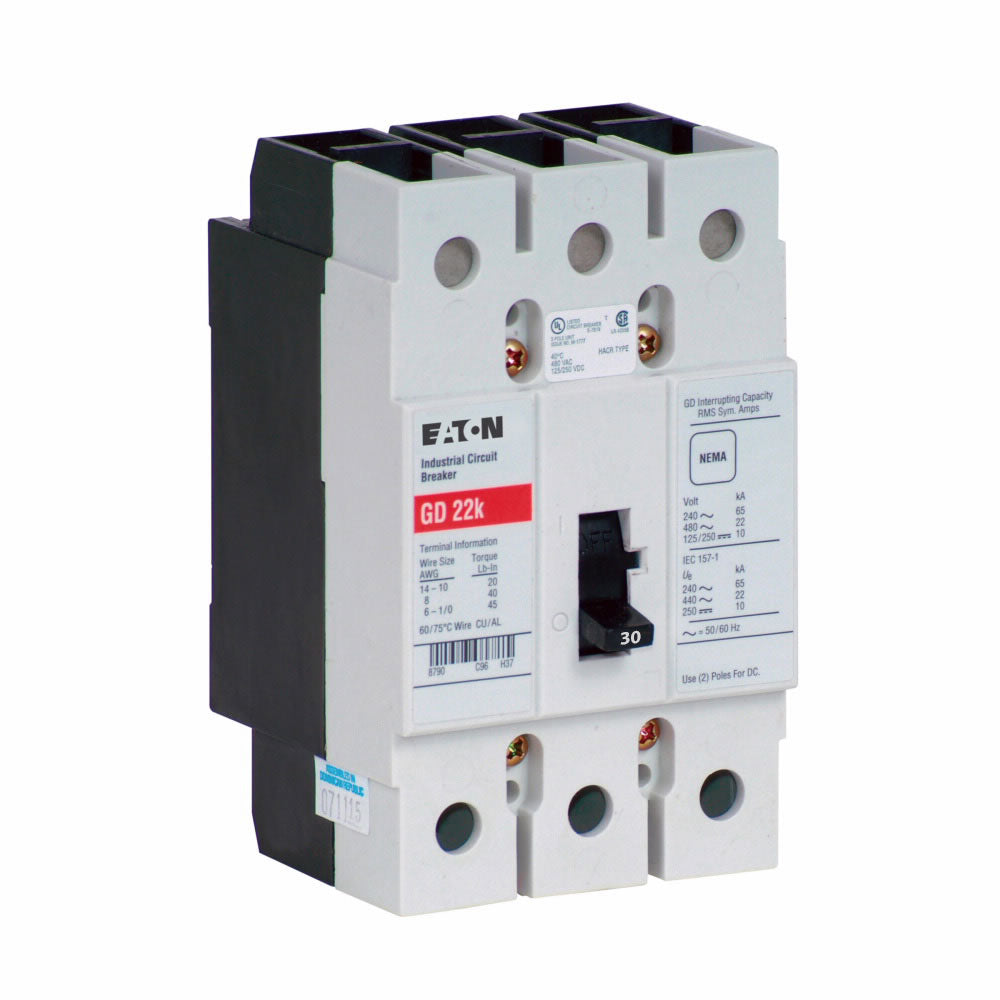

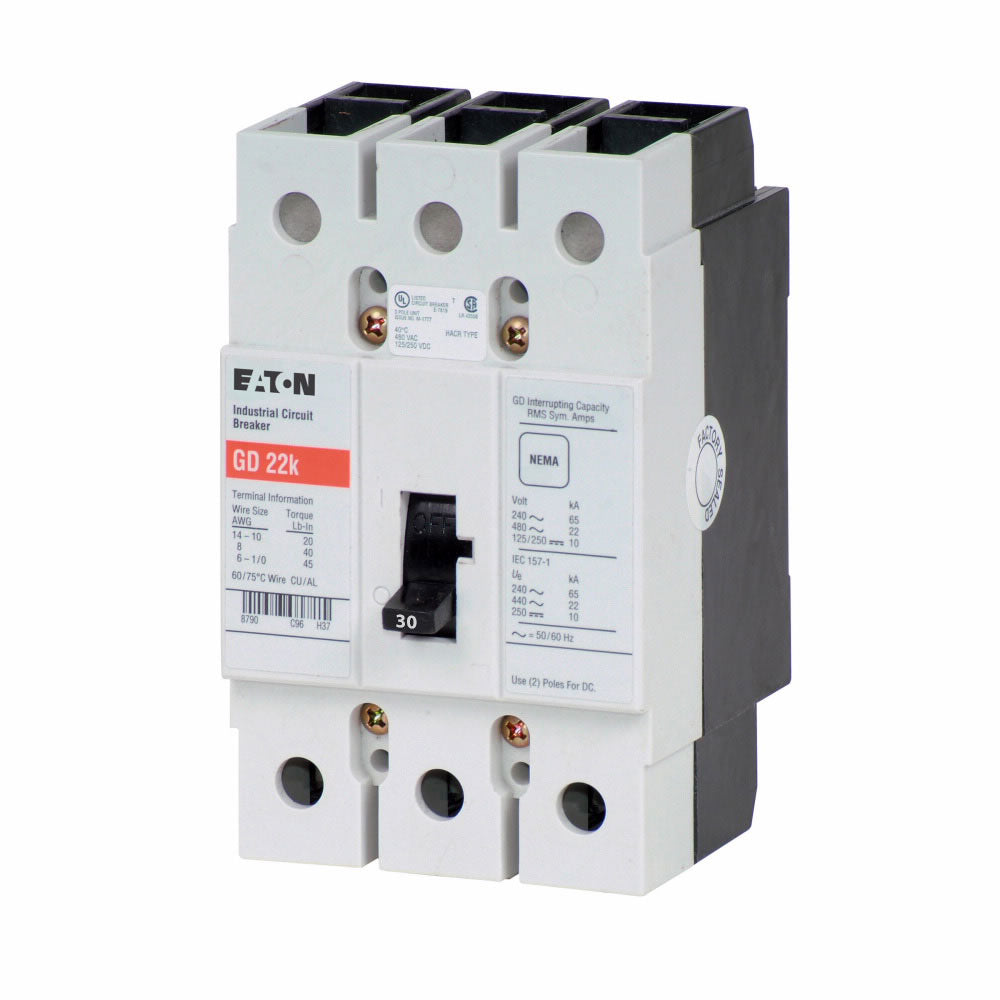

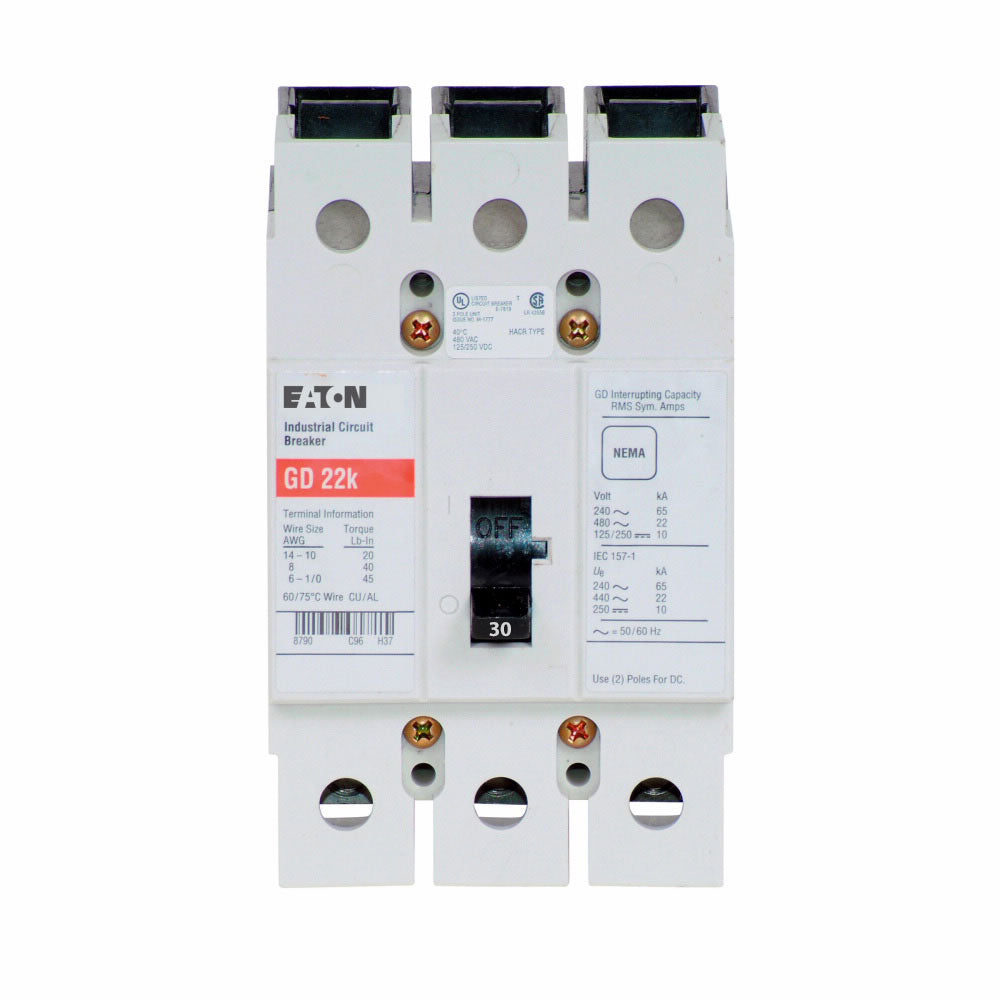

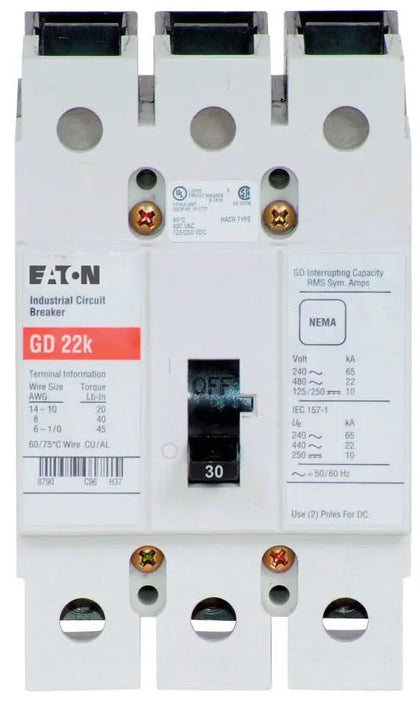

GD3030 is an Eaton Series C molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.
This three-pole breaker features a GD frame, 30A current rating, and 480V AC voltage rating, with a fixed thermal magnetic trip unit for overload and short-circuit protection. It is UL Listed for safety and compliance.
-
Key Specifications
- Part Number: GD3030
- Manufacturer: Eaton
- Series/Frame: Series C, GD Frame
- Amperage: 30A
- Voltage: 480V AC, 250V DC
- Poles: 3
- Trip Unit: Fixed thermal, fixed magnetic
- Interrupt Rating: 65 kAIC at 240V AC, 14 kAIC at 480V AC
- Mounting Type: Panel or enclosure (standard molded case)
- Frequency: 50/60 Hz
- Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GD3030
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GD
- Voltage : 480
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : G Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679231067
- GTIN : 00786679231067
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
- Weight : 2 lb
- Certification : UL Listed
