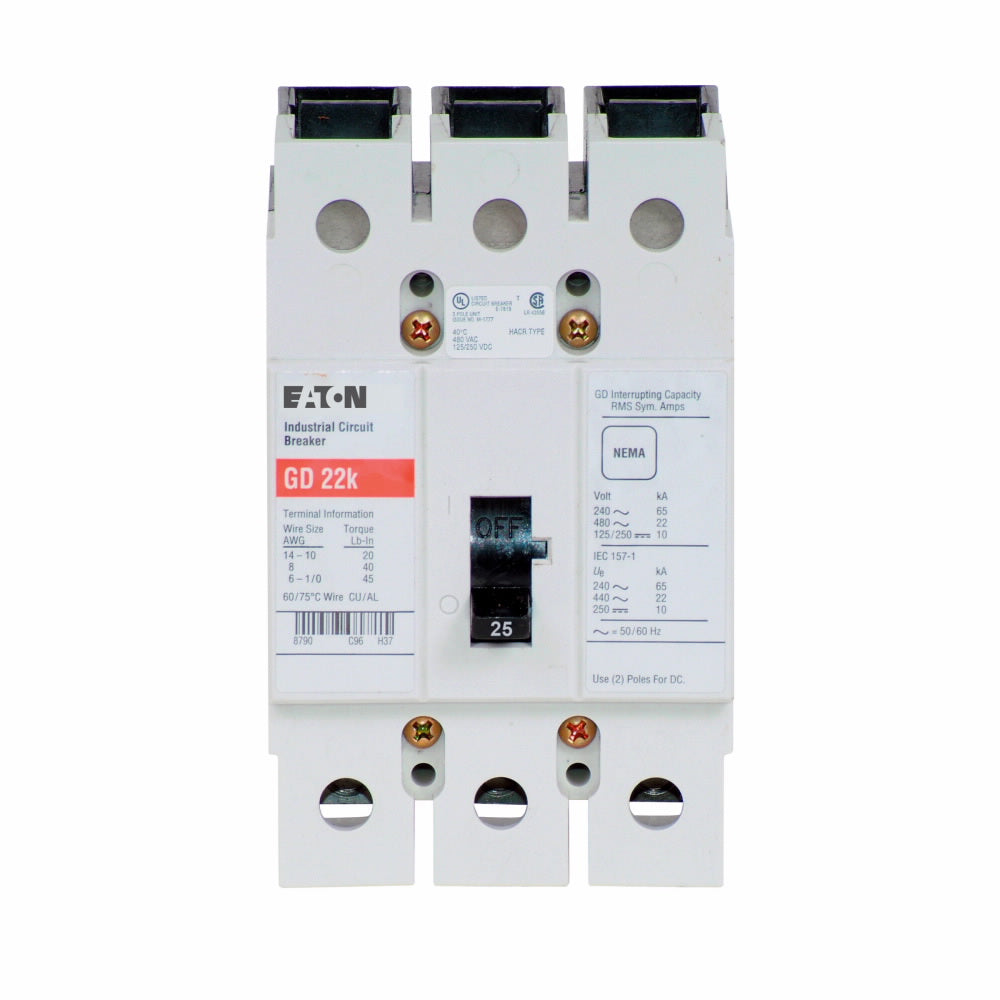

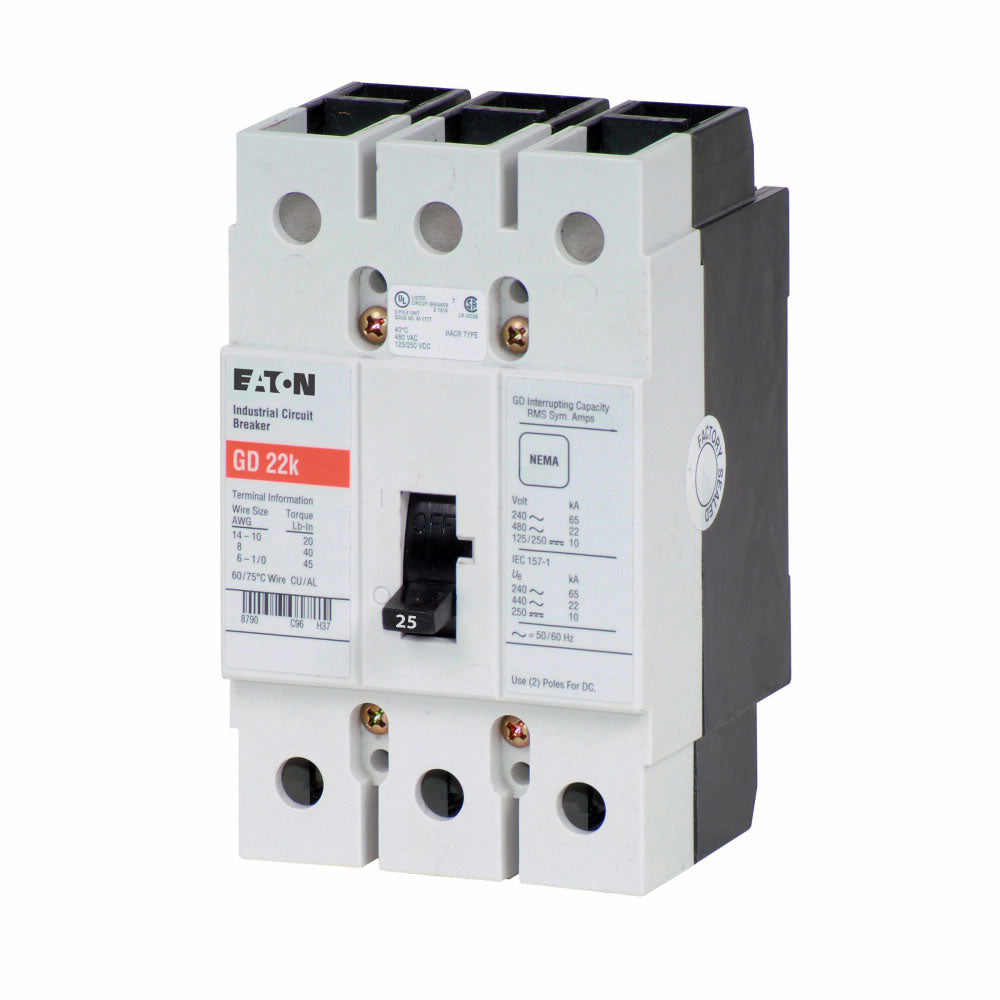

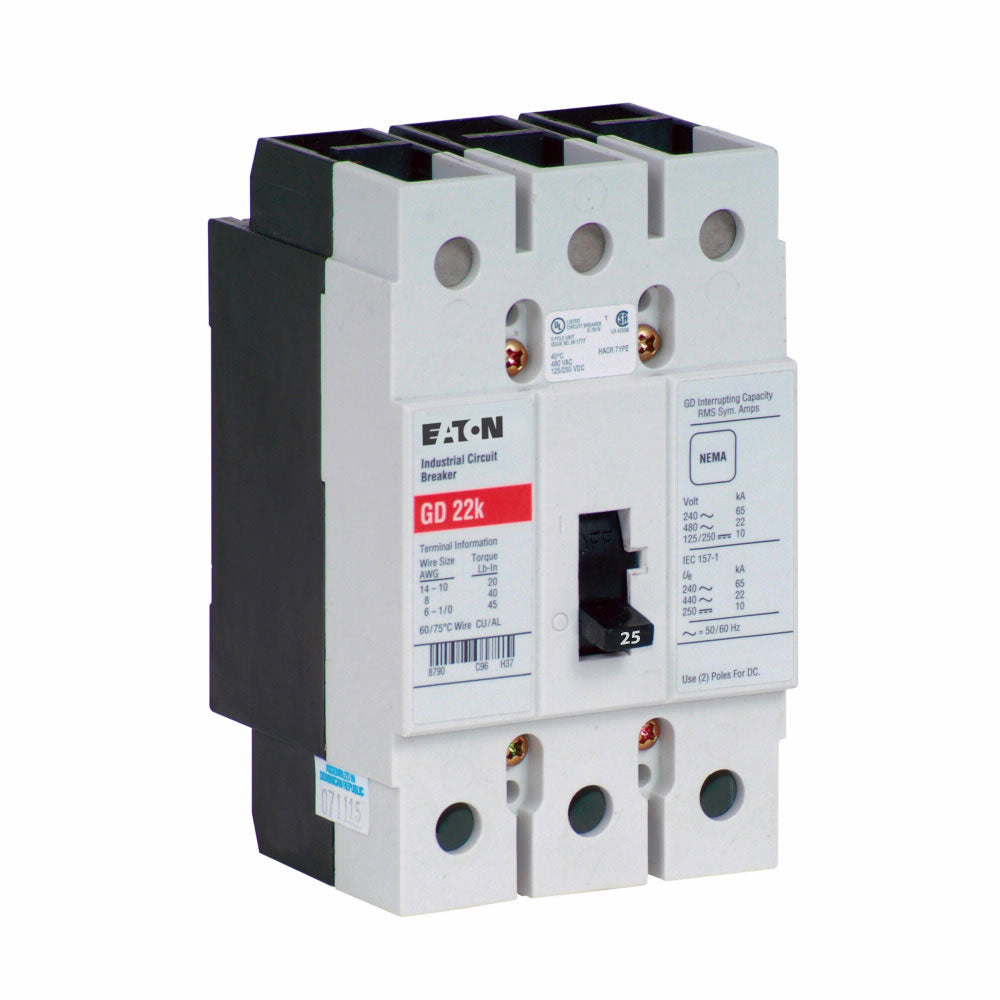

GD3025 - Eaton 25 Amp 3 Pole 480VAC Molded Case Circuit Breaker Series C G-Frame

GD3025

GD3025 is a 3 pole, 25 amp molded case circuit breaker from Eaton's Series C G-frame line designed for panel mounting.This Eaton GD3025 circuit breaker features thermal magnetic protection with fixed thermal and magnetic trip units. It supports a voltage rating of 480VAC and 125/250VDC, with an interrupting rating of 65kAIC at 240VAC and 14kAIC at 480VAC. The breaker includes long time and instantaneous trip functions and uses feed-thru line and load side lug connections.

• Amperage: 25 A
• Voltage: 480 VAC, 125/250 VDC
• Poles: 3
• Mounting Type: Panel mount
• Interrupt Rating: 65kAIC at 240VAC, 14kAIC at 480VAC
• Series/Frame: Series C, G-frame (GD type)
• Trip Unit: Fixed thermal, fixed magnetic (T186 trip type)
• Protection: Thermal magnetic
• Connection Type: Feed-thru line and load side lug
• Certifications: UL Listed
• Dimensions (HxWxD): 4.88 x 3 x 2.63 inches
• Weight: 2 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GD3025
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GD
• Voltage : 480
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 22kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : G Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679231043
• GTIN : 00786679231043
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
• Weight : 2
• Certification : UL Listed
