2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
GD2050

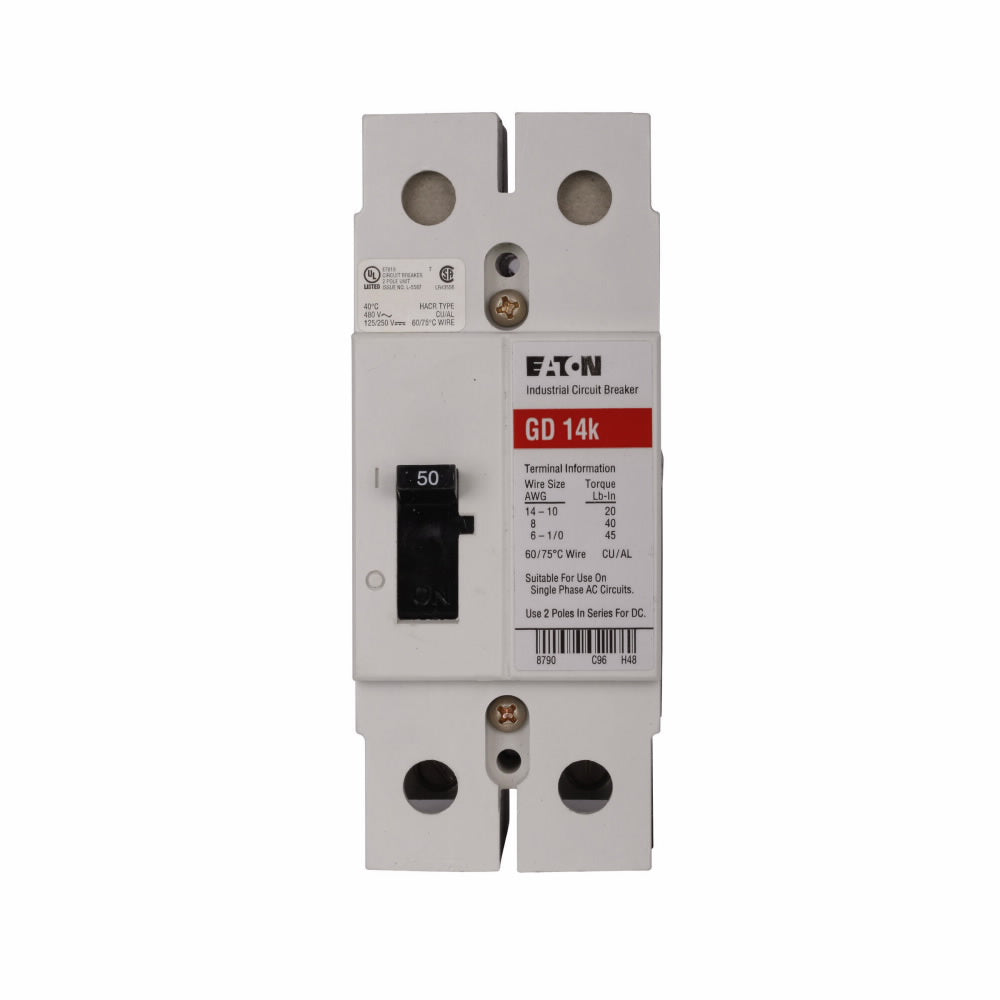

GD2050 is a 2 pole, 50 amp, 480VAC molded case circuit breaker from Eaton, designed for reliable circuit protection in commercial and industrial applications.
This Eaton GD2050 features a thermal magnetic trip unit (T186), G-frame construction, and feed-thru mounting for easy installation. It is suitable for use on 1-phase systems and offers robust performance with high interrupt ratings for enhanced safety.
-
Key Specifications
- Part Number: GD2050
- Manufacturer: Eaton
- Amperage: 50A
- Voltage: 480VAC, 125/250VDC
- Poles: 2
- Mounting Type: Feed-Thru
- Interrupt Rating: 65kA @ 240VAC, 14kA @ 480VAC
- Series/Frame: G-Frame, Type GD
- Trip Unit: Thermal Magnetic (T186)
- Certifications: Not specified in available data
- Connection: Feed-Thru
- Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GD2050
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GD
- Voltage : 480
- Amperage : 50
- Phase : 1
- Poles : 2
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : G Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679118160
- GTIN : 00786679118160
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 2 in (Length/Depth x Height x Width)
- Weight : 1.5
- Certification : UL Listed
