Product Info
- Manufacturer:Burndy
Description
GD1926

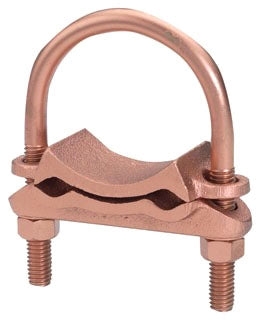

GD1926 is a Burndy mechanical grounding connector designed for joining two parallel copper cables to a rod or pipe, suitable for direct burial.This connector accommodates copper solid cables from 4 AWG to 2/0 AWG and copper stranded cables from 4 AWG to 2/0 AWG, connecting to a 2-1/2 inch rod or pipe. It features a cast copper alloy body with Durium silicon bronze screws and is UL467 listed for direct burial in earth or concrete. Installation requires a recommended torque of 240 in-lbs and is designed for one-wrench installation.
- Key Specifications
- Type: Mechanical Grounding Connector
- Conductor Size Range: 4 AWG to 2/0 AWG (solid and stranded)
- Rod/Pipe Size: 2-1/2 inch
- Material: Copper Alloy Body, Durium Silicon Bronze Screws
- Installation Torque: 240 in-lbs recommended
- UL Listed: UL467 for US and Canada
- Direct Burial Rated: Yes, suitable for earth or concrete
- Dimensions: 5.00 in height x 4.19 in width
- UPC: 781810260364
- RoHS Compliant: Yes
Specifications
- Part Number: GD1926
- Manufacturer : Burndy
- Brand : Burndy
Product Data
- UPC : 220658
- GTIN : 00781810260364
- Weight : 0.5
