Product Info
- Manufacturer:Burndy
Description
GD1826

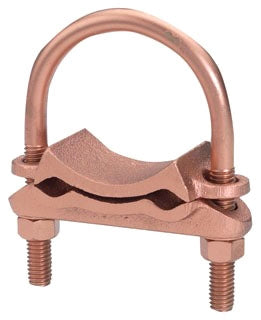

GD1826 is a Burndy mechanical grounding connector designed for joining two parallel copper cables to rod or pipe with direct burial capability.This connector accommodates 4 AWG solid to 2/0 AWG stranded copper cables and fits rods from 2 to 2-3/8 inches or 2-inch pipes. It features a cast copper alloy body with Durium silicon bronze U-bolt and is UL467 listed for US and Canadian markets. Rated for direct burial in earth or concrete, it installs with one wrench and is RoHS compliant.
- Type: Mechanical Grounding Connector
- Conductor Range: 4 AWG (solid) to 2/0 AWG (stranded)
- Rod/Pipe Size: 2 to 2-3/8 inch rod, 2 inch pipe
- Material: Copper Alloy body, Durium silicon bronze screw
- Installation Torque: 240 in-lbs recommended
- UL467 Listed for US and Canada
- Rated for direct burial in earth or concrete
- One-wrench installation
- RoHS Compliant
- Dimensions: 4.38 inch height, 3.75 inch width approx.
Specifications
- Part Number: GD1826
- Manufacturer : Burndy
- Brand : Burndy
Product Data
- UPC : 781810238943
- GTIN : 7818102389433
- Weight : 0.5
