GD1729 - Burndy Mechanical Grounding Connector, 2/0-4/0 AWG, 2 Cables to Rod or Pipe

GD1729

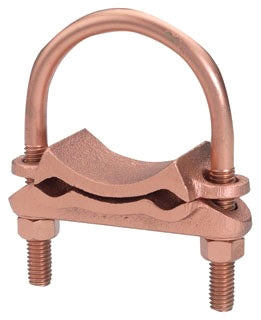

GD1729 is a Burndy mechanical grounding connector designed for connecting two cables to a rod or pipe, supporting 2/0 AWG to 4/0 AWG solid copper conductors and 2/0 AWG to 250 kcmil stranded copper conductors.This connector accommodates rods sized 1-5/8 inch to 1-7/8 inch and pipes sized 1-1/2 inch IPS. It features a cast high copper alloy body with Durium silicon bronze screws and a 3/8 inch mounting hole. The GD1729 is UL listed and rated for direct burial in earth or concrete, ensuring durability and reliability in grounding applications.

• Type: Mechanical Grounding Connector
• Conductor Size Range: 2/0 to 4/0 AWG Solid Copper
• Conductor Size Range: 2/0 AWG to 250 kcmil Stranded Copper
• Rod Size Range: 1-5/8 inch to 1-7/8 inch
• Pipe Size: 1-1/2 inch IPS
• Material: Cast High Copper Alloy Body, Durium Silicon Bronze Screws
• Mounting Hole Size: 3/8 inch
• UL Listed
• Rated for Direct Burial in Earth or Concrete
• Dimensions: 4.00 inch Height x 3.25 inch Width
• Installation Torque: 240 lbs/in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GD1729
• Manufacturer : Burndy
• Brand : Burndy

Product Data

• UPC : 781810260302
• GTIN : 0781810260302
• Weight : 0.5
