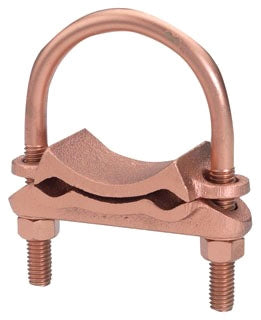

GD1726 - Burndy Mechanical Grounding Connector 2/0 AWG 2 Parallel Cables to Rod or Pipe 1-5/8" to 1-7/8" Rod 1-1/2" Pipe

GD1726

GD1726 is a mechanical grounding connector designed for joining two parallel cables to a rod or pipe, suitable for a wide range of grounding applications. This connector features a cast copper alloy body and Durium silicon bronze U-bolt, nut, and lockwasher for reliable performance and durability. The GD1726 connector is rated for direct burial and is compatible with 4 AWG solid to 2/0 AWG stranded cables. It fits rods from 1-5/8" to 1-7/8" in diameter and 1-1/2" pipe. The split crucible design allows for easy installation and secure connection.

• Part Number: GD1726
• Manufacturer: Burndy
• Connector Type: Mechanical Grounding Connector
• Wire Size: 4 AWG (Solid) to 2/0 AWG (Stranded)
• Application: 2 Parallel Cables to Rod or Pipe
• Rod Size: 1-5/8" to 1-7/8"
• Pipe Size: 1-1/2"
• Body Material: Cast Copper Alloy
• Hardware Material: Durium Silicon Bronze
• Plating: Unplated
• Certifications: UL467, cULus Listed, CSA Certified, RoHS Compliant
• Mounting: Direct Burial Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GD1726
• Manufacturer : Burndy
• Brand : Burndy

Product Data

• UPC : 781810234204
• GTIN : 781810238929
• Weight : 5.19
