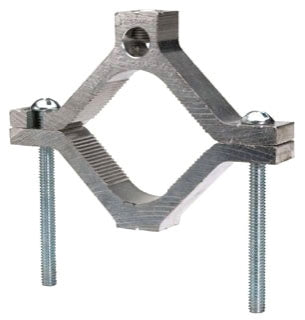

GC22A - Burndy Mechanical Grounding Connector, Cable to Water Pipe, 6 AWG-250 kcmil, 2-1/2"-4", Al/Cu Rated, Tin Plated

GC22A

GC22A is a mechanical grounding connector designed for cable to water pipe connections, rated for 6 AWG to 250 kcmil conductors and 2-1/2" to 4" pipe sizes.GC22A features dual rating for both copper and aluminum conductors, providing maximum flexibility. It is tin-plated to reduce contact resistance and prevent galvanic corrosion. The connector is UL467 listed and suitable for use with copper water pipe, galvanized pipe, or steel conduit. It includes a hexagonal bolt screw type with a recommended installation torque of 240 in-lbs and is made from aluminum alloy with steel screws.

Key Specifications
• Conductor Size Range: 6 AWG to 250 kcmil
• Pipe Size Range: 2-1/2" to 4"
• Material: Aluminum alloy body, steel screws
• Plating: Tin-plated for corrosion resistance
• Voltage Rating: Maximum 600 V
• UL Listing: UL467
• Installation Torque: 240 in-lbs recommended
• Screw Type: Hexagonal bolt
• Type: GC-A, Dual Rated for Al/Cu
• RoHS Compliant
• UPC: 781810240021

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GC22A
• Manufacturer : Burndy
• Brand : Burndy

Product Data

• UPC : 781810240021
• GTIN : 00781810240021
• Country of Origin : United States
• Weight : 0.5
• Certification : UL Listed, UL467
