GB34W - Burndy Mechanical Grounding Connector, 300-500 kcmil, Cable to 1/4 Inch Bar, Tin Plated

GB34W

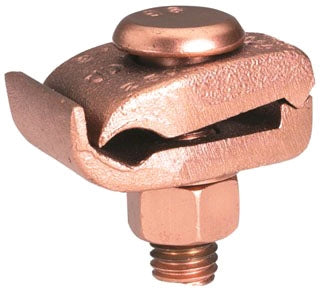

GB34W is a Burndy mechanical grounding connector designed for joining 300 to 500 kcmil copper stranded cable to a 1/4 inch thick bar with a tin-plated finish.GB34W features a high copper alloy cast body with a 1/2 inch hexagonal DURIUM silicon bronze bolt for secure, corrosion-resistant connections. It supports one-wrench installation with a recommended torque of 480 in-lbs and is CSA certified meeting UL467 standards. The connector measures approximately 2.31 inches wide by 2.57 inches high and is suitable for direct burial in concrete or ground applications.

Key Specifications
• Conductor Size Range: 300 to 500 kcmil copper stranded
• Bar Thickness: 1/4 inch
• Material: High copper alloy with tin plating
• Bolt Type: 1/2 inch hexagonal DURIUM silicon bronze
• Installation: One-wrench, recommended torque 480 in-lbs
• Dimensions: 2.31 in width x 2.57 in height
• Certifications: CSA certified, UL467 compliant
• Suitable for direct burial in concrete or ground

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GB34W
• Manufacturer : Burndy
• Brand : Burndy

Product Data

• Weight : 0.5
