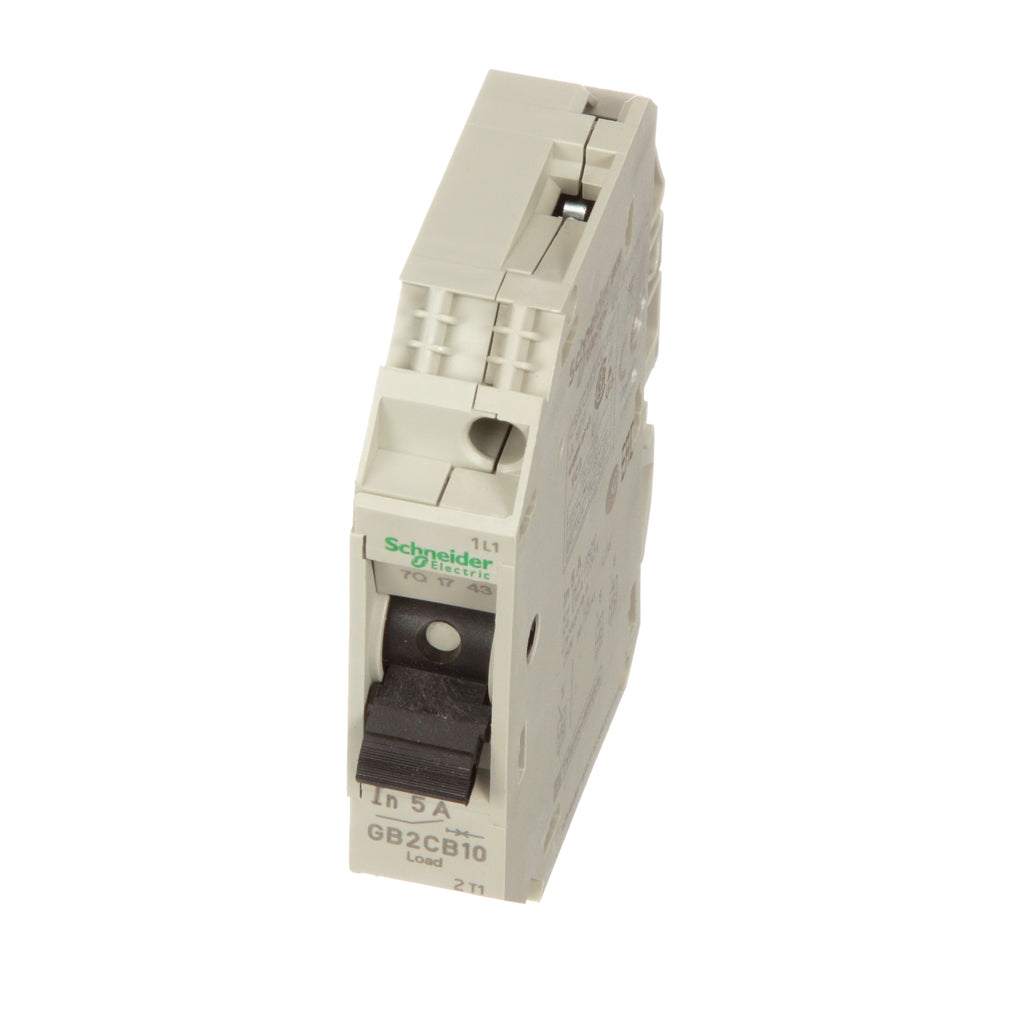

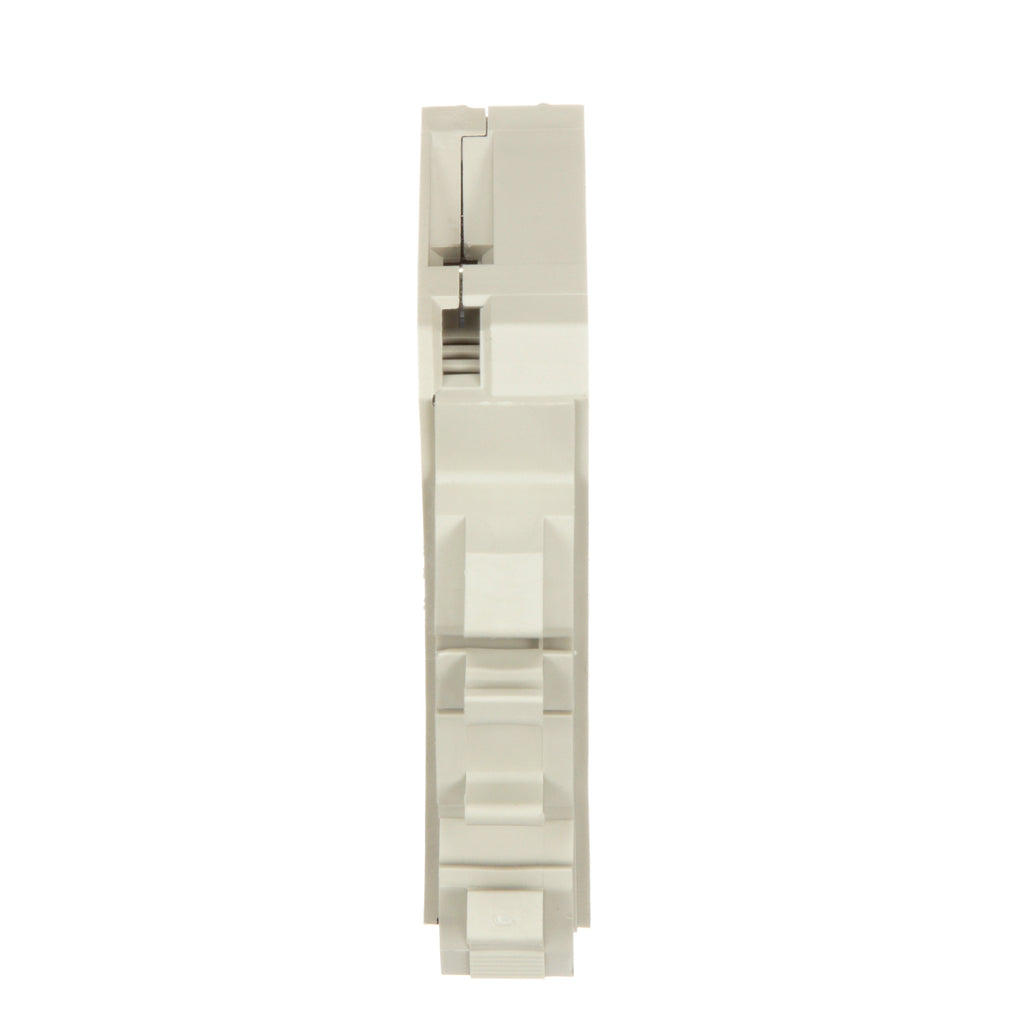

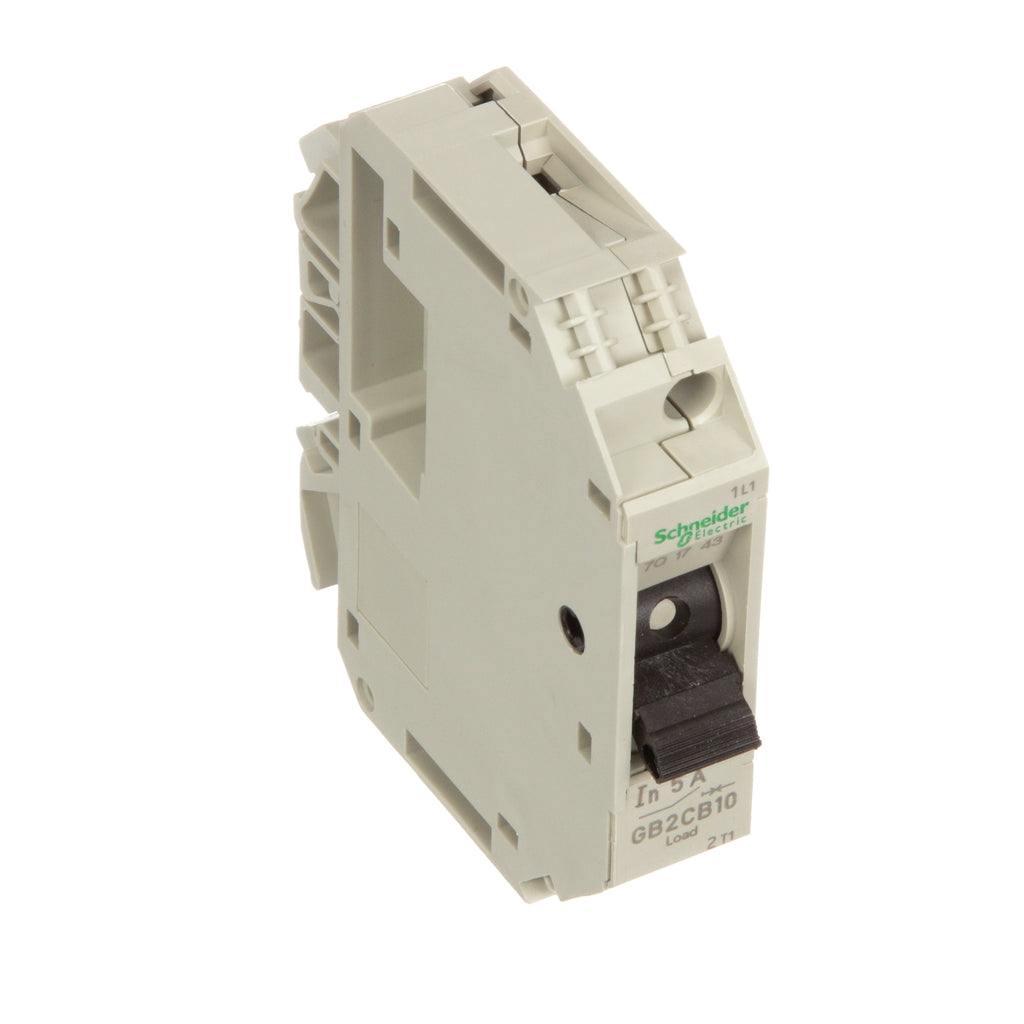

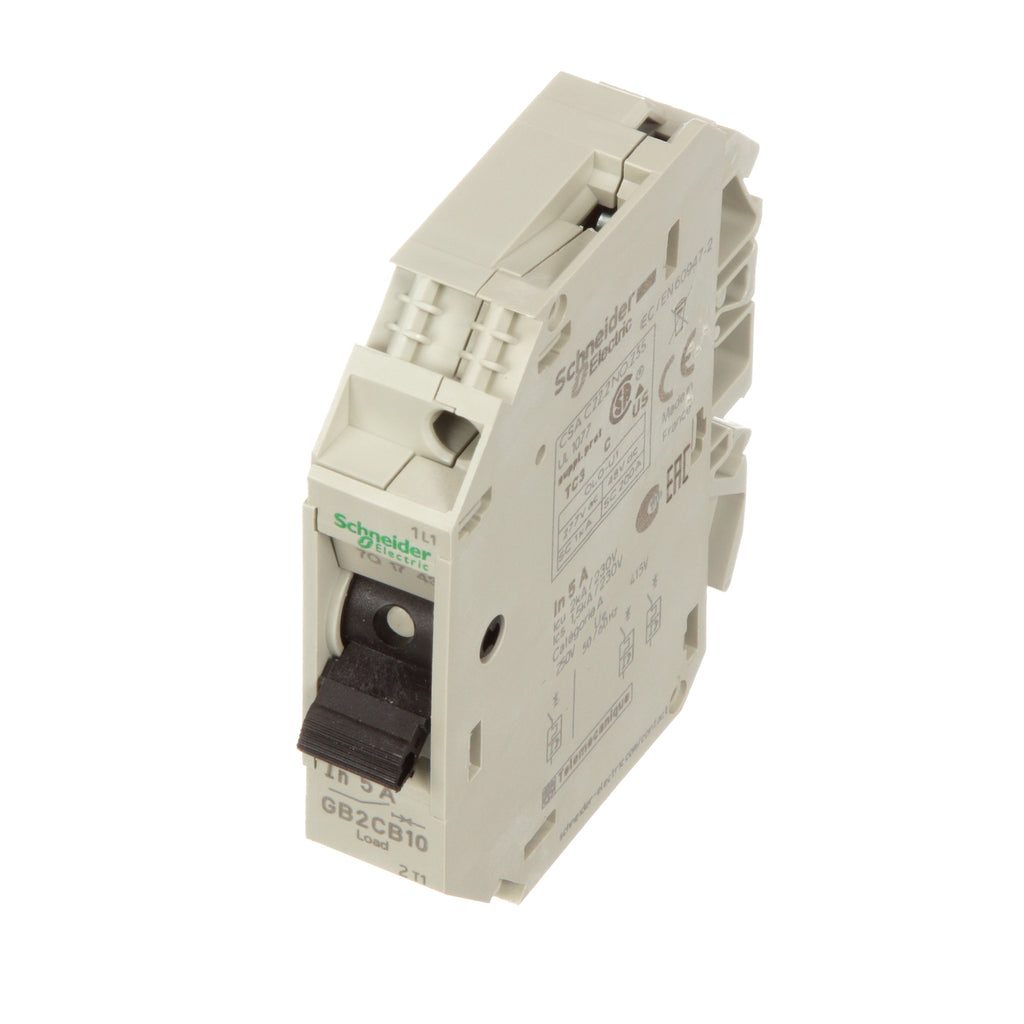

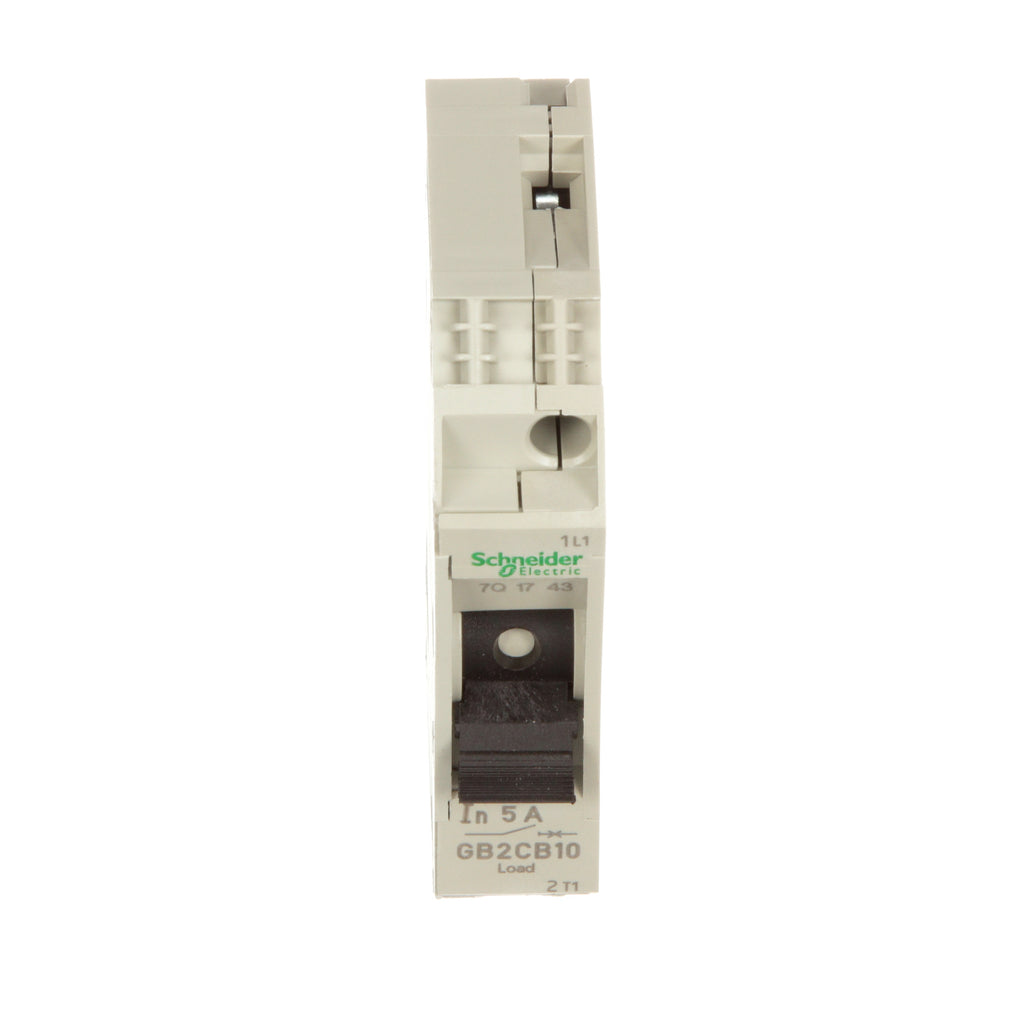

GB2CB10 - Square D 5A 1P Thermal-Magnetic Circuit Breaker, 300V, DIN Rail Mount, TeSys GB2 Series

GB2CB10

GB2CB10 is a Square D TeSys GB2 thermal-magnetic circuit breaker designed for reliable control circuit protection.This 1-pole circuit breaker features a 5 ampere rating and supports both AC and DC network types. It offers a breaking capacity (Icu) of 2 kA at 240V AC and 1 kA at 48V DC, with a magnetic tripping level of 66A. The device mounts easily on 35mm symmetric DIN rails or Telequick mounting plates and complies with IEC 60947-2 standards. It is tamper-proof and environmentally conscious with recyclable packaging.

Key Specifications
• Amperage: 5 A
• Voltage: 300 V AC
• Poles: 1P (single pole)
• Mounting Type: DIN Rail (35mm symmetric rails)
• Interrupt Rating (Icu): 2 kA at 240V AC, 1 kA at 48V DC
• Series/Frame: TeSys GB2
• Trip Unit: Thermal-magnetic
• Network Type: AC/DC
• Standards: IEC 60947-2, IEC 60947-5-1
• Frequency: 50/60 Hz
• Environmental: Recyclable packaging, carbon footprint 3 kg CO2 eq

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GB2CB10
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 277
• Amperage : 5
• Phase : 1
• Poles : 1
• AIC rating : 3kA@110V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 038911021463
• GTIN : 00389110214638
• Country of Origin : France
• Dimensions : 2.9 in (74 mm) x 0.6 in (15 mm) x 2.6 in (67 mm) (Height x Width x Depth)
• Weight : 0.117
• Standards : EN/IEC 60947-1, EN/IEC 60947-2, CSA C22.2 No 235, UL 1077
• Certification : CSA, IEC, UL
