Product Info
- Manufacturer:Burndy
Description
GB26W

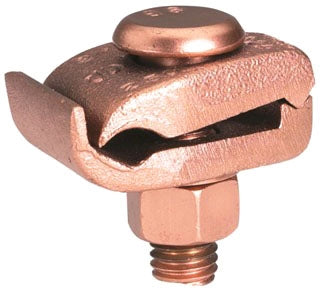

GB26W is a high copper alloy mechanical grounding connector designed for joining copper cable to a 1/4" thick bar in demanding environments. This connector features a tin-plated finish for enhanced corrosion resistance and is suitable for both solid and stranded copper conductors ranging from 4 AWG solid to 2/0 AWG stranded. The GB26W uses a 3/8" hexagonal DURIUM™ silicon bronze bolt for secure, one-wrench installation with a recommended torque of 240 in-lbs. It is rated for direct burial and meets UL467 standards for grounding applications.
- Part Number: GB26W
- Manufacturer: Burndy
- Type: Mechanical Grounding Connector
- Application: Cable to 1/4" Bar
- Conductor Size: 4 AWG Solid to 2/0 AWG Stranded
- Material: High Copper Alloy
- Finish: Tin Plated
- Bolt Type: 3/8" Hexagonal DURIUM™ Silicon Bronze
- Installation: One-Wrench
- Recommended Torque: 240 in-lbs
- Standards: UL467 Listed
- Mounting: Direct Burial Rated
Specifications
- Part Number: GB26W
- Manufacturer : Burndy
- Brand : Burndy
Product Data
- UPC : 7818102469933
- GTIN : 0781810246993
- Weight : 0.5
