Description
GAF185-10-11-72

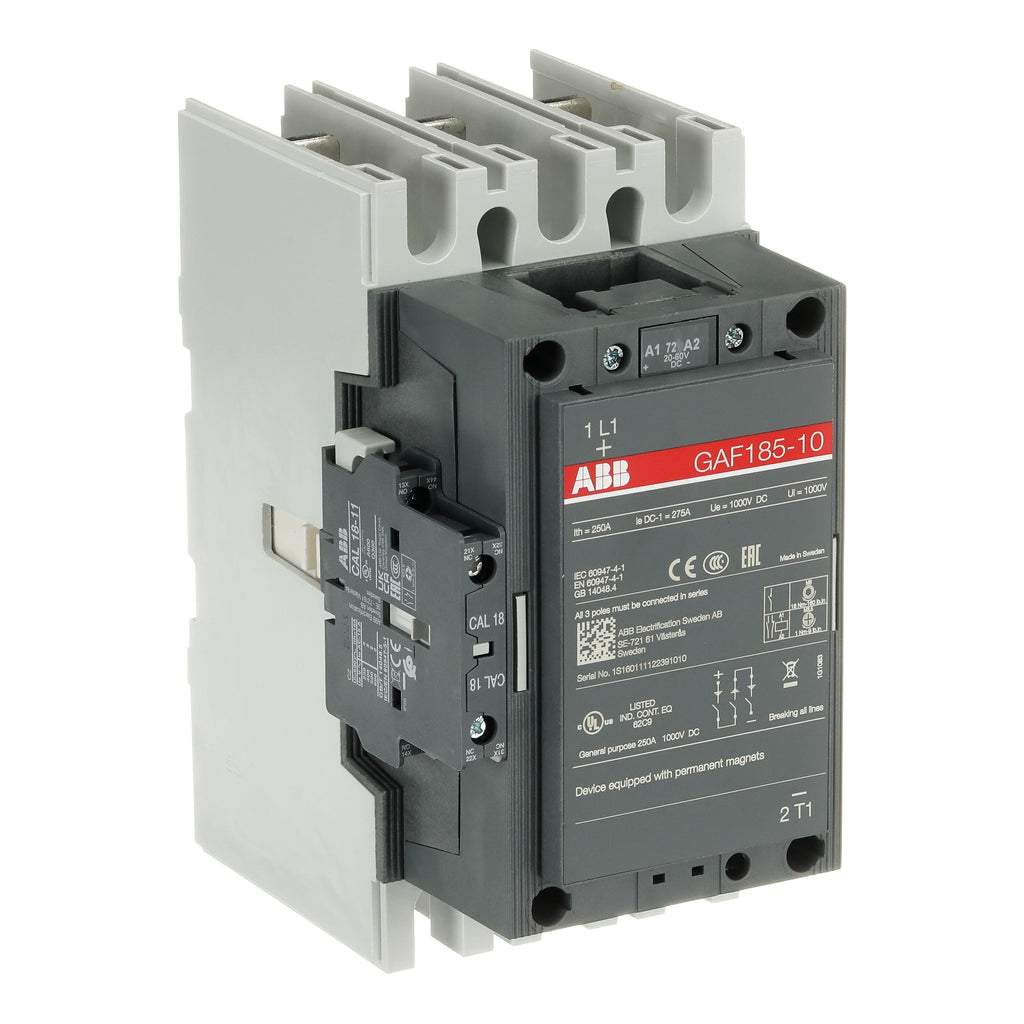

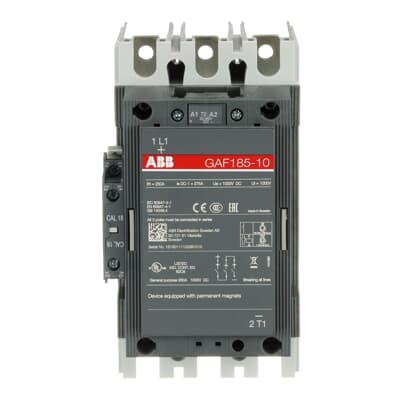

GAF185-10-11-72 is an ABB 3-pole DC contactor designed for reliable switching in motor control applications.This IEC contactor operates with a 20 to 60 VDC coil voltage and supports a maximum load current of 250 A. It features a 3-pole configuration with 1 normally open (NO) contact and 1 NO-1 normally closed (NC) auxiliary contact. The device includes double connection screw terminals and is rated for up to 5,000,000 operating cycles. It is suitable for DC-1 applications up to 1000 VDC, with an operating temperature range from -40 to 70 degrees Celsius. The enclosure rating options include IP00 and IP20.
- Manufacturer: ABB
- Part Number: GAF185-10-11-72
- Poles: 3
- Maximum Load Current: 250 A
- Coil Voltage: 20-60 VDC
- Contact Configuration: 1 NO main contact, 1 NO-1 NC auxiliary contacts
- Connection Type: Double connection screw terminals
- Operating Cycles: 5,000,000
- Operating Temperature: -40 to 70 °C
- Enclosure Rating: IP00/IP20
- Application: DC-1 up to 1000 VDC
Additional Information
This includes a 20 VDC coil.
Specifications
- Part Number: GAF185-10-11-72
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Aux Contacts : 1 NO
- Frequency : 50 Hz
Product Data
- UPC : 32050038376
- GTIN : 07320500383766
- Dimensions : Depth / Length 160 mm X Height 196 mm X Width 111.5 mm
- Weight : 8
