Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

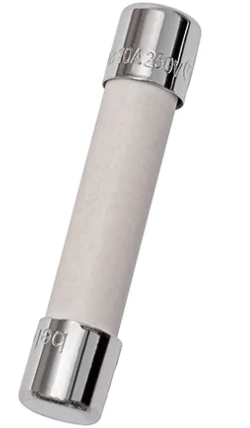

GAB1/2
GAB1/2 is a fast-acting ceramic fuse rated at 0.5 amps and 250 volts AC, designed for reliable circuit protection.This Eaton fuse features a 1/4 inch diameter by 1-1/4 inch length ceramic body with a ferrule terminal connection and clip mounting. It has an interrupting rating of 35 AIC at 250VAC and 10,000 AIC at 125VAC. The fuse is UL Listed and CSA Certified, suitable for electronic circuit applications requiring supplemental protection.
- Amperage: 0.5 A
- Voltage Rating: 250 VAC
- Fuse Type: Fast-Acting
- Body Material: Ceramic
- Dimensions: 1/4" diameter x 1-1/4" length
- Mounting Type: Clip
- Terminal Connection: Ferrule
- Interrupting Rating: 35 AIC @ 250VAC, 10,000 AIC @ 125VAC
- Fuse Class: Supplemental
- Certifications: UL Listed, CSA Certified
- Series: GAB
Specifications
- Part Number: GAB1/2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GAB
- Voltage : 250
- Amperage : 1
- AIC rating : 35A@250V
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
- Velocity : Fast Acting
Product Data
- UPC : 78200176004
- GTIN : 00782001760045
- Country of Origin : China
- Dimensions : x 1-1/2 in x
- Weight : 0.006
- Certification : UL, CSA
