Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD63S250A

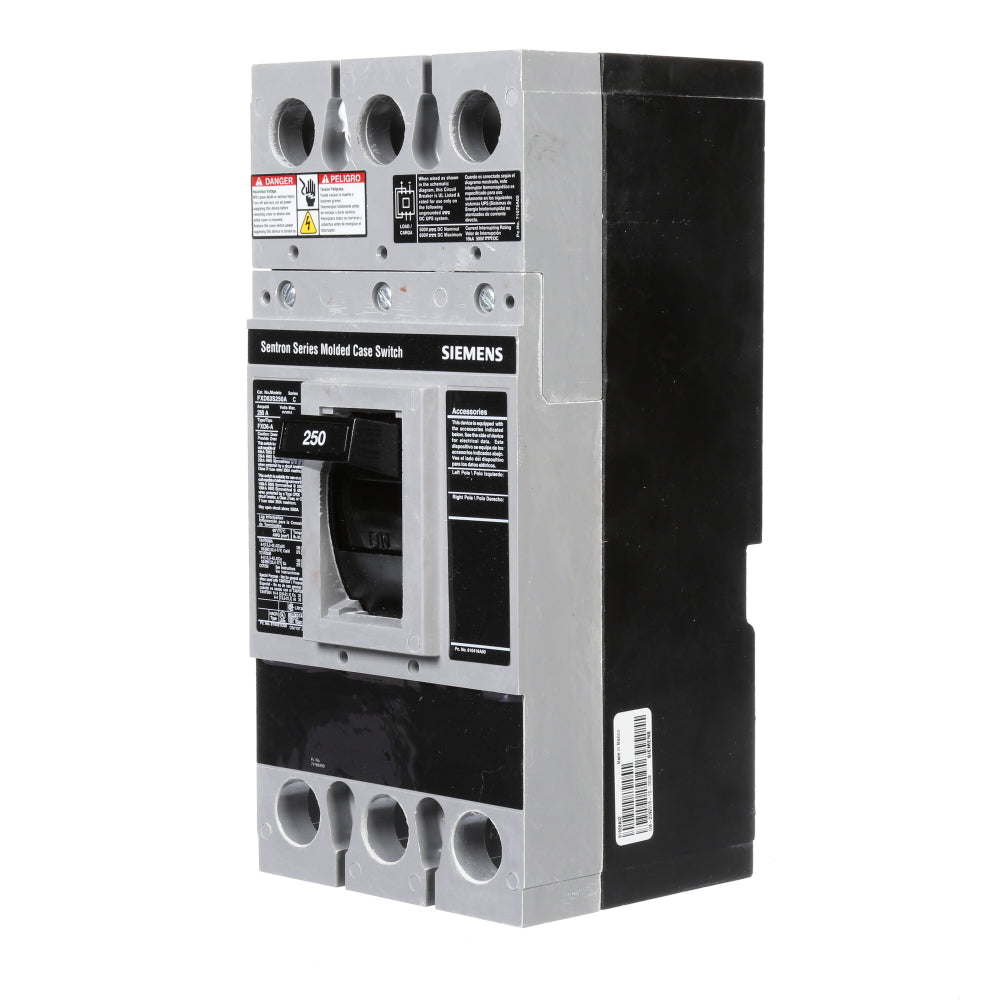

FXD63S250A is a Siemens 3-pole molded case circuit breaker rated at 250 Amps and 600 Volts.
This bolt-on FXD series breaker features a frame size of FXD6 and provides non-automatic magnetic trip protection with no overcurrent functions, suitable for low voltage applications.
Key Specifications
- Amperage: 250 A
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Series/Frame: FXD / FXD6
- Trip Unit: Magnetic (Frame Only)
- Interrupt Rating: 65 kA @ 240 VAC
- Interrupt Rating: 35 kA @ 480 VAC
- Interrupt Rating: 22 kA @ 600 VAC
- UPC: 783643212367
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: FXD63S250A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : NA - No Overcurrent Protection
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Non-Automatic
Product Data
- UPC : 783643212367
- GTIN : 00783643212367
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.812
- Certification : UL, CSA, IEC
