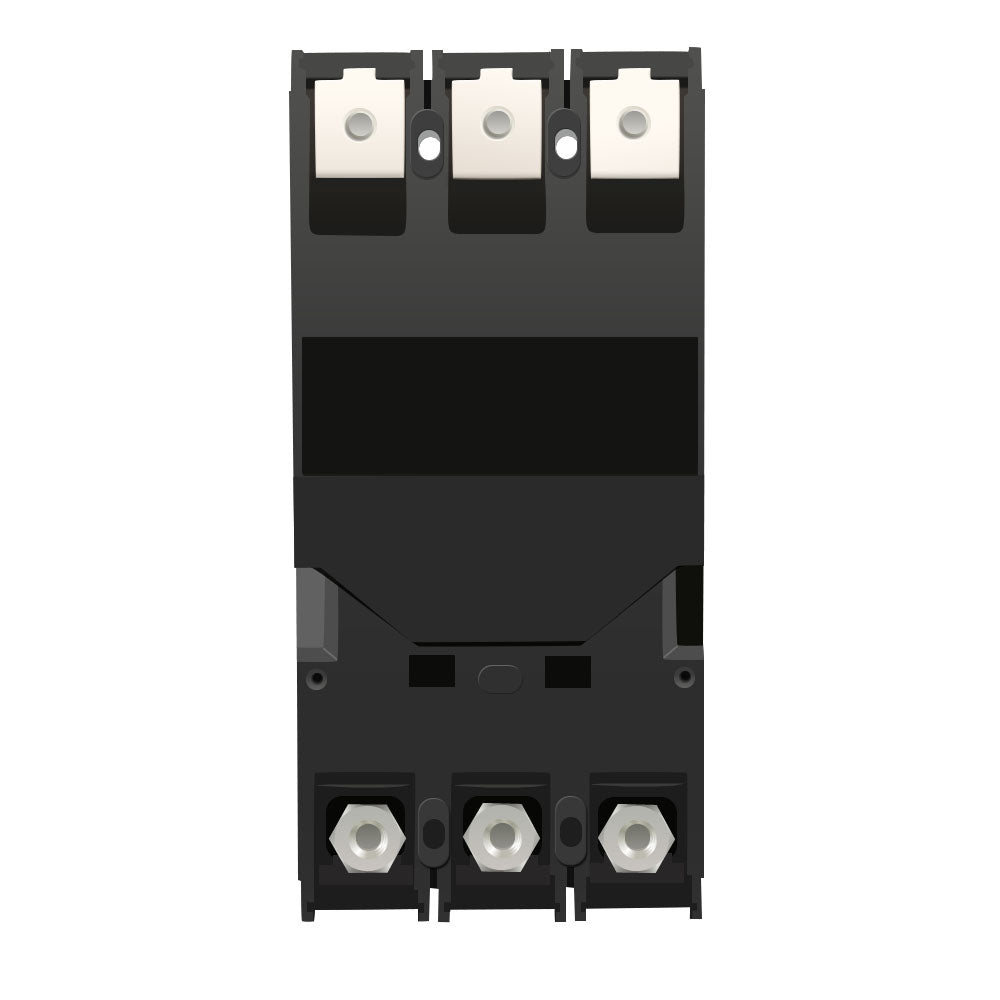

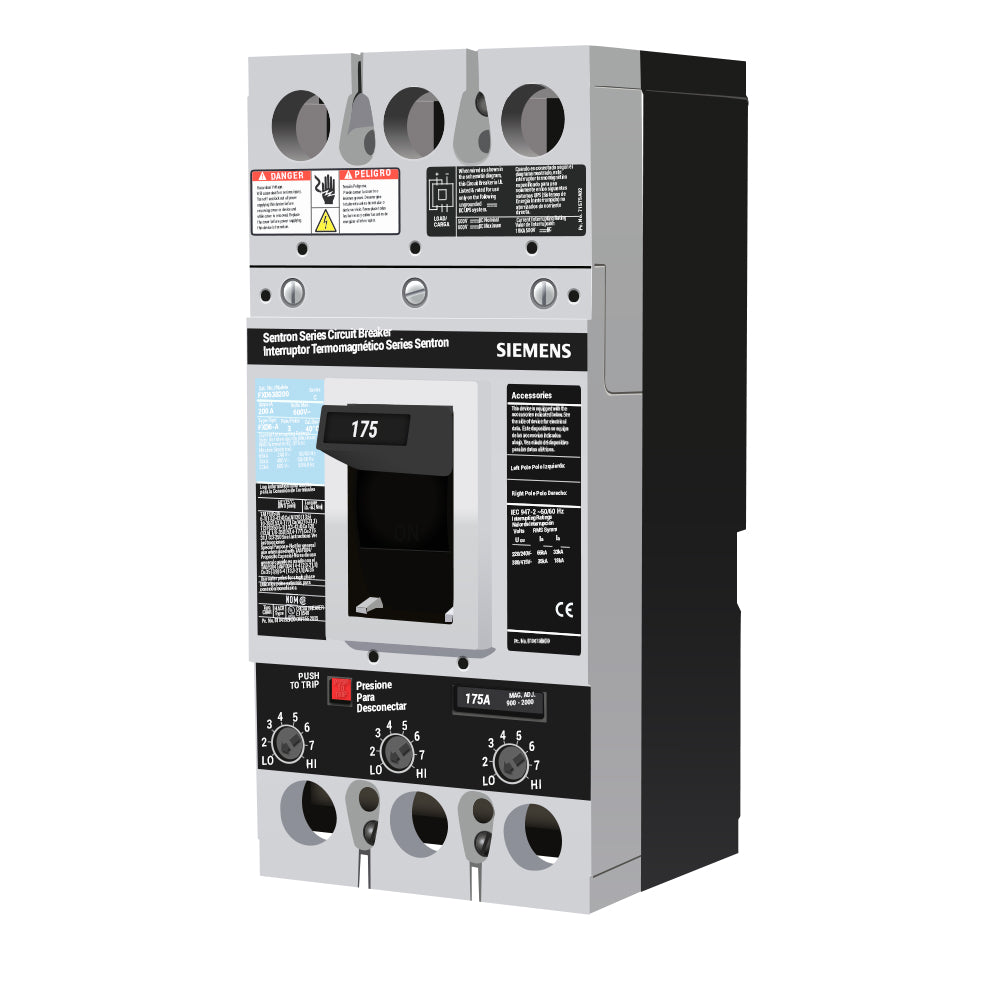

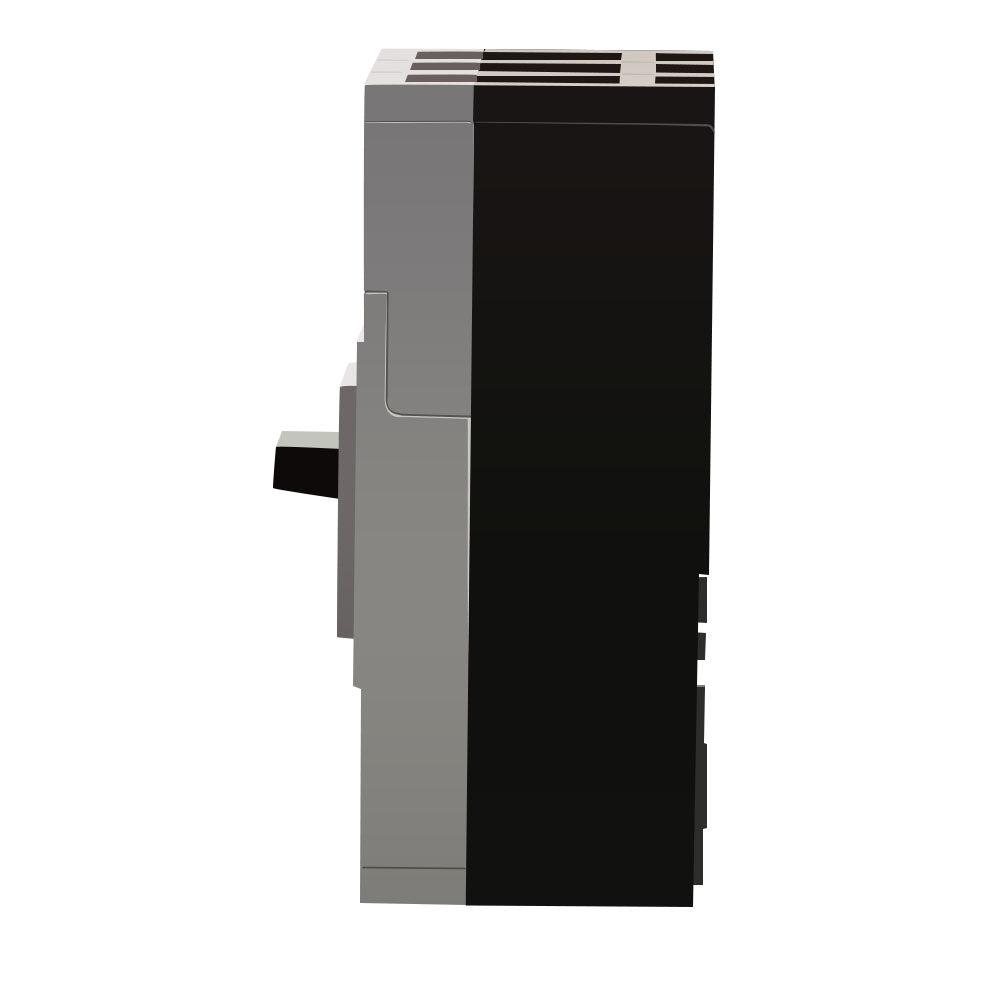

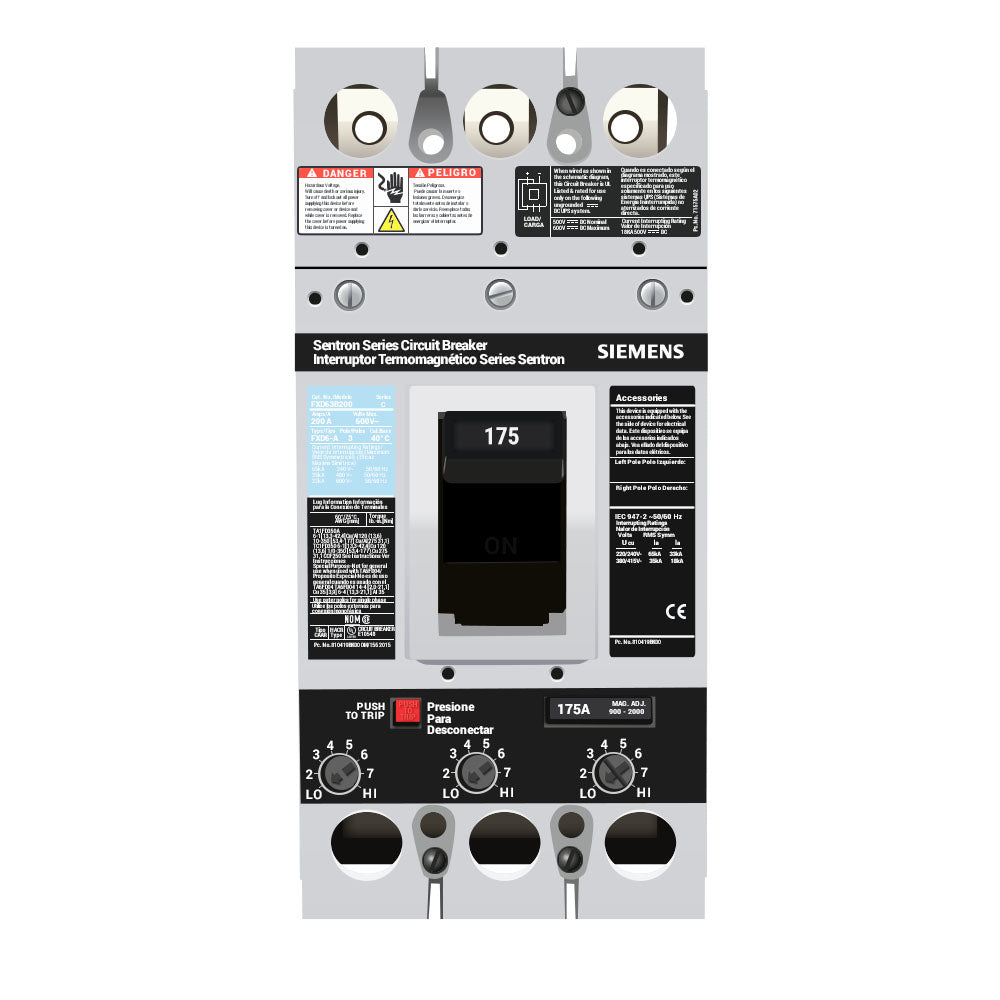

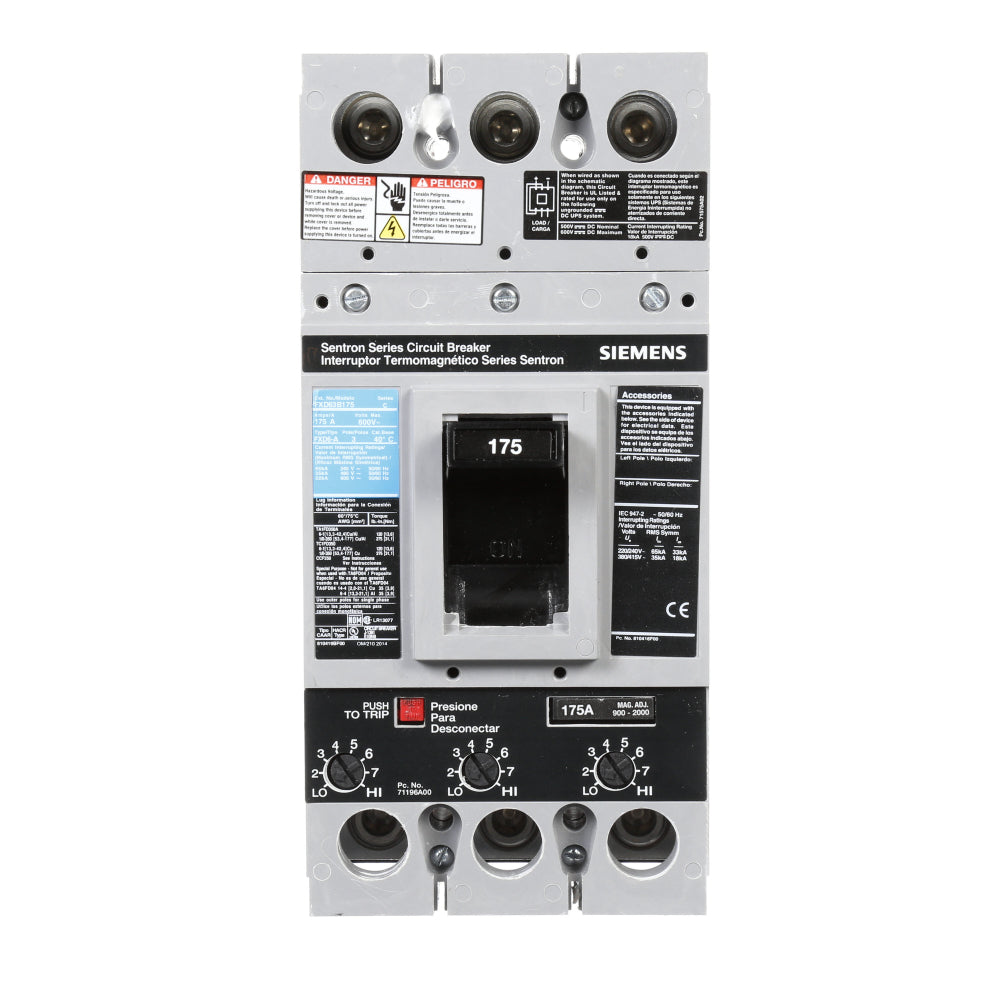

FXD63B175L - Siemens 175 Amp 600 Volt 3 Pole Molded Case Circuit Breaker with Thermal Magnetic Trip

FXD63B175L

FXD63B175L is a Siemens 3 pole molded case circuit breaker rated for 175 amps and 600 volts, featuring a thermal magnetic trip unit for reliable protection.This Siemens FXD series breaker offers a 35kA interrupting rating at 480V and 22kA at 600V, with line and load side lug terminals suitable for reverse fed applications. It is designed for bolt-on mounting and meets UL 489 and IEC 60947-2 standards, ensuring safety and performance in low voltage electrical distribution.

• Amperage: 175A
• Voltage Rating: 600V
• Poles: 3
• Interrupting Rating: 35kA @ 480V, 22kA @ 600V
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Series/Frame: FXD Sentron
• Line & Load Side Lug Terminals
• Standards: UL 489, IEC 60947-2
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: FXD63B175L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FXD
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643005945
• GTIN : 00783643005945
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
