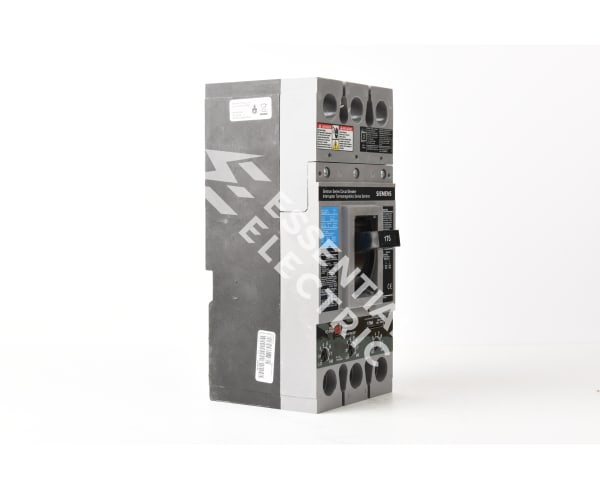

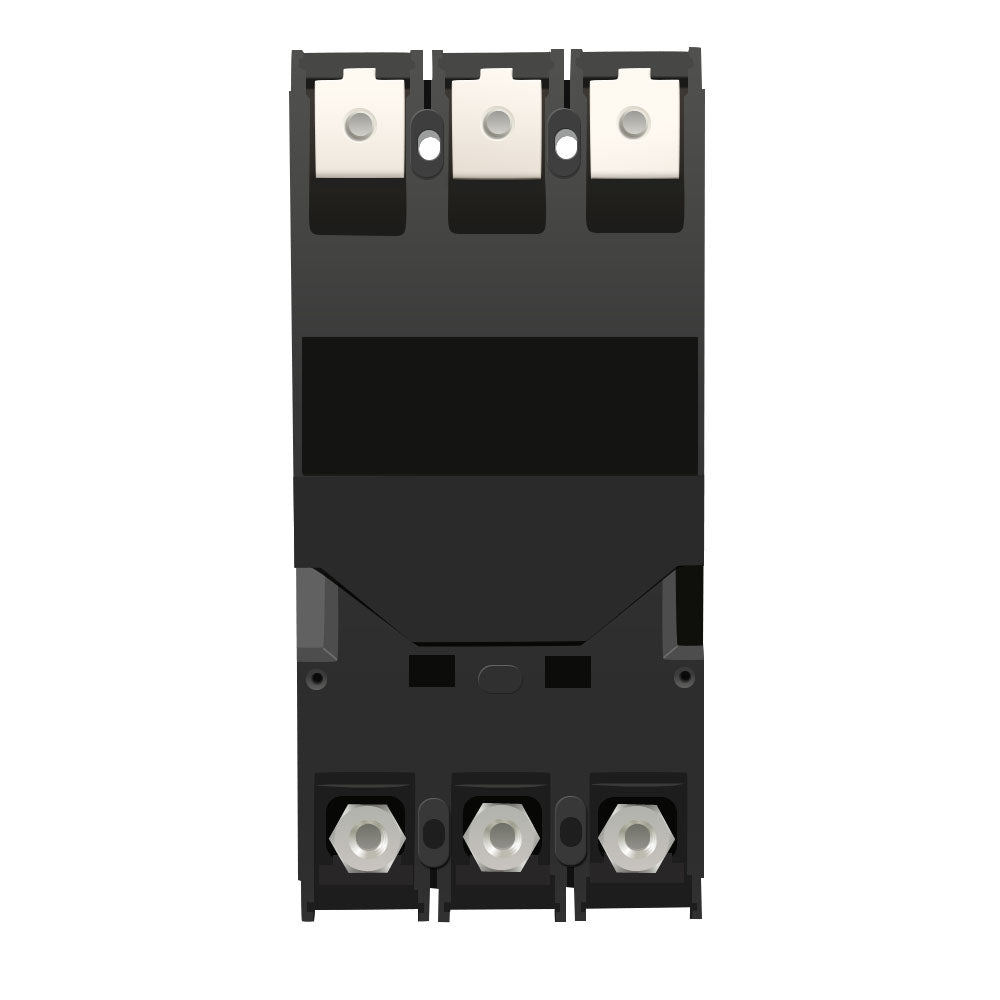

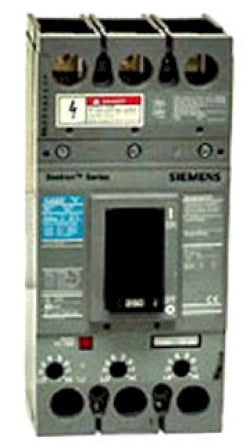

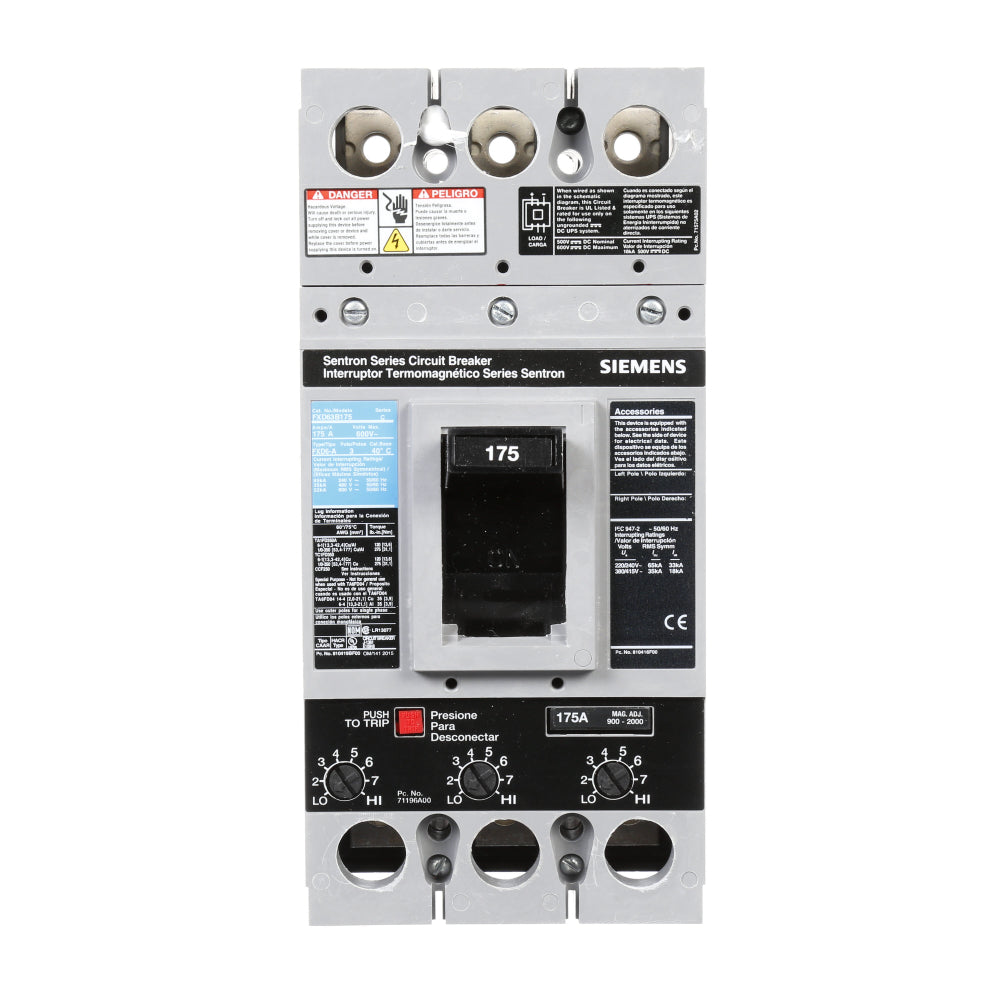

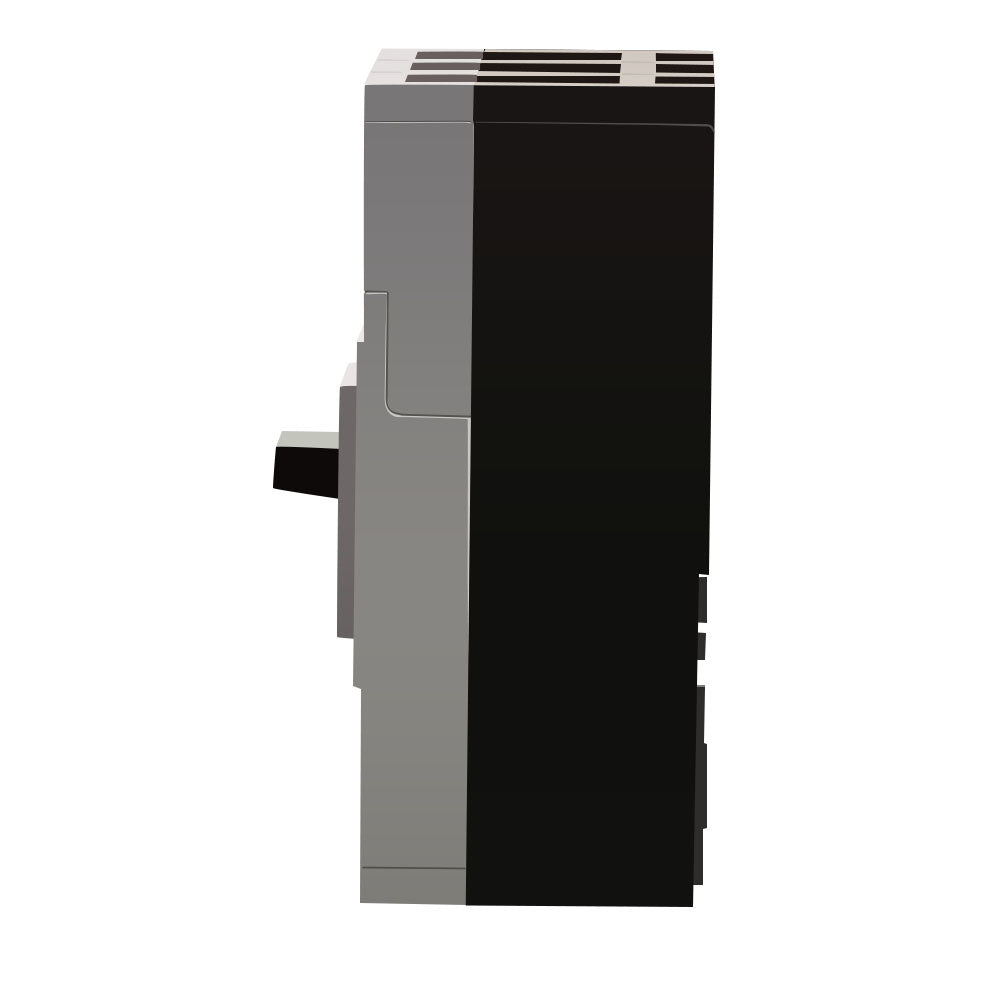

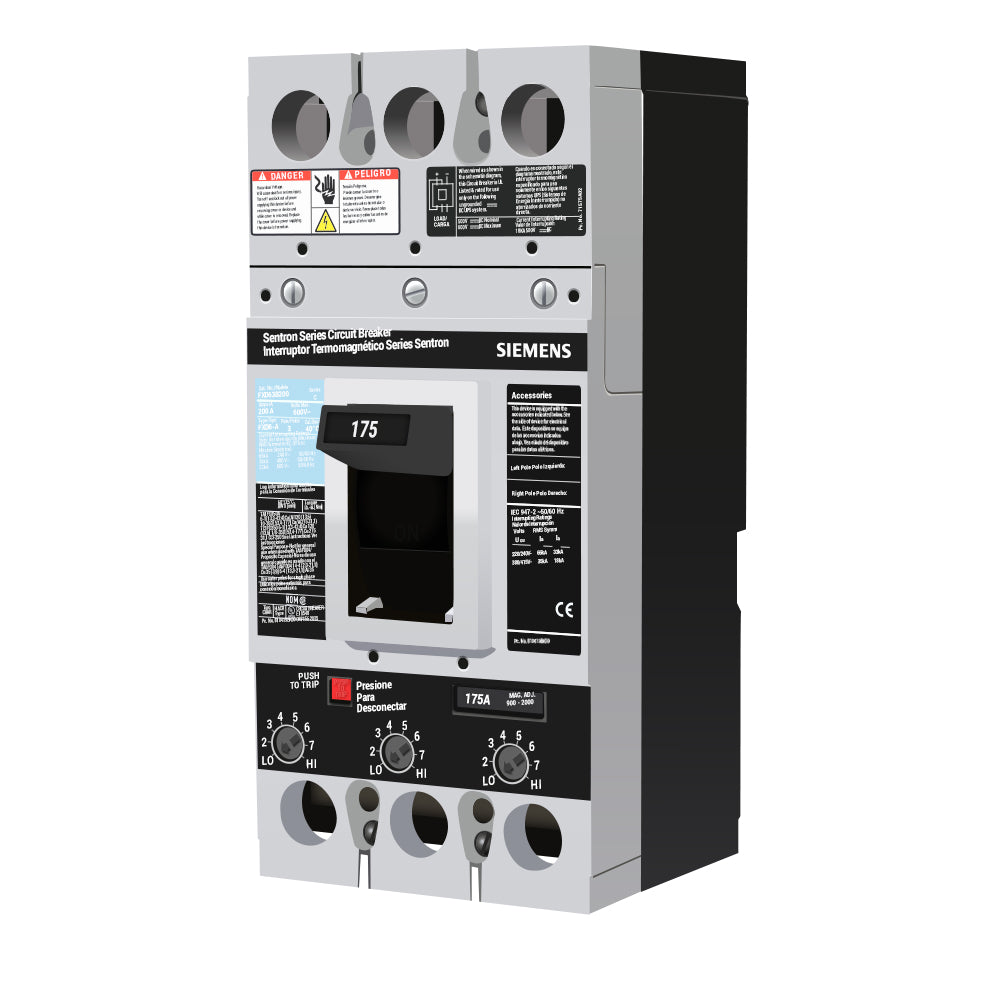

FXD63B175 - Siemens 175 Amp 600 Volt 3 Pole Circuit Breaker FXD Frame Bolt-On

FXD63B175

FXD63B175 is a Siemens 3-pole, 175 amp, 600 volt circuit breaker designed for reliable power distribution protection.This Siemens FXD63B175 circuit breaker features a thermal-magnetic trip unit, FXD frame type, and bolt-on mounting. It has a 22kA interrupt rating at 600V and 35kA at 480V, ensuring high fault current interruption capability. The breaker is rated for 175 amps and 3 poles, suitable for industrial and commercial applications requiring robust circuit protection.

Key Specifications
• Manufacturer: Siemens
• Part Number: FXD63B175
• Amperage: 175A
• Voltage: 600V
• Poles: 3
• Frame Type: FXD
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA at 600V, 35kA at 480V
• Trip Unit: Thermal-Magnetic
• Certification: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Lugs are not included and must be purchased separately




Specifications

• Part Number: FXD63B175
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FXD
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/FD
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 783643211261
• GTIN : 00783643211261
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 8.001
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Standards : UL Listed
• Certification : UL, CSA, IEC
