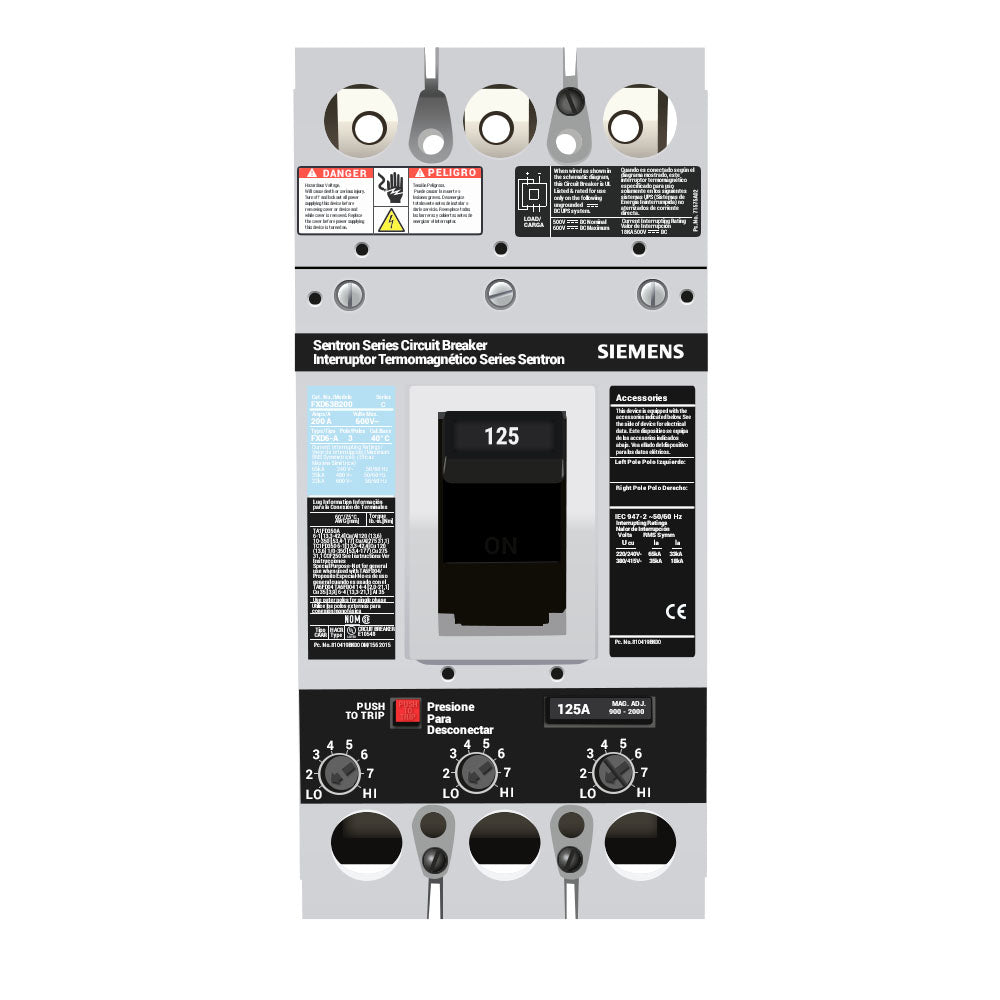

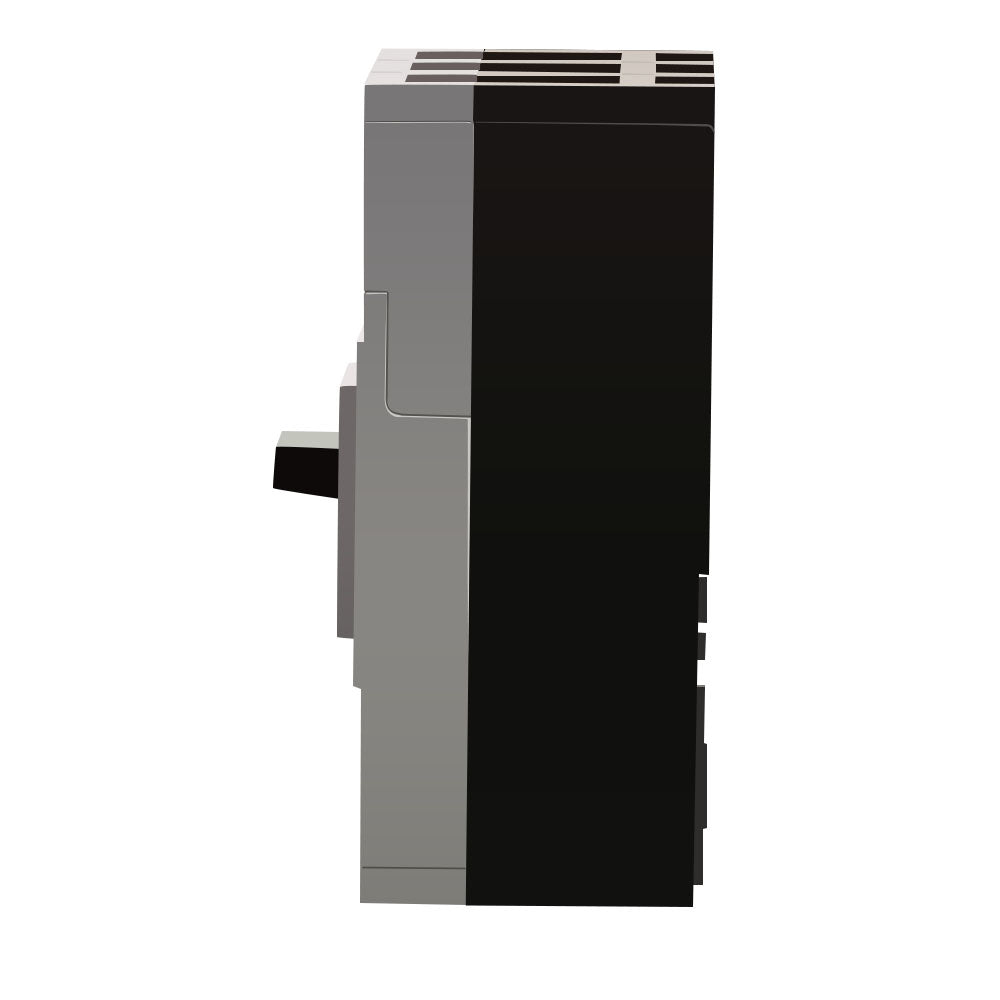

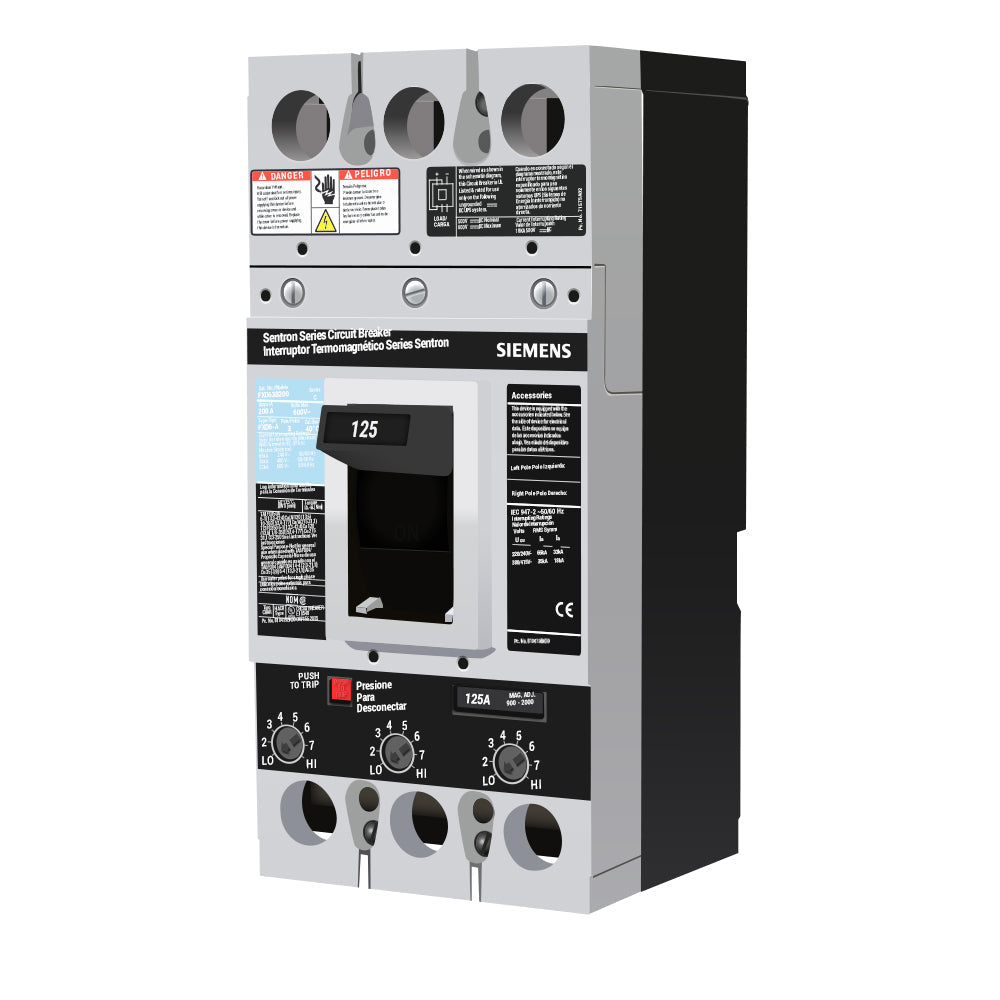

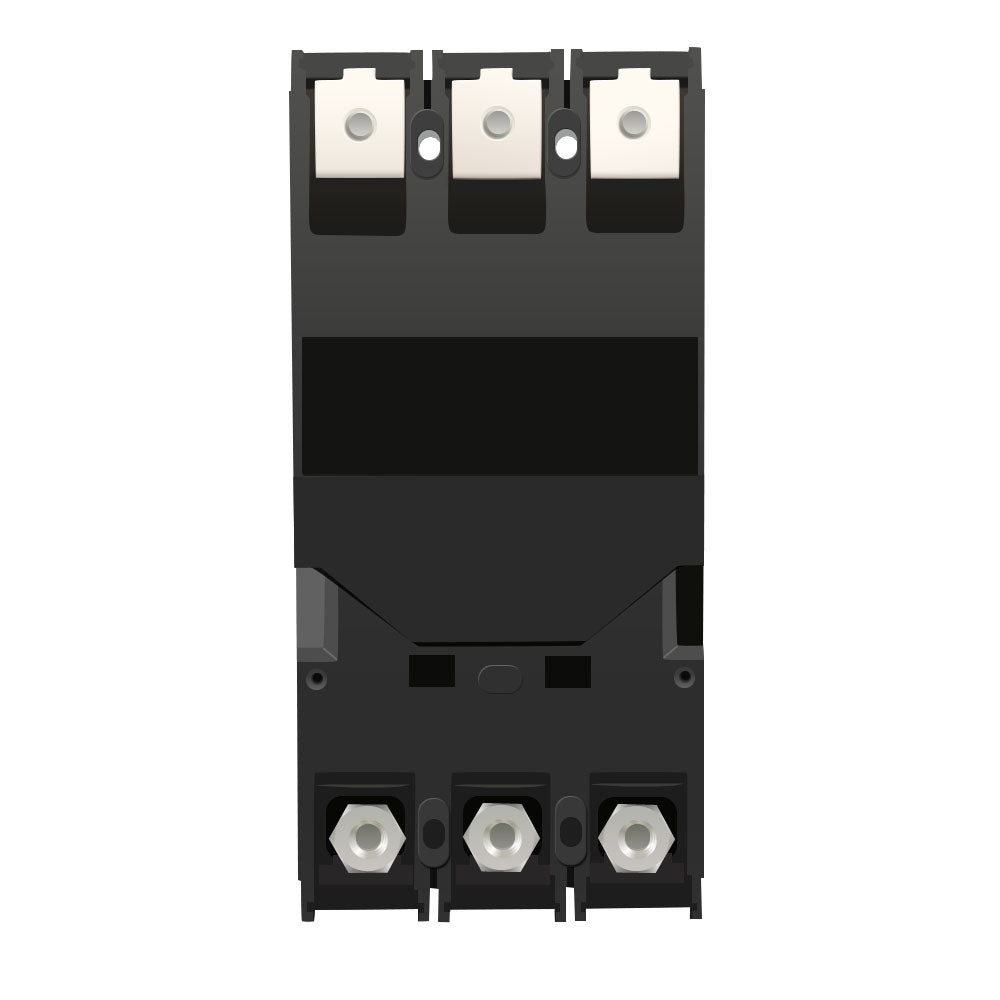

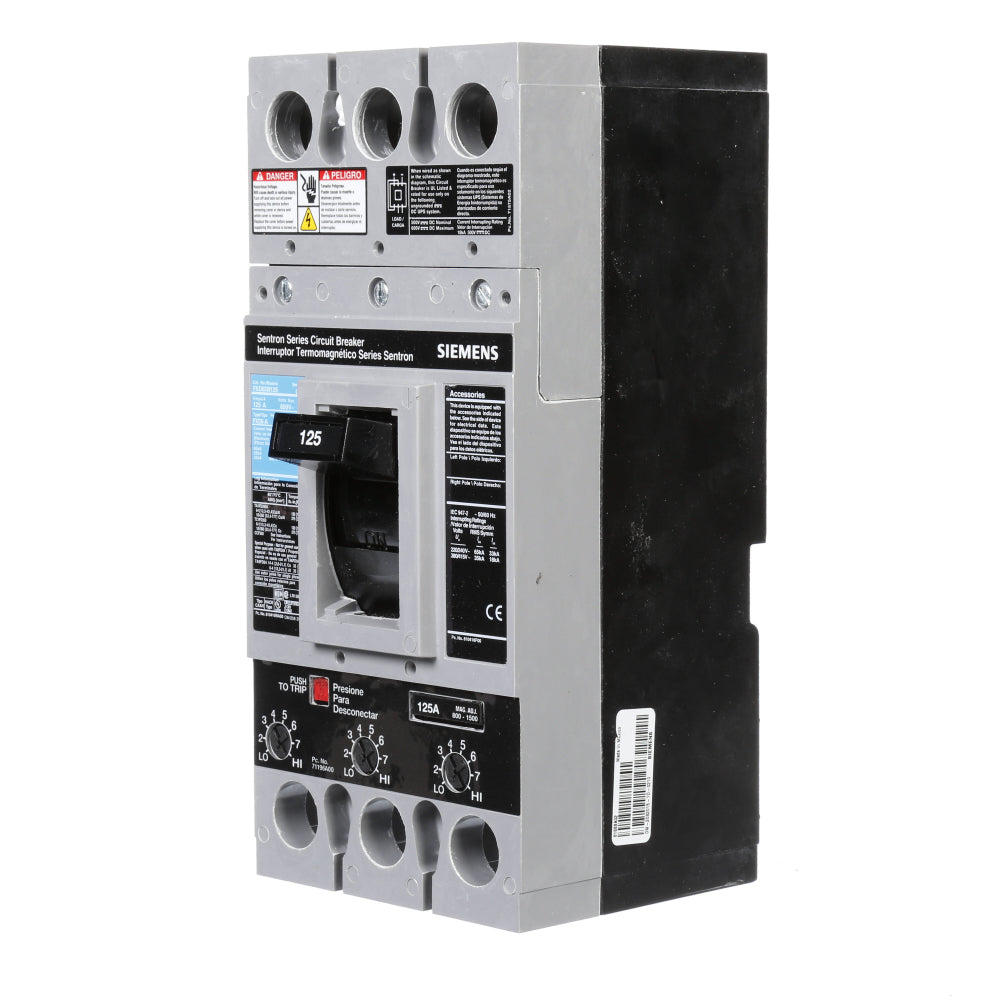

FXD63B125 - Siemens 125 Amp 600 Volt 3 Pole Bolt-On Molded Case Circuit Breaker

FXD63B125

FXD63B125 is a Siemens 3 pole, 125 amp, 600 volt bolt-on molded case circuit breaker designed for reliable thermal-magnetic protection.FXD63B125 features a Type FD frame with thermal-magnetic trip unit, suitable for 3-phase applications. It supports a voltage rating of 600 VAC and is UL listed and CSA certified for safety and performance. The breaker offers a standard interrupt rating of up to 22 kA at 600V and is designed for bolt-on mounting.

• Manufacturer: Siemens
• Part Number: FXD63B125
• Amperage: 125A
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA @ 600V
• Frame/Series: FD Frame (FXD Series)
• Trip Unit: Thermal Magnetic
• Phase: 3-Phase
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: FXD63B125
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FXD
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/FD
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643211247
• GTIN : 00783643211247
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 8.001
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Standards : UL Listed
• Certification : UL, CSA, IEC
