Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD63B110

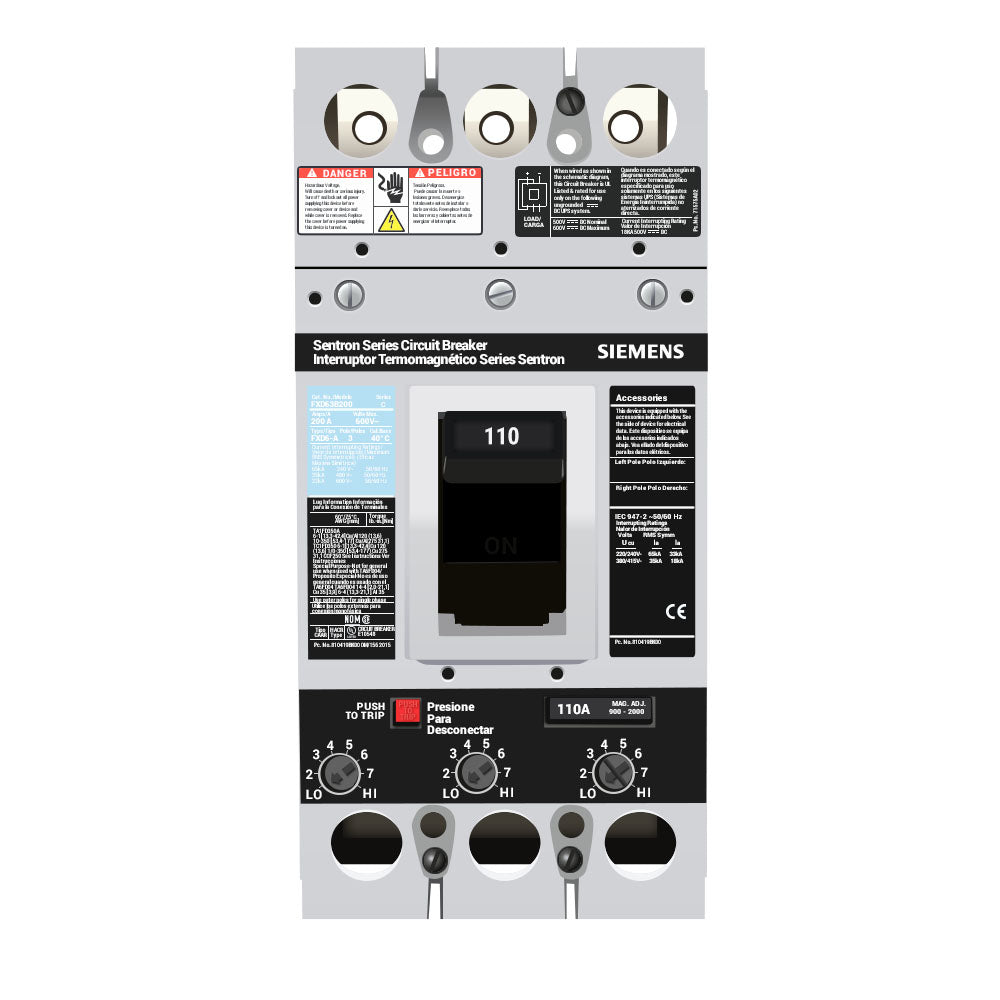

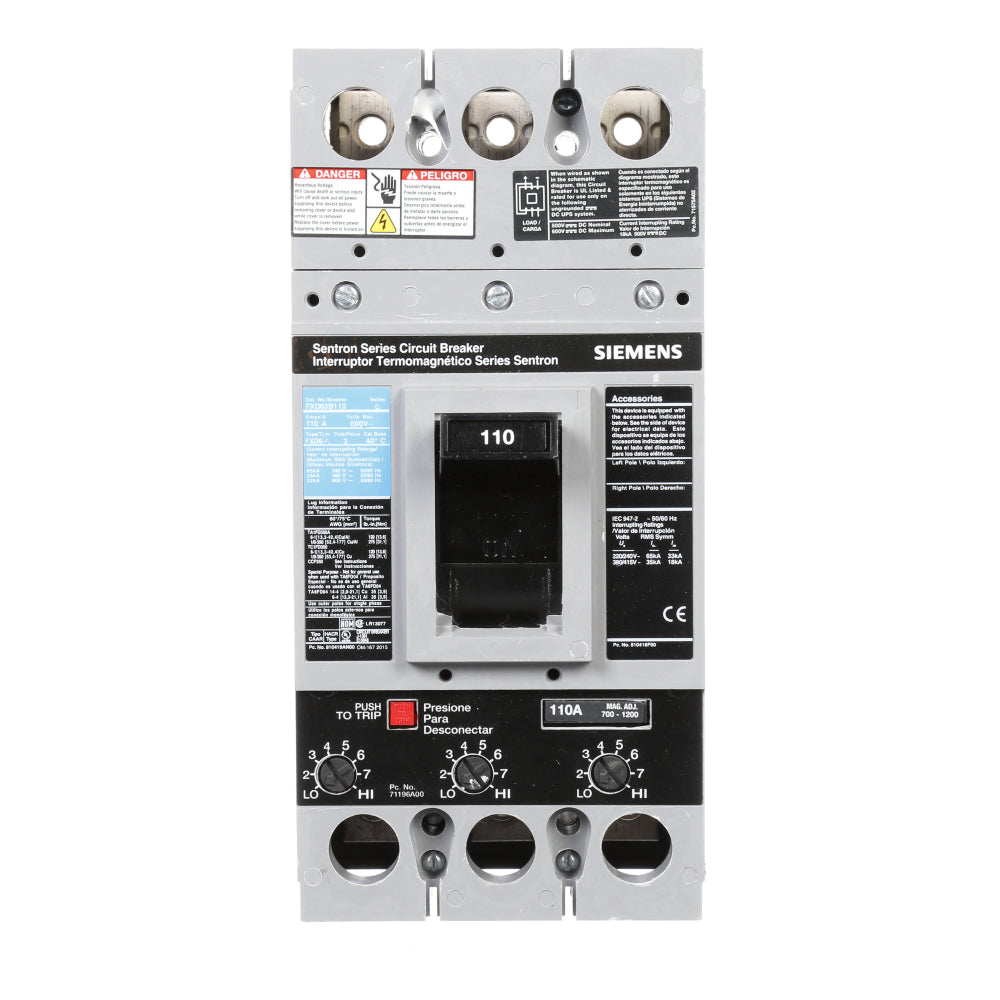

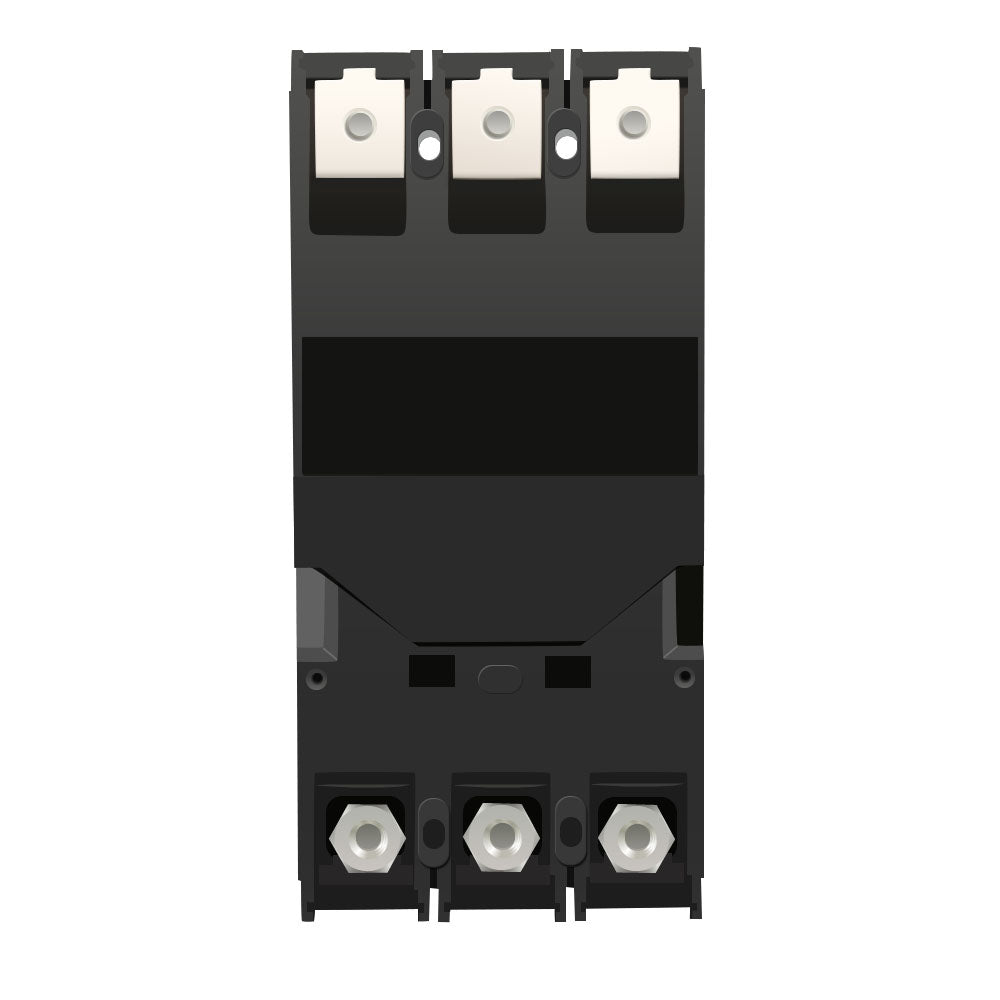

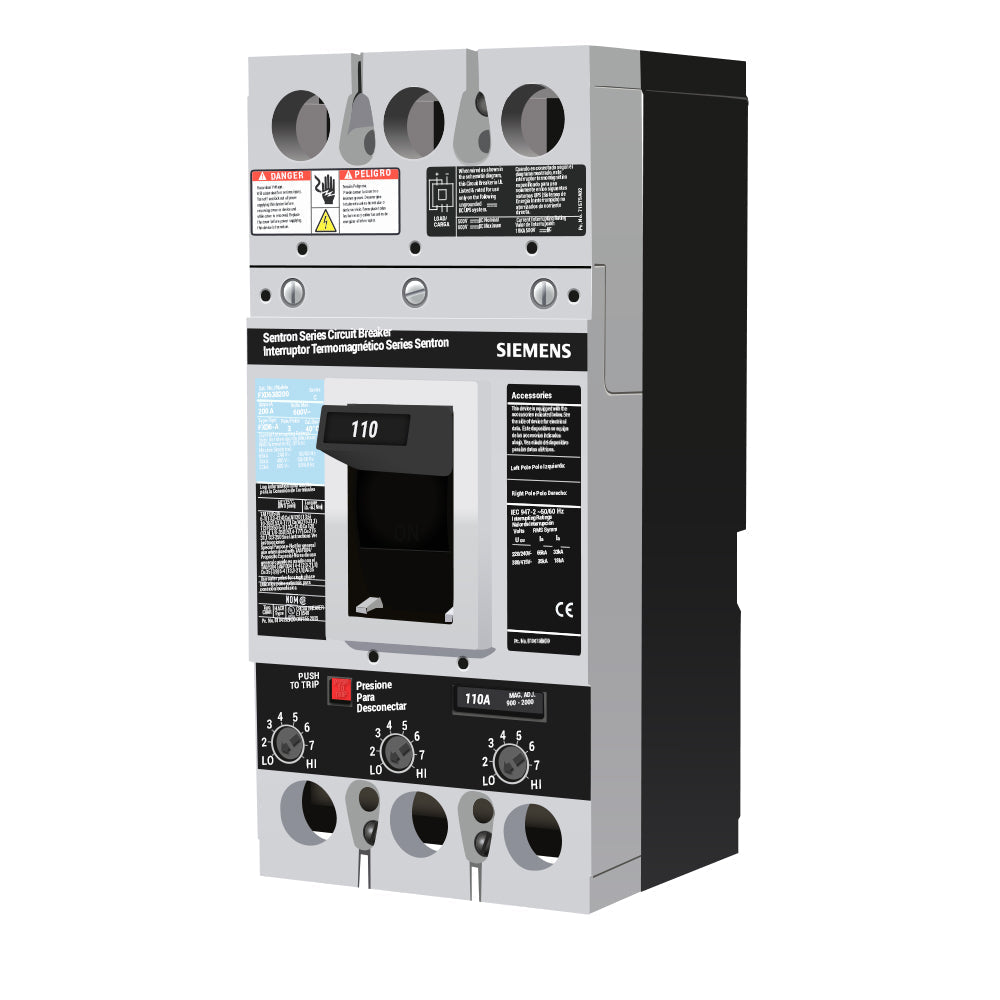

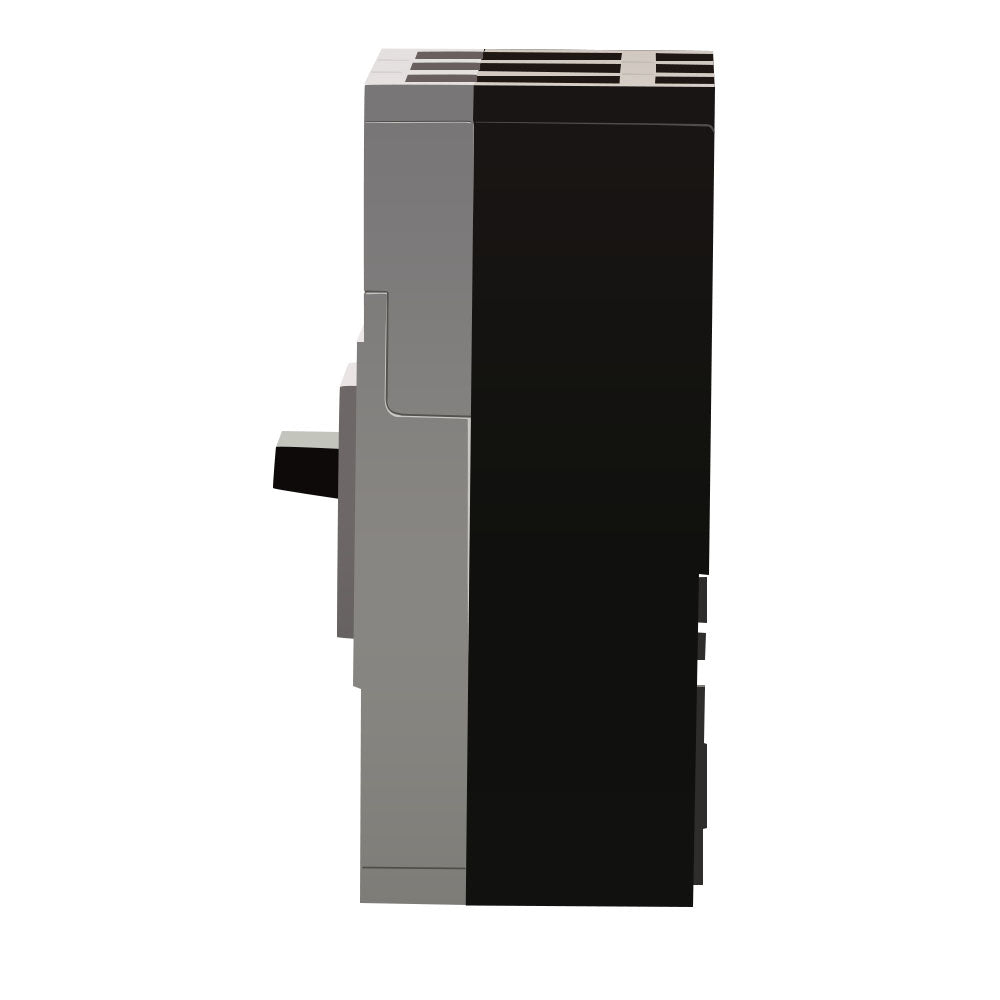

FXD63B110 - Siemens Sentron Series molded case circuit breaker, 3-pole, 110A, 600V, bolt-on mounting with thermal-magnetic protection.The FXD63B110 features an FD frame, non-interchangeable trip unit with long-time and instantaneous functions, standard breaking capacity rated at 35kA@480V and 22kA@600V, suitable for 40 degree C applications, and UL listed for reverse feed.
- Part Number: FXD63B110
- Manufacturer: Siemens
- Series/Frame: Sentron FXD / FD Frame
- Amperage: 110A
- Voltage: 600V
- Poles: 3
- Phase: 3
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic, LI (Long-Time/Instantaneous)
- Interrupt Rating: 35kA@480V, 22kA@600V
- Certifications: UL Listed, CSA Certified
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: FXD63B110
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211230
- GTIN : 00783643211230
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 7.899
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, CSA, IEC
