Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD62B250

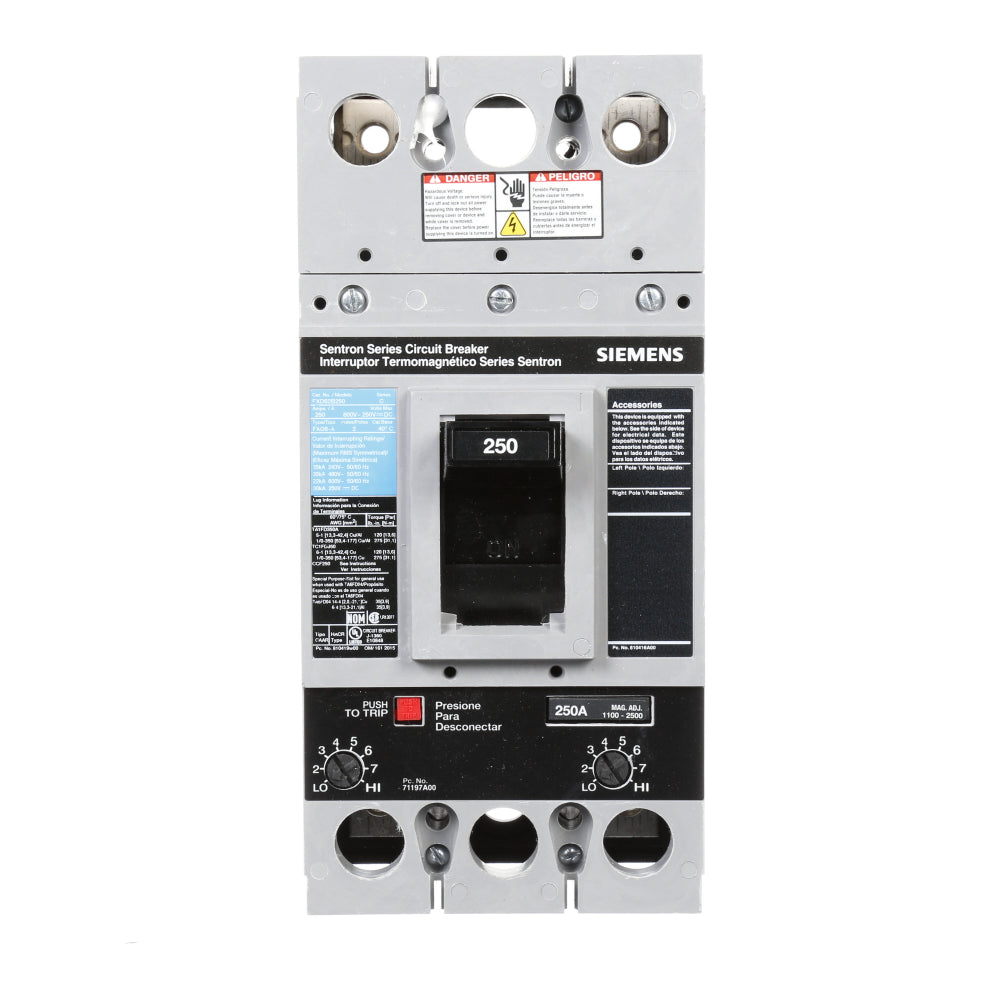

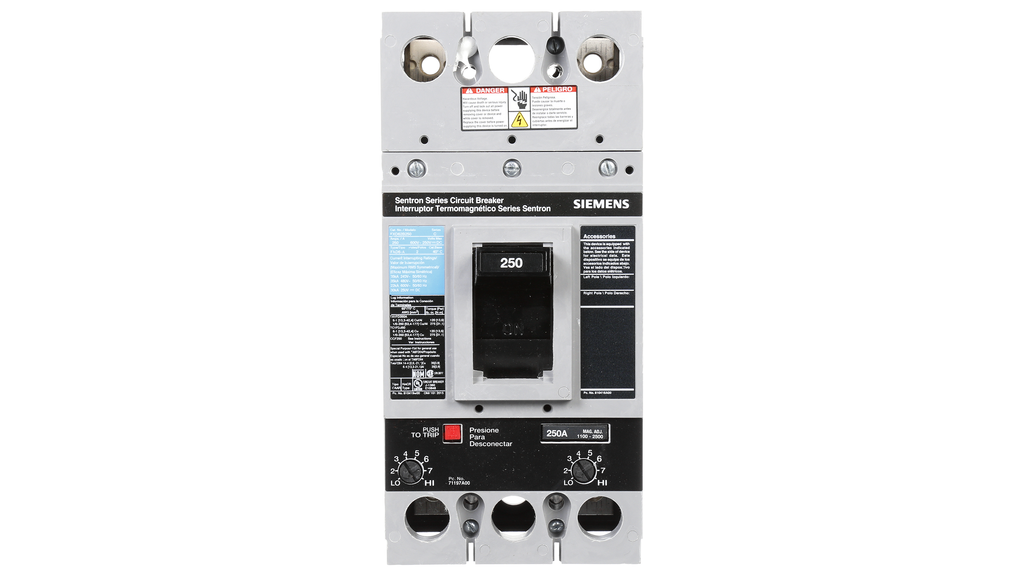

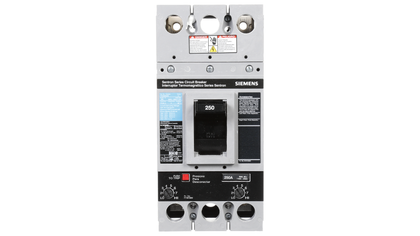

FXD62B250 is a Siemens Sentron Series molded case circuit breaker designed for reliable overcurrent protection in low voltage applications.This 2-pole thermal-magnetic breaker from the FXD6 series features a 250A rating, 600VAC maximum voltage, bolt-on mounting, and non-interchangeable LI trip unit. It meets UL 489 and IEC 60947-2 standards with standard interrupting capacity rated at 35kA@480V.
- Part Number: FXD62B250
- Manufacturer: Siemens
- Series/Frame: FXD6 (FD Frame)
- Amperage: 250A
- Poles: 2
- Voltage: 600VAC
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic (LI - Long-Time/Instantaneous)
- Interrupt Rating: 35kA@480V
- Connection: Load Side Lug Terminals
- Calibrated: 40 Degrees C
Specifications
- Part Number: FXD62B250
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 250A/FD
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783643211186
- GTIN : 00783643211186
- Country of Origin : Mexico
- Dimensions : 4.5 in x 9.5 in
- Weight : 7.101
- Panel Type : SB Switchboards Without Lugs, Sentron Panelboards
- Standards : UL Listed
- Certification : UL, CSA, IEC
