FXD62B225

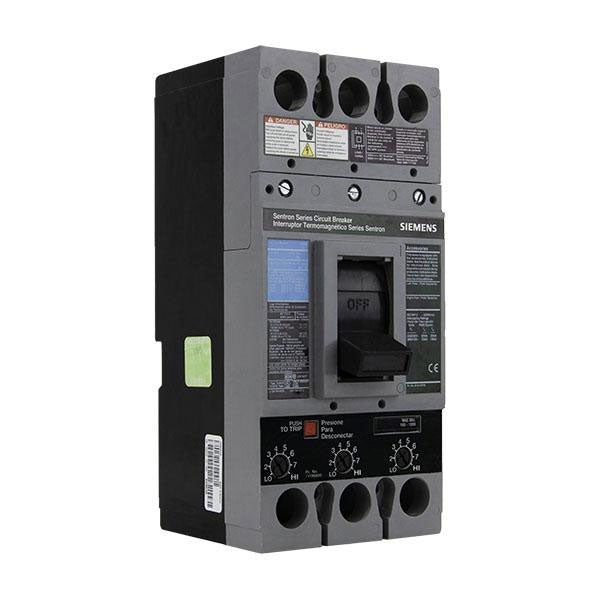

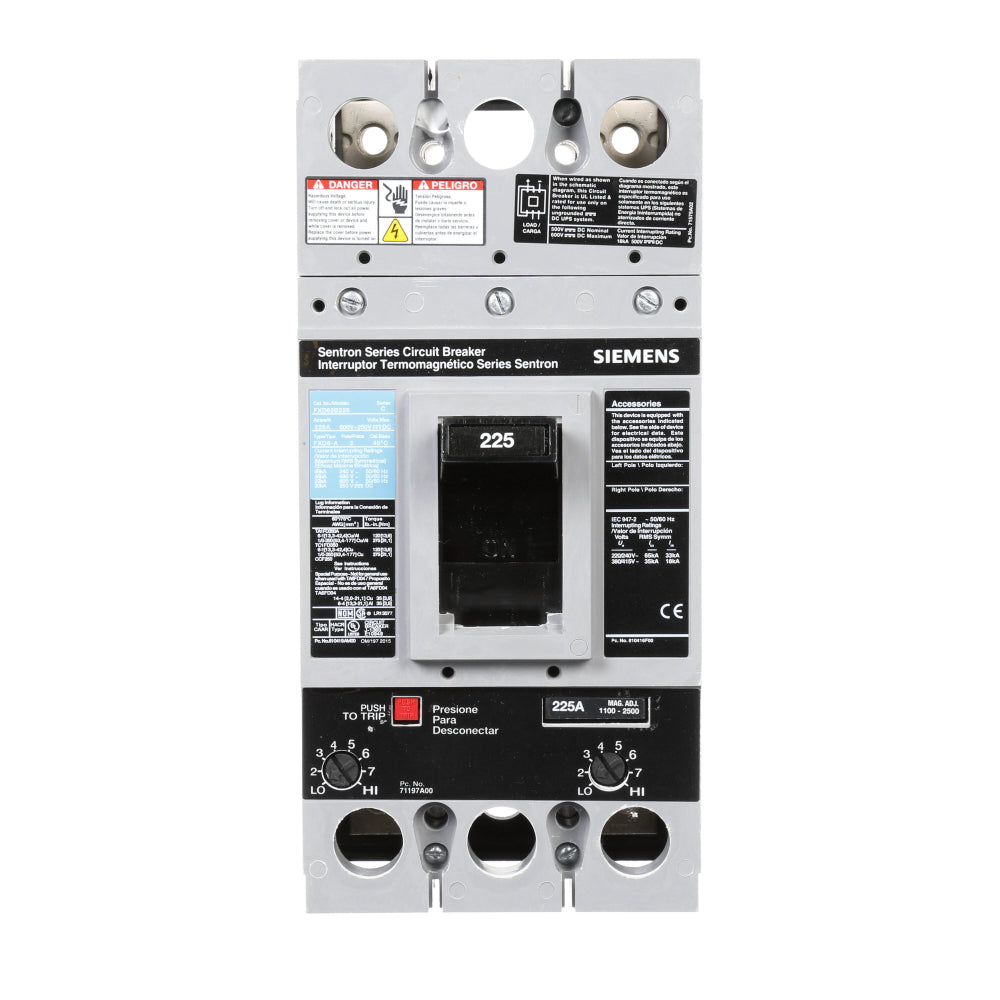

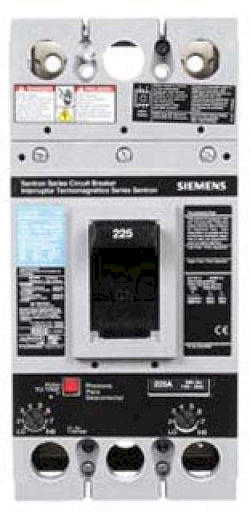

FXD62B225 is a Siemens 2 pole molded case circuit breaker with a 225 amp rating and 600 volt capacity designed for industrial and commercial applications.
This Siemens FXD62B225 breaker features a thermal magnetic trip unit with a bolt-on mounting type and FD frame series. It provides a standard interrupt rating of 22kA at 600V and 35kA at 480V, meeting UL 489 and IEC 60947-2 certifications. The breaker is rated for 40 degree C ambient temperature and is UL listed for reverse fed applications.
- Key Specifications
- Amperage: 225 Amps
- Voltage: 600 Volts AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA at 600V, 35kA at 480V
- Series/Frame: FD Frame
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Certifications: UL 489, IEC 60947-2
- Ambient Temperature Rating: 40¡C
- Part Number: FXD62B225
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
- UPC : 783643211179
- GTIN : 00783643211179
- Country of Origin : Mexico
- Weight : 7.2
- Certification : UL, CSA, IEC
