Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD62B175

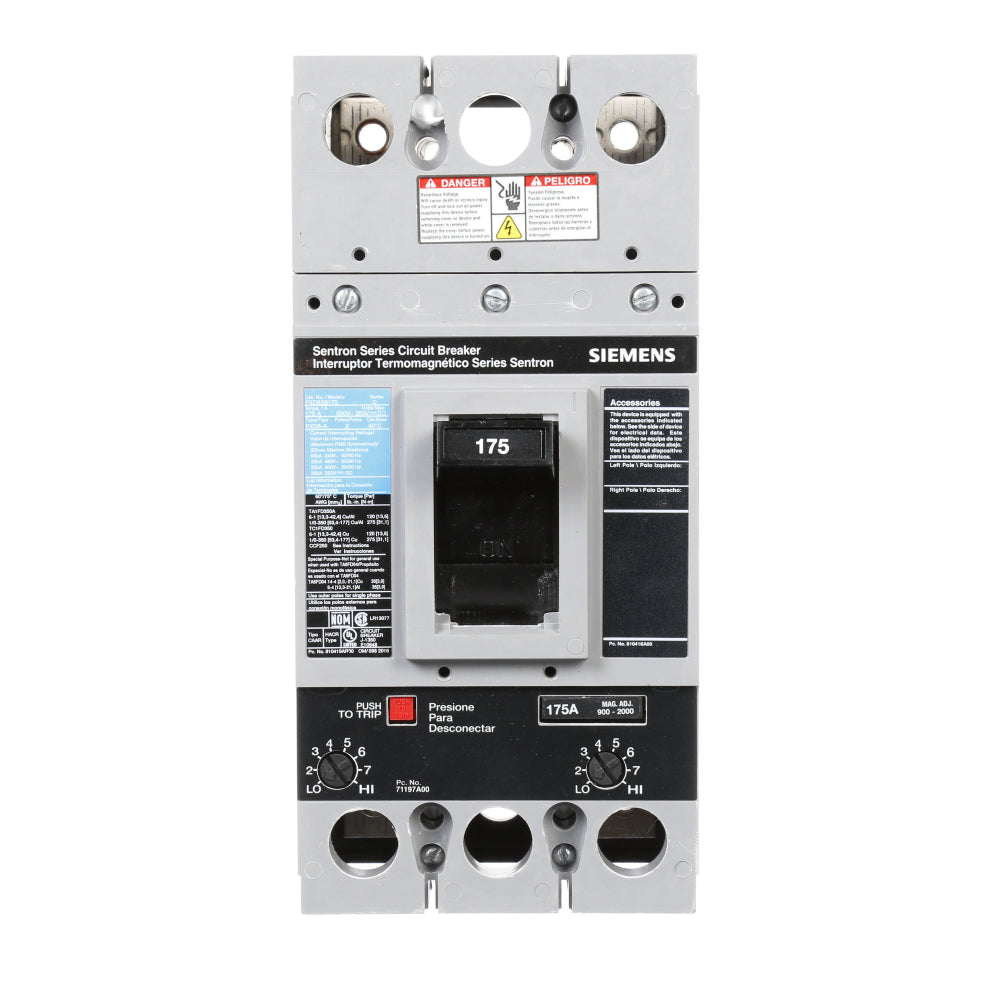

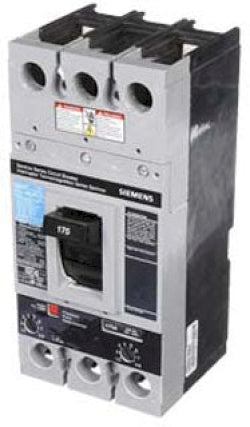

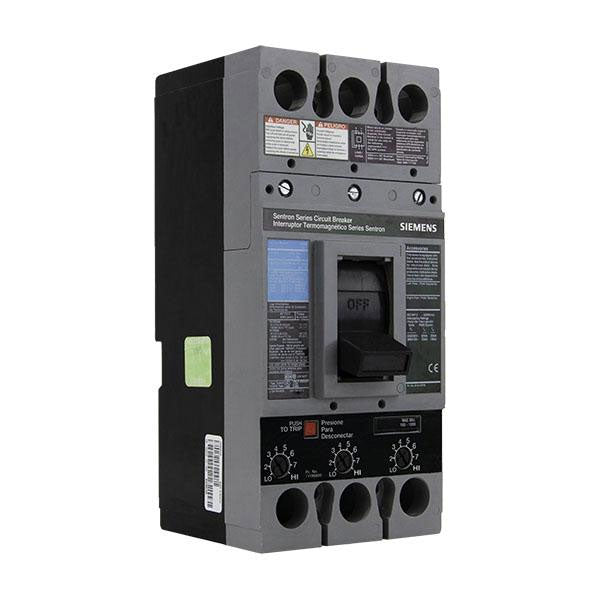

FXD62B175 is a Siemens Sentron series 2-pole molded case circuit breaker with thermal magnetic trip.FXD62B175 features FD frame size, 175A rating, 600VAC voltage, and Type 3R enclosure for outdoor use in circuit protection applications.
- Part Number: FXD62B175
- Manufacturer: Siemens
- Series/Frame: FXD6 / FD
- Poles: 2
- Amperage: 175A
- Voltage: 600VAC
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 22kA at 600V
- Interrupt Rating: 35kA at 480V
- Enclosure: Type 3R
- Standard: UL
Specifications
- Part Number: FXD62B175
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 175
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 250A/FD
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 783643211155
- GTIN : 00783643211155
- Country of Origin : Mexico
- Dimensions : 4.5 in x 9.5 in
- Weight : 7
- Panel Type : SB Switchboards Without Lugs, Sentron Panelboards
- Standards : UL Listed
- Certification : UL, CSA, IEC
