Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWX-50A

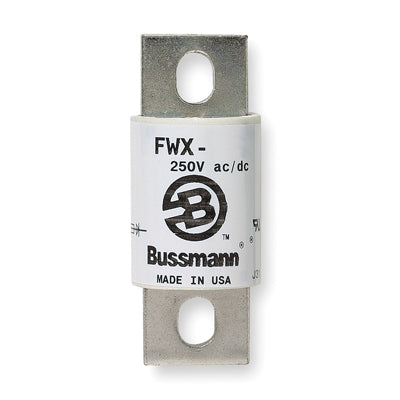

FWX-50A is a high speed semiconductor fuse from Eaton Bussmann designed for fast-acting circuit protection.
This fuse features a 50 ampere rating, 250 volts AC/DC voltage rating, and a stud mounting type. It offers fast blow timing with a round, flush end body and a length of approximately 3.19 inches. The FWX-50A fuse has a high interrupting rating of up to 200 kA at 600 VAC and 20,000 AIC at 250 VDC, making it suitable for semiconductor protection applications. It is UL recognized and built for reliable performance in demanding electrical environments.
- Key Specifications
- Amperage: 50 Amps
- Voltage: 250 VAC/VDC
- Fuse Type: High Speed Semiconductor
- Mounting Type: Stud Mount
- Fuse Timing: Fast Acting (Fast Blow)
- Body Type: Round, Flush End
- Length: 3.19 inches
- Interrupt Rating: 200 kA at 600 VAC, 20,000 AIC at 250 VDC
- Certifications: UL Recognized
- Manufacturer: Eaton Bussmann
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FWX-50A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWX Series
- Type : FWX
- Voltage : 250
- Amperage : 50
- AIC rating : 200kA@250V
- Connection : Stud
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 051712150583
- GTIN : 00051712150583
- Country of Origin : Mexico
- Dimensions : 3.44 in x 0.89 in x 0.91 in (Length/Depth x Height x Width)
- Weight : 0.12
- Certification : CE, CSA Certified, UL Recognized
