Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

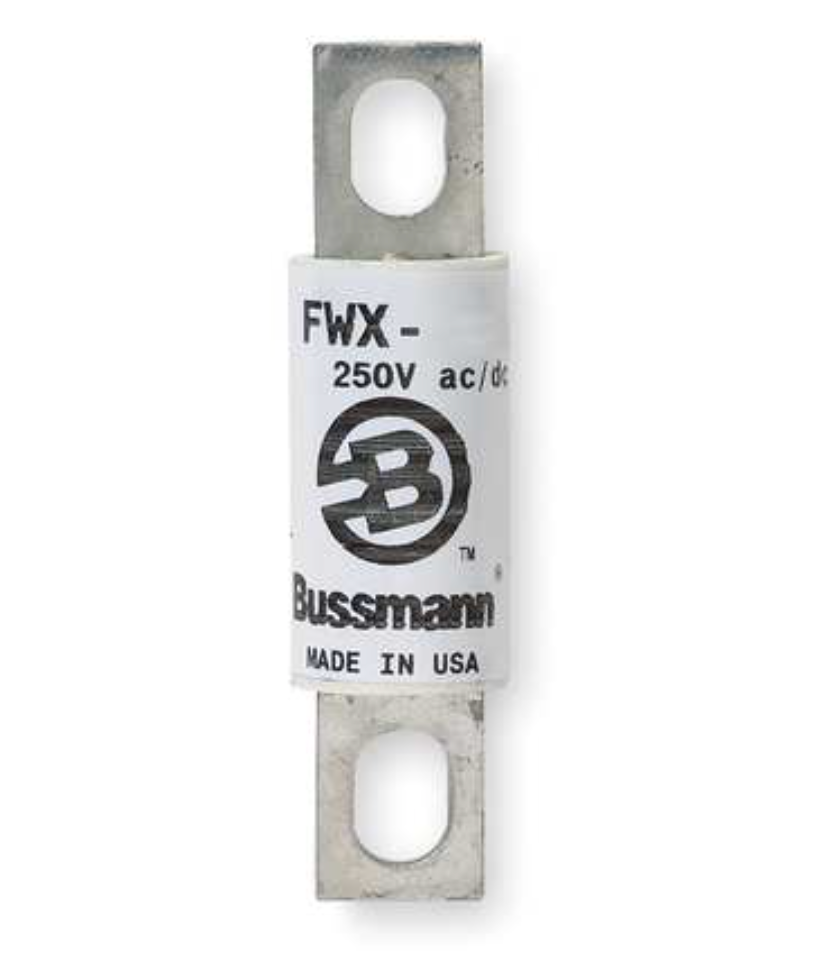

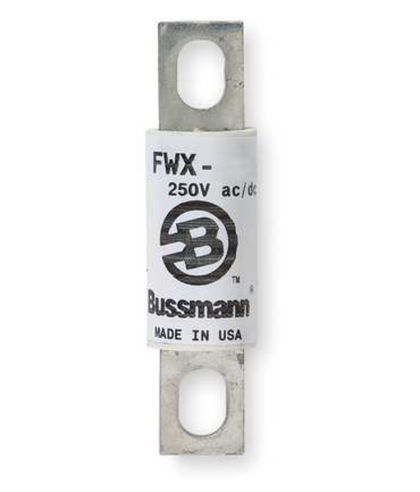

FWX-40A
FWX-40A is a 40 Amp, 250 Volt semiconductor high speed fuse from Eaton Bussmann designed for fast-acting circuit protection.This fuse features a stud mount design with blade end terminals, rated for 250 VAC and 250 VDC operation. It has a high interrupting rating of 200 kA at 250 VAC and 50 kA at 250 VDC, suitable for protecting sensitive semiconductor devices. The fuse is non-indicating and complies with UL recognition standards.
- Amperage: 40 Amps
- Voltage Rating: 250 VAC / 250 VDC
- Interrupting Rating: 200 kA at 250 VAC, 50 kA at 250 VDC
- Fuse Type: Semiconductor, High Speed, Fast Acting
- Mounting Type: Stud Mount
- Terminals: Blade end x Blade end
- Dimensions: 0.81 in diameter x 3.19 in length
- Non-Indicating
- UL Recognized
- Manufacturer Series: FWX
Specifications
- Part Number: FWX-40A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWX Series
- Type : FWX
- Voltage : 250
- Amperage : 40
- AIC rating : 200kA@250V
- Connection : Stud
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 051712150484
- GTIN : 00051712150484
- Country of Origin : Mexico
- Dimensions : 3.44 in x 0.89 in x 0.91 in (Length/Depth x Height x Width)
- Weight : 0.12
- Certification : CE, CSA Certified, UL Recognized
