FWX-30A14F - Eaton Bussmann High Speed Cylindrical Fuse 30A 600V 200kA

FWX-30A14F

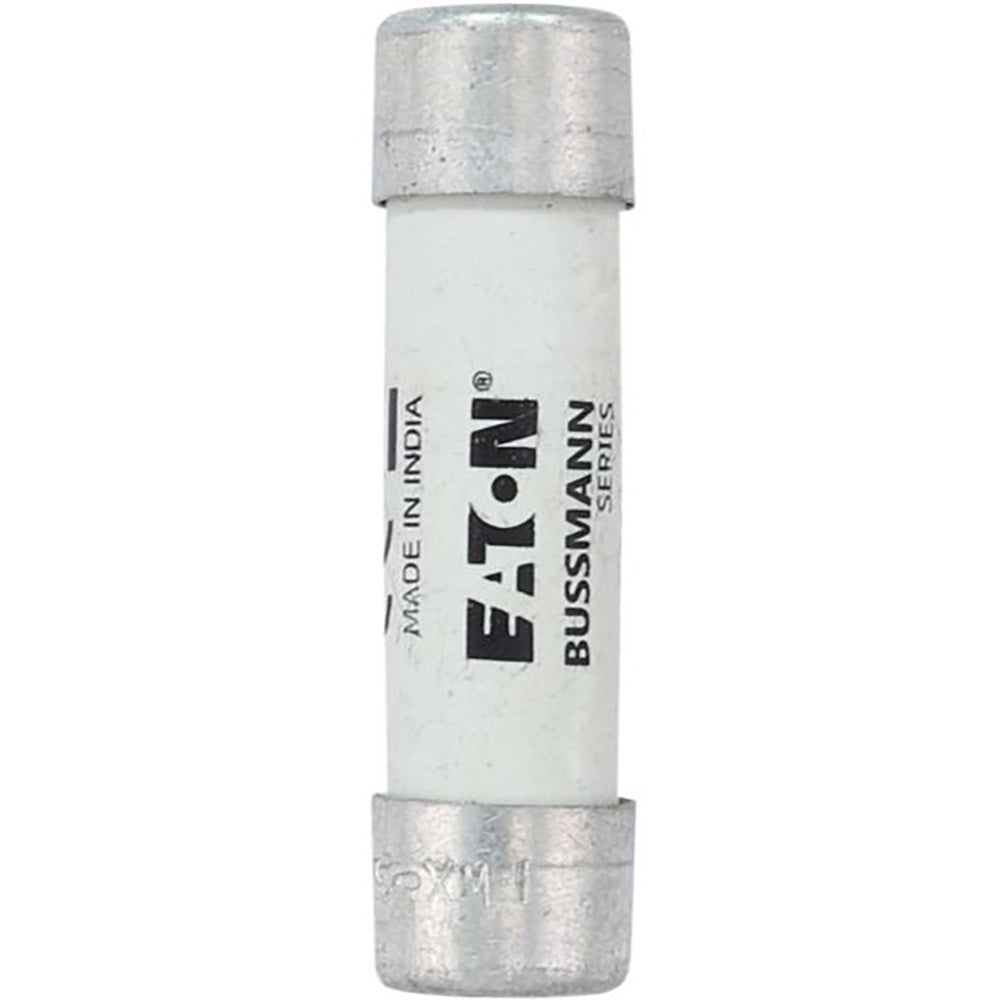

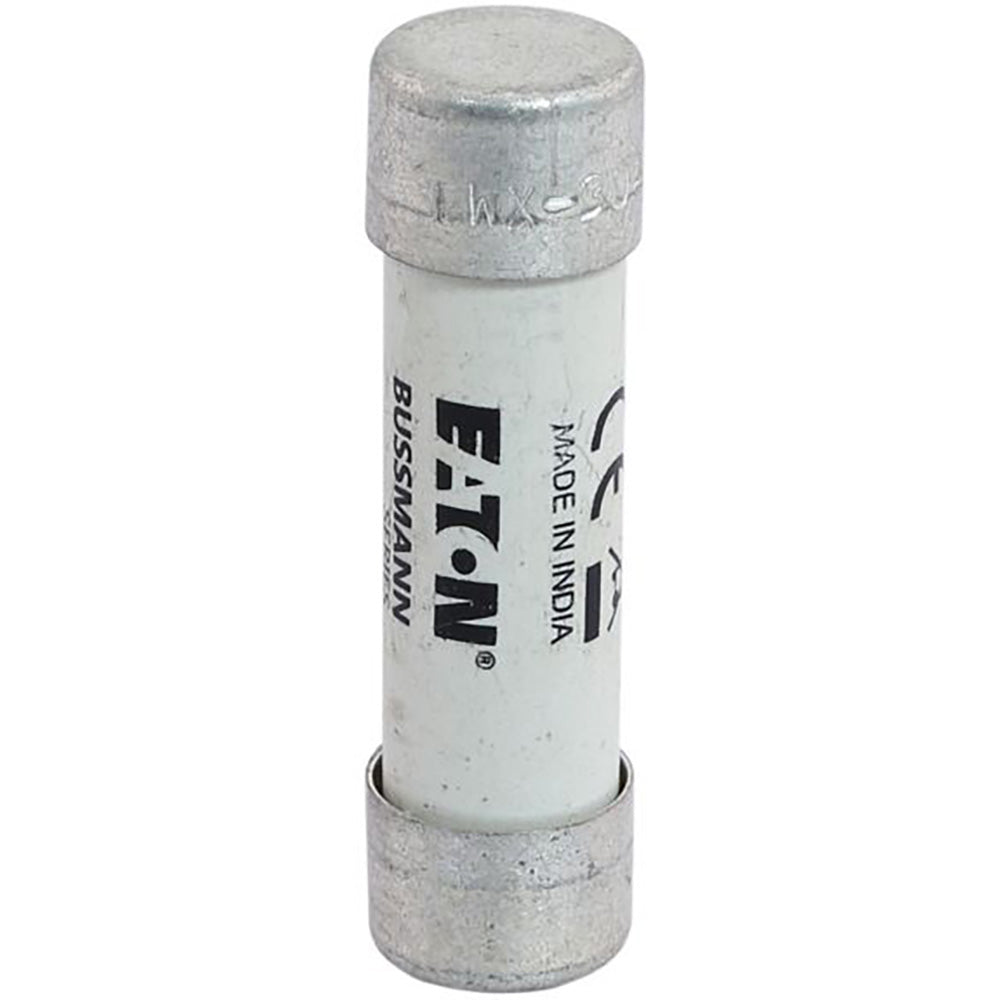

FWX-30A14F is an Eaton Bussmann series high speed cylindrical fuse designed for fast-acting protection in industrial and commercial power distribution applications.

This non-indicating high speed fuse features a 14 x 51 mm cylindrical body with ferrule end connections on both sides. It delivers reliable overcurrent protection with a 200 kAIC interrupt rating at 600V AC and 50 kAIC at 250V DC. The fuse is constructed from ceramic material and is classified as aR type (accompanied semiconductor protection), making it suitable for circuits requiring coordinated protection with semiconductor devices.

• Amperage Rating: 30A
• Voltage Rating: 600V AC / 250V DC
• Interrupt Rating: 200 kAIC at 600V AC; 50 kAIC at 250V DC
• Fuse Type: High Speed Cylindrical
• Construction Size: 14 x 51 mm
• Connection Type: Ferrule End x Ferrule End
• Material: Ceramic
• Utilization Category: aR (accompanied semiconductor protection)
• Frequency Rating: 62 Hz maximum
• Weight: 20.2 g
• Certifications: UL Recognized, CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWX-30A14F
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 30
• AIC rating : 200kA@250V
• Connection : Ferrule
• Diameter : 0.56
• Class Rating : R
• Barrels : 1

Product Data

• UPC : 05171279560
• GTIN : 00051712795609
• Country of Origin : India
• Dimensions : 55 mm x 32 mm x 73 mm (Length/Depth x Height x Width)
• Weight : 0.04646
• Certification : CE, CSA Certified, UL Recognized
