Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

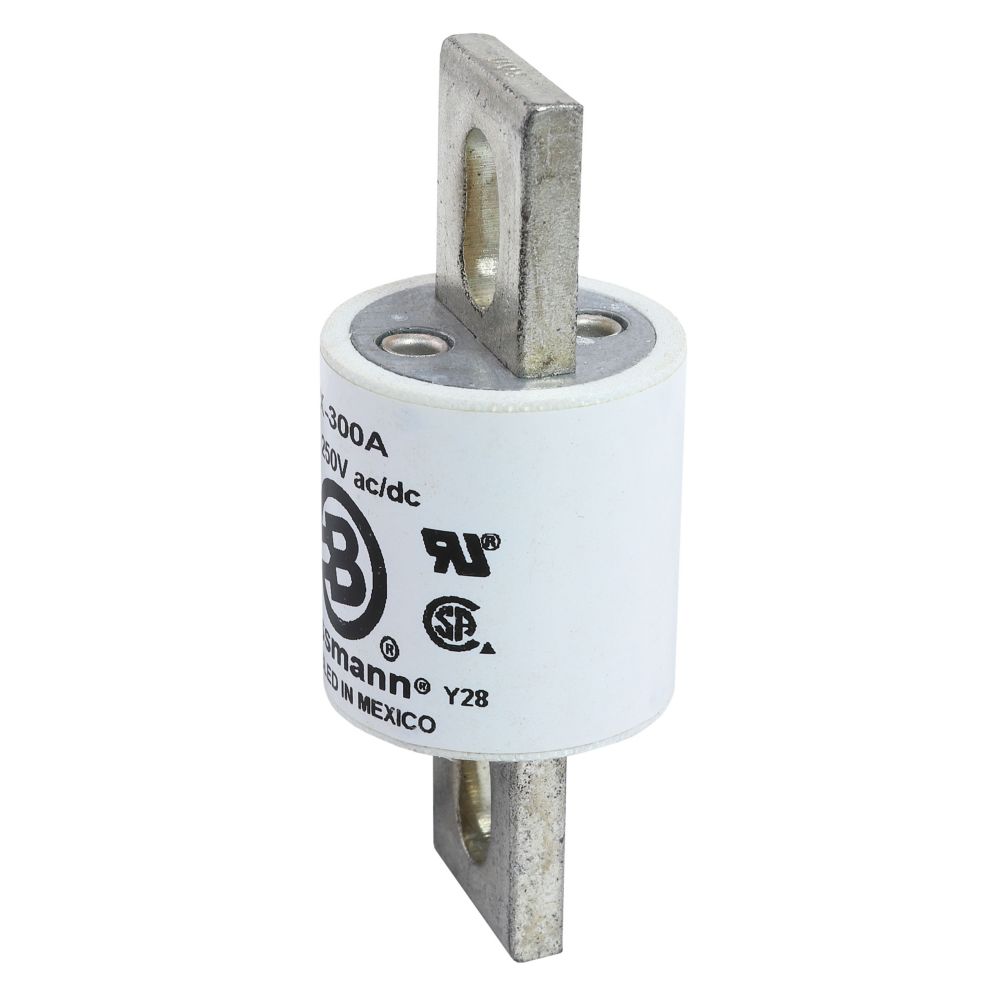

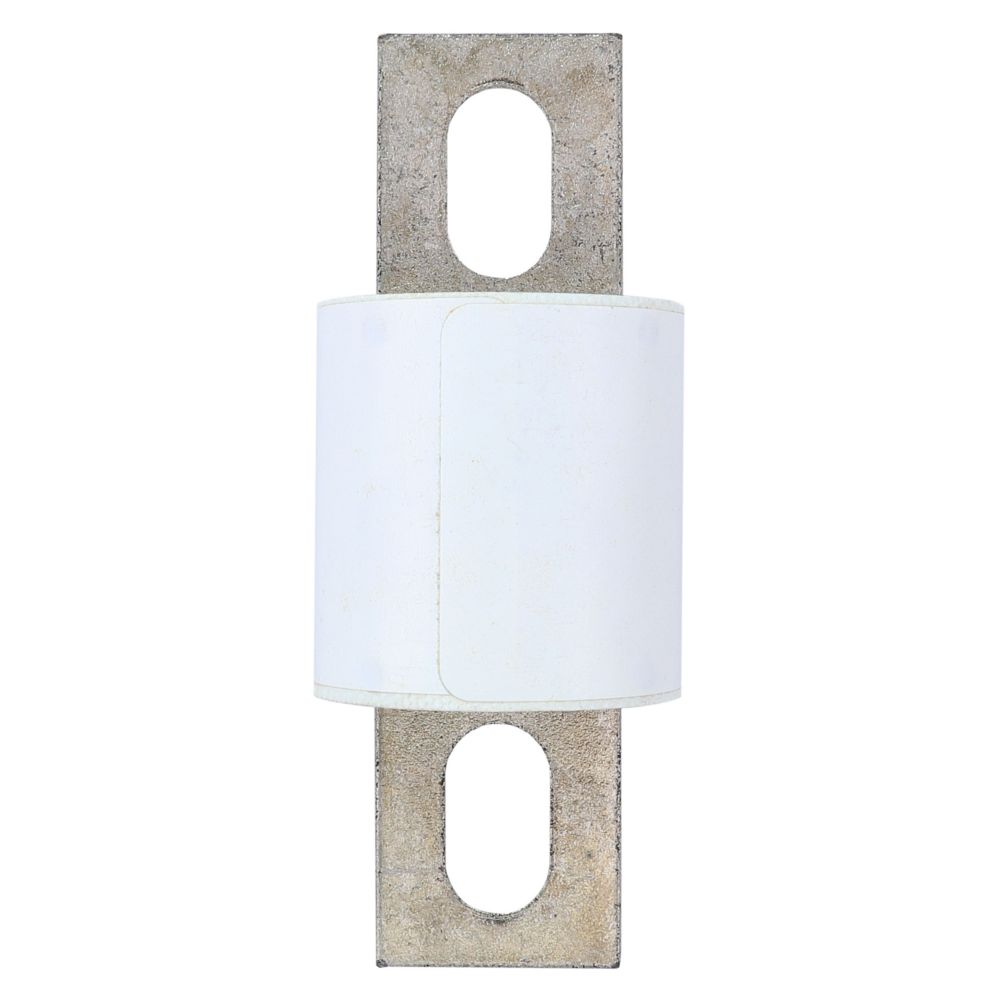

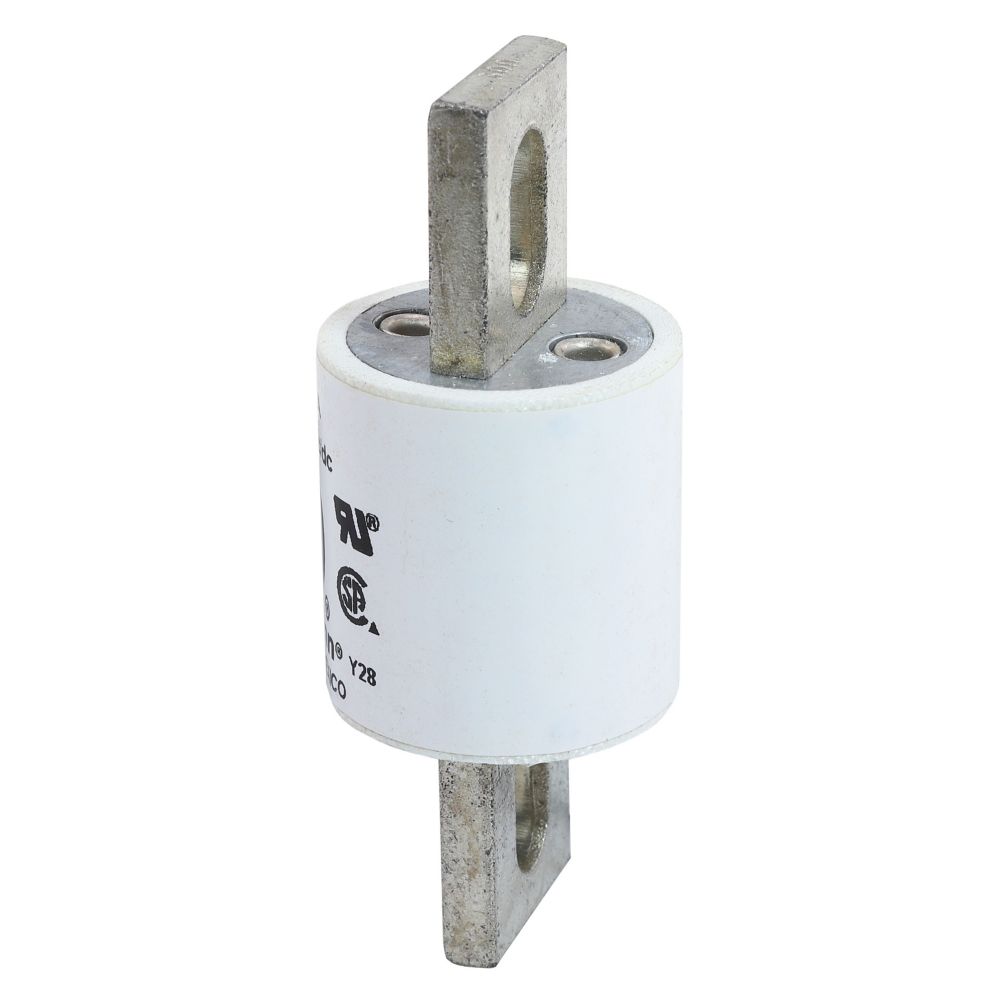

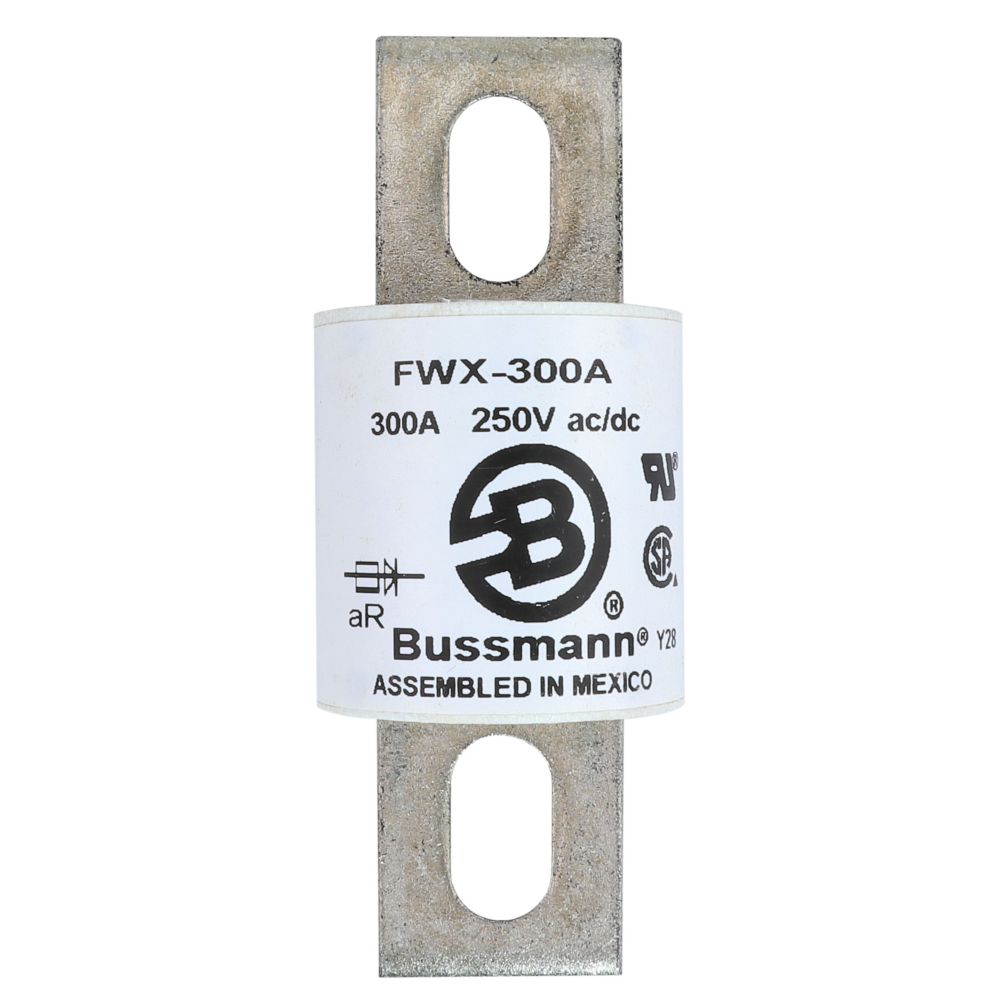

FWX-300A
FWX-300A is a high speed fuse from Eaton Bussmann series designed for industrial DC and AC applications.FWX-300A features a 300A RMS current rating with a voltage rating of 600V and a high interrupt rating of 200 kAIC at AC and 50 kAIC at 250 VDC. It is a stud-mount fuse with blade end connections, non-indicating type, suitable for DC common bus, DC drives, power converters, and reduced voltage starters. Certified by CSA and UL, and CE marked for compliance.
- Key Specifications
- Amperage: 300A RMS
- Voltage Rating: 600V AC, 250V DC
- Interrupt Rating: 200 kAIC AC, 50 kAIC DC
- Mounting Type: Stud Mount
- Connection: Blade end x blade end
- Fuse Indicator: Non Indicating
- Series: Bussmann FWX
- Certifications: CSA Certified, UL Recognized, CE Marked
- Watt Losses: 32W
- Dimensions: 4.3 in length, 1.63 in height, 1.62 in width
Specifications
- Part Number: FWX-300A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWX Series
- Type : FWX
- Voltage : 250
- Amperage : 300
- AIC rating : 200kA@250V
- Connection : Stud
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 051712150699
- GTIN : 00051712150699
- Country of Origin : Mexico
- Dimensions : 4.3 in x 1.63 in x 1.62 in (Length/Depth x Height x Width)
- Weight : 0.46
- Certification : CE, CSA Certified, UL Recognized
