Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

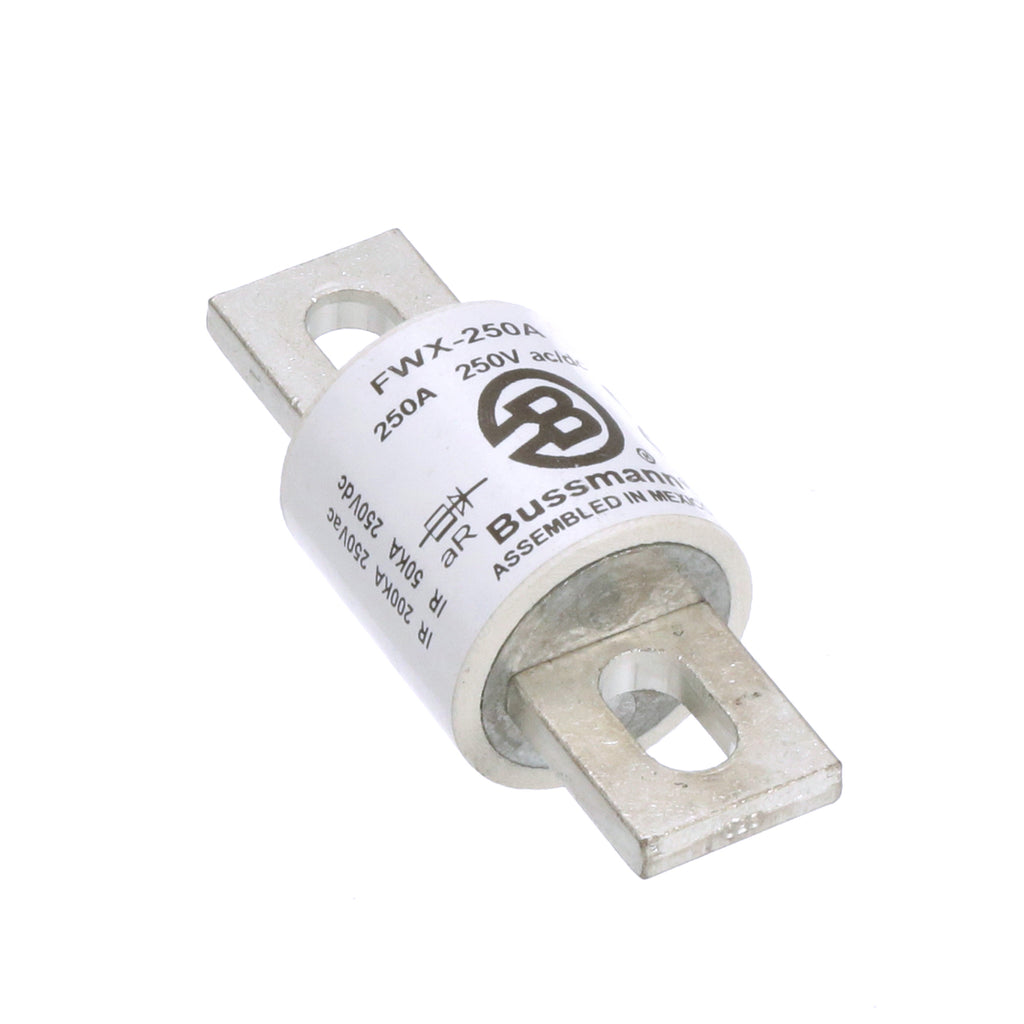

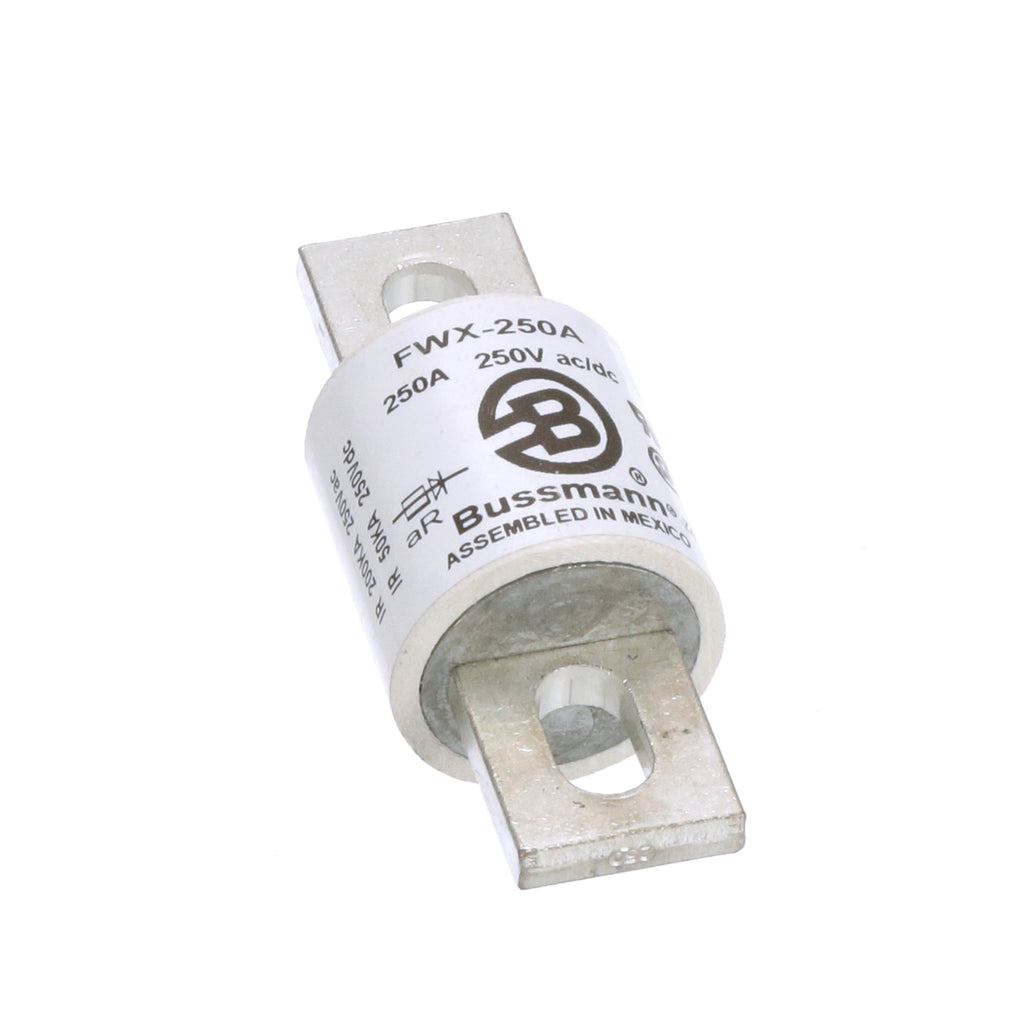

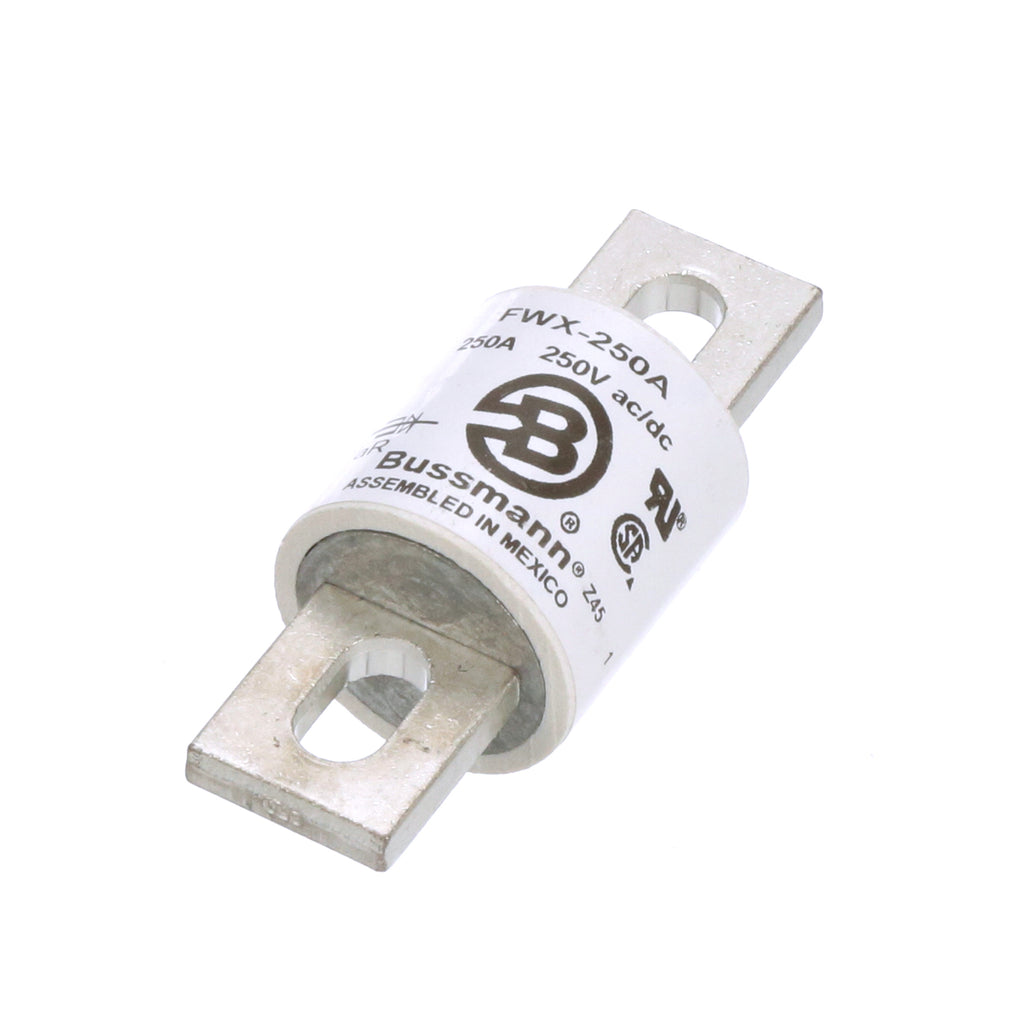

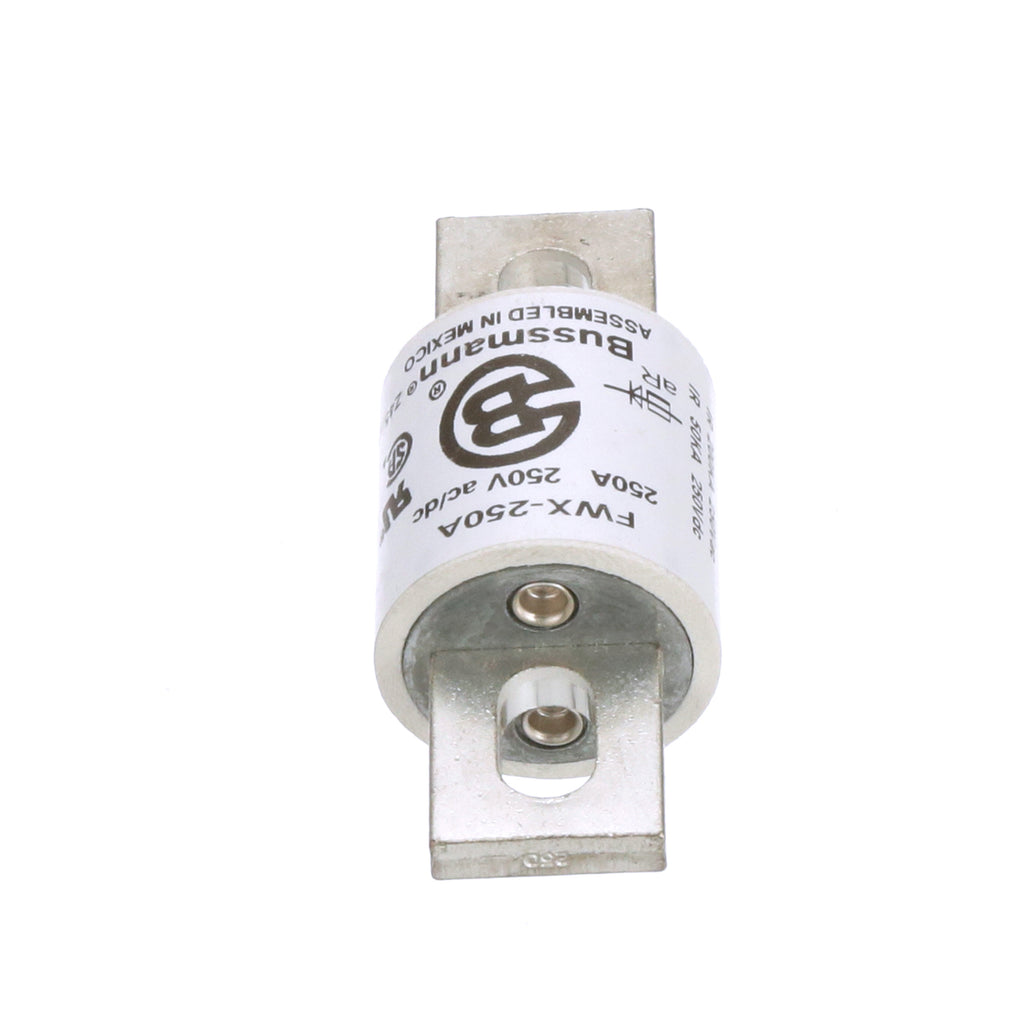

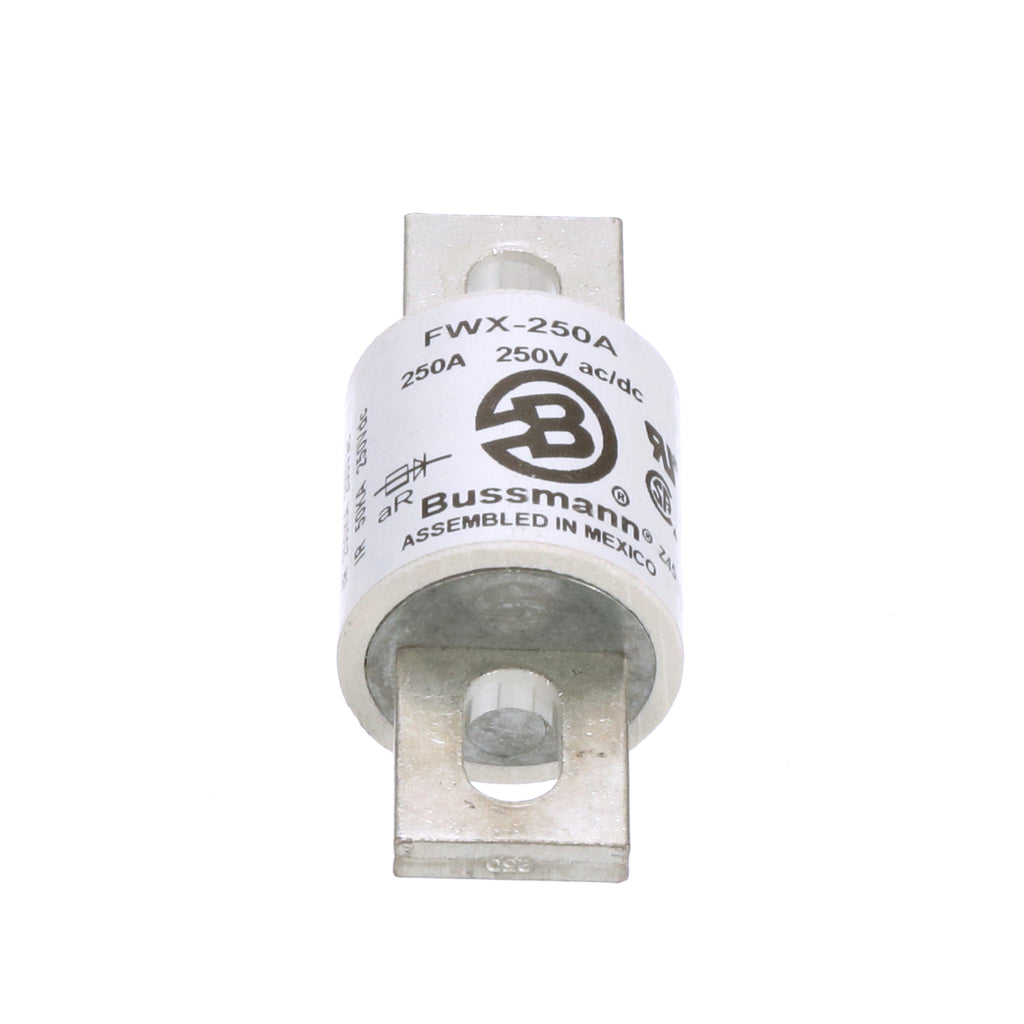

FWX-250A
FWX-250A is a Bussmann series high speed fuse rated for 250 amps and 600 volts AC, designed for stud mounting.This high speed fuse features a 200 kA interrupting rating at 600 VAC and 50 kA at 250 VDC, with blade end to blade end connections and a non-indicating design. It is UL Recognized, CSA Certified, and RoHS compliant, suitable for semiconductor and power distribution protection.
- Amperage Rating: 250A RMS
- Voltage Rating: 600 V AC
- Interrupt Rating: 200 kAIC at 600 VAC, 50 kAIC at 250 VDC
- Mounting Type: Stud Mount
- Connection Type: Blade end x blade end
- Fuse Indicator: Non Indicating
- Certifications: UL Recognized, CSA Certified, RoHS Compliant
- Watt Losses: 27 W
- Dimensions: 4.3 in length, 1.63 in height, 1.62 in width
- Weight: 0.46 lb
Specifications
- Part Number: FWX-250A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWX Series
- Type : FWX
- Voltage : 250
- Amperage : 250
- AIC rating : 200kA@250V
- Connection : Stud
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 051712150682
- GTIN : 00051712150682
- Country of Origin : Mexico
- Dimensions : 4.3 in x 1.63 in x 1.62 in (Length/Depth x Height x Width)
- Weight : 0.46
- Certification : CE, CSA Certified, UL Recognized
