Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

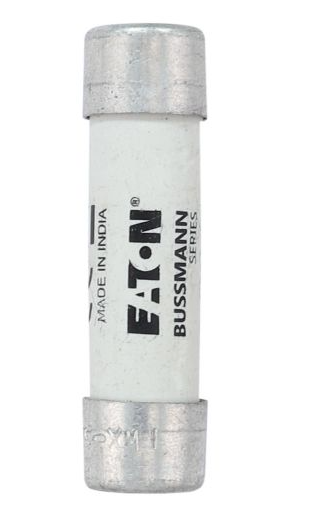

FWX-15A14FB
FWX-15A14FB is an Eaton Bussmann series high speed cylindrical fuse designed for semiconductor protection and DC applications.
This ferrule end x ferrule end fuse delivers fast-blow protection with a 200 kAIC interrupt rating at 250 VAC and 50 kAIC at 250 VDC. The ceramic construction and Class aR utilization category make it ideal for power converters, rectifiers, and DC drives. It operates across 45-62 Hz frequency range with minimal watt losses of 3.8 W.
- Amperage Rating: 15A
- Voltage Rating: 250 VAC / 250 VDC
- Interrupt Rating: 200 kAIC at 250 VAC, 50 kAIC at 250 VDC
- Fuse Size: 14 x 51 mm
- Fuse Type: High Speed (Fast Blow)
- Connection: Ferrule End x Ferrule End
- Material: Ceramic
- Class: aR (Semiconductor Protection)
- Certifications: UL Recognized, CE Marked, RoHS Compliant
- Frequency Range: 45-62 Hz
- Applications: Semiconductors, DC Common Bus, DC Drives, Power Converters/Rectifiers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FWX-15A14FB
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Type : FWX
- Voltage : 250
- Amperage : 15
- AIC rating : 200kA@250V
- Connection : Ferrule
- Diameter : 0.56
- Class Rating : aR
- Barrels : 1
Product Data
- Weight : 0.08
