2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

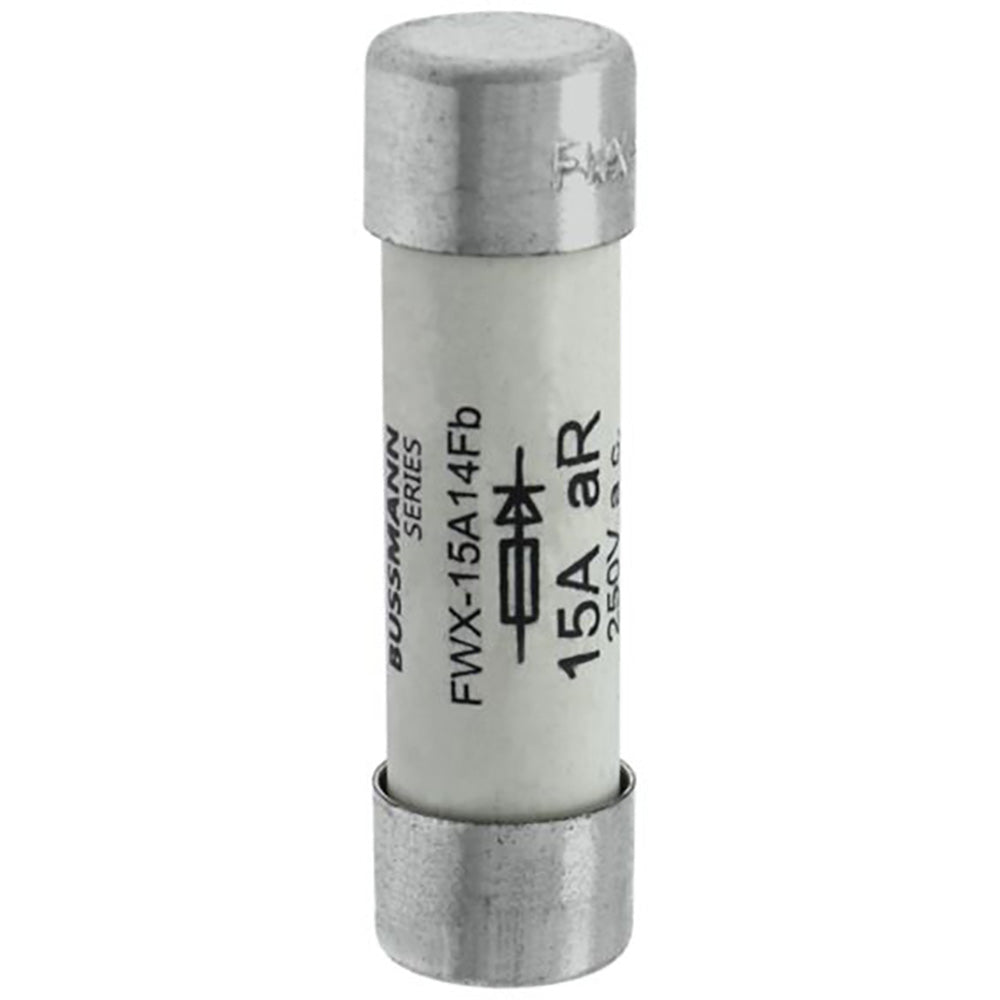

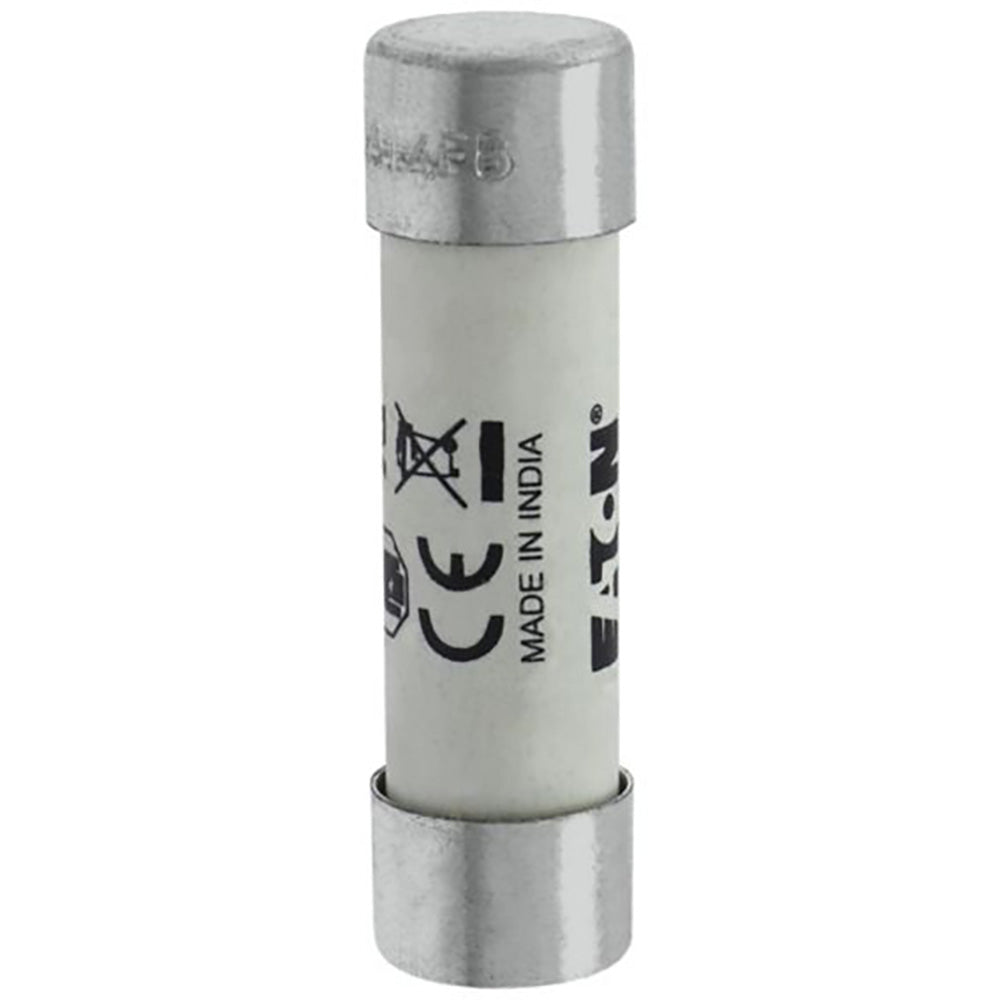

FWX-15A14F
FWX-15A14F is an Eaton Bussmann series high speed cylindrical semiconductor fuse rated at 15 amps and 250 volts AC/DC.FWX-15A14F features a 14 x 51 mm ceramic body with ferrule end connections, designed for semiconductor protection with a high interrupt rating of 200 kA AC and 50 kA DC. It is non-indicating and UL recognized, compliant with CE and RoHS standards, suitable for applications including DC drives, power converters, and rectifiers.
- Amperage: 15 A
- Voltage Rating: 250 V AC / 250 V DC
- Fuse Size: 14 x 51 mm
- Interrupt Rating: 200 kA AC, 50 kA DC
- Fuse Type: High Speed Semiconductor
- Connection: Ferrule end x ferrule end
- Material: Ceramic
- Certifications: UL Recognized, CE Marked, RoHS Compliant
- Utilization Category: aR (semiconductor protection)
- Fuse Indicator: Non-indicating
- Breaking Capacity: 200 kA AC
- Application: Semiconductor, DC common bus, DC drives, power converters
Specifications
- Part Number: FWX-15A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWX Series
- Type : FWX
- Voltage : 250
- Amperage : 15
- AIC rating : 200kA@250V
- Connection : Ferrule
- Diameter : 0.56
- Class Rating : aR
- Barrels : 1
Product Data
- UPC : 051712795579
- GTIN : 00051712795579
- Country of Origin : India
- Dimensions : 55 mm x 32 mm x 73 mm (Length/Depth x Height x Width)
- Weight : 0.05152
- Certification : CE, CSA Certified, UL Recognized
