Product Info
- Manufacturer:Bussmann
Description

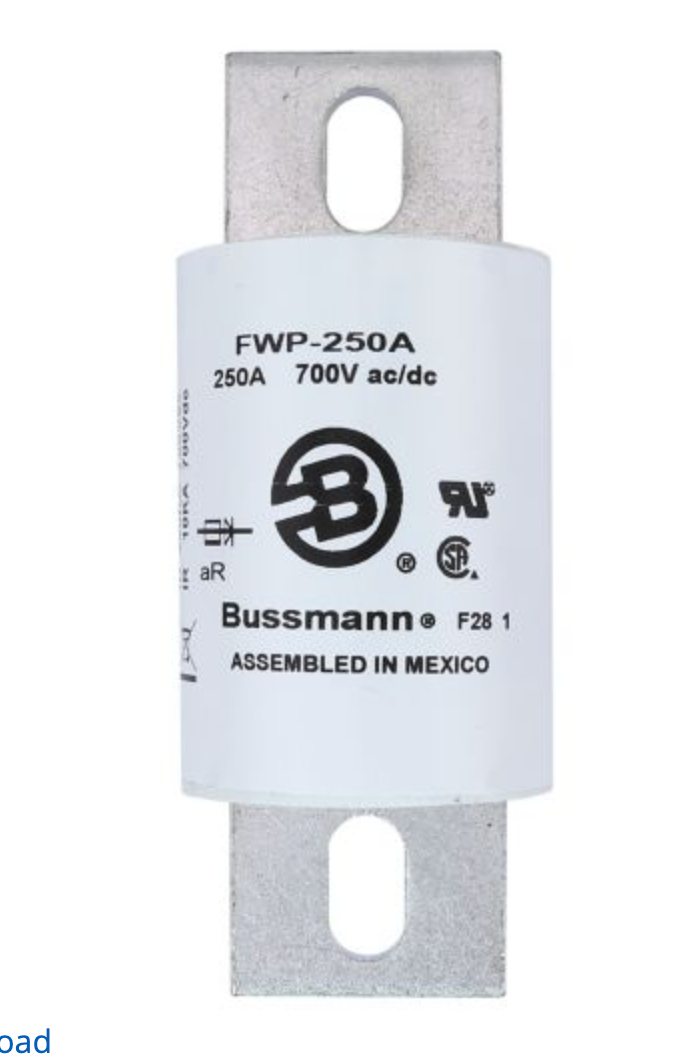

FWP250A
FWP250A is a Bussmann high speed fuse designed for reliable circuit protection with a 250 ampere rating and 700 volts AC/DC capability.FWP250A features a stud mounting type with blade end to blade end connection, providing fast-acting fuse protection. It has an interrupt rating of 200 kA at 700 VAC and 50 kA at 700 VDC, suitable for high fault current applications. This non-indicating fuse is part of the Eaton Bussmann FWP series and is CE marked, RoHS compliant, CSA certified, and UL recognized.
- Key Specifications
- Amperage: 250A RMS
- Voltage Rating: 700 VAC / 700 VDC
- Interrupt Rating: 200 kA AC, 50 kA DC
- Mounting Type: Stud
- Connection: Blade end x Blade end
- Fuse Type: High Speed
- Indication: Non Indicating
- Certifications: CE Marked, RoHS Compliant, CSA Certified, UL Recognized
- Series: Bussmann FWP
Specifications
- Part Number: FWP250A
- Brand : Bussmann
Product Data
- UPC : 05171215040
- GTIN : 00051712150408
- Weight : 5.19
