Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
FWP-800

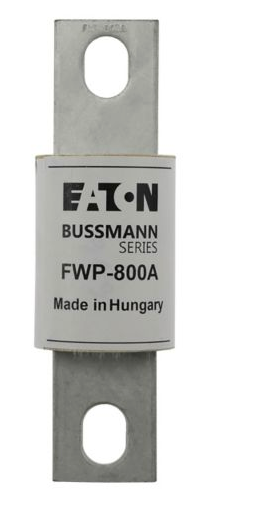

FWP-800A is an Eaton Bussmann series high speed cylindrical fuse designed for semiconductor, DC common bus, DC drive, and power converter applications. This North American style bolted tag fuse link delivers superior current limitation and fast-acting protection in a compact form factor. The FWP-800A combines overload and short-circuit protection with exceptional cycling performance for demanding industrial and power distribution environments.
- Amperage Rating: 800A
- Voltage Rating: 700 Vac, 700 Vdc (UL)
- Interrupt Rating: 200 kAIC at 700 Vac, 50 kAIC at 700 Vdc
- Operating Class: Class aR
- Mounting Type: Bolted tag, blade end X blade end, stud
- Pre-arc I2T: 78000
- Clearing I2T: 450000 at 700 V
- Power Loss: 140 W
- Dimensions: 169 mm length, 52 mm height, 52 mm width
- Weight: 567 g
- Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant
- Fuse Indicator: Non Indicating
Specifications
- Part Number: FWP-800
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 800
- AIC rating : 200kA@700Vac/dc
- Connection : Bolted
- Diameter : 0.56
- Barrels : 1
Product Data
- Weight : 2
