Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

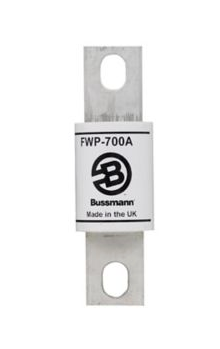

FWP-700
FWP-700A is an Eaton Bussmann series high speed cylindrical fuse designed for semiconductor protection, DC common bus, DC drives, and power converter applications. This North American style bolted tag fuse link delivers reliable circuit protection with excellent cycling capability and low energy let-through characteristics. The fuse features a compact cylindrical design with center bolted tags and stud mounting for secure installation in industrial power distribution systems.Key Specifications
- Amperage Rating: 700A
- Voltage Rating: 700 Vac, 700 Vdc (UL)
- Interrupt Rating: 200 kAIC Vac, 50 kAIC at 700 Vdc
- Fuse Class: Class aR (accompanied semiconductor protection)
- Fuse Shape: Cylindrical, center bolted tags
- Mounting Method: Stud
- Pre-arc I2T: 54000
- Clearing I2T: 300000 at 700 V
- Watt Loss: 122 W
- Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant
- Dimensions: 180 mm W x 53 mm H x 56 mm D
- Weight: 588 g
Specifications
- Part Number: FWP-700
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 700
- AIC rating : 200kA@700Vac/dc
- Connection : Bolted
- Diameter : 0.56
- Barrels : 1
Product Data
- Weight : 4
