FWP-63A22F - Eaton Bussmann 63A 700V Fast Acting High Speed Fuse 22x58mm Ferrule

FWP-63A22F

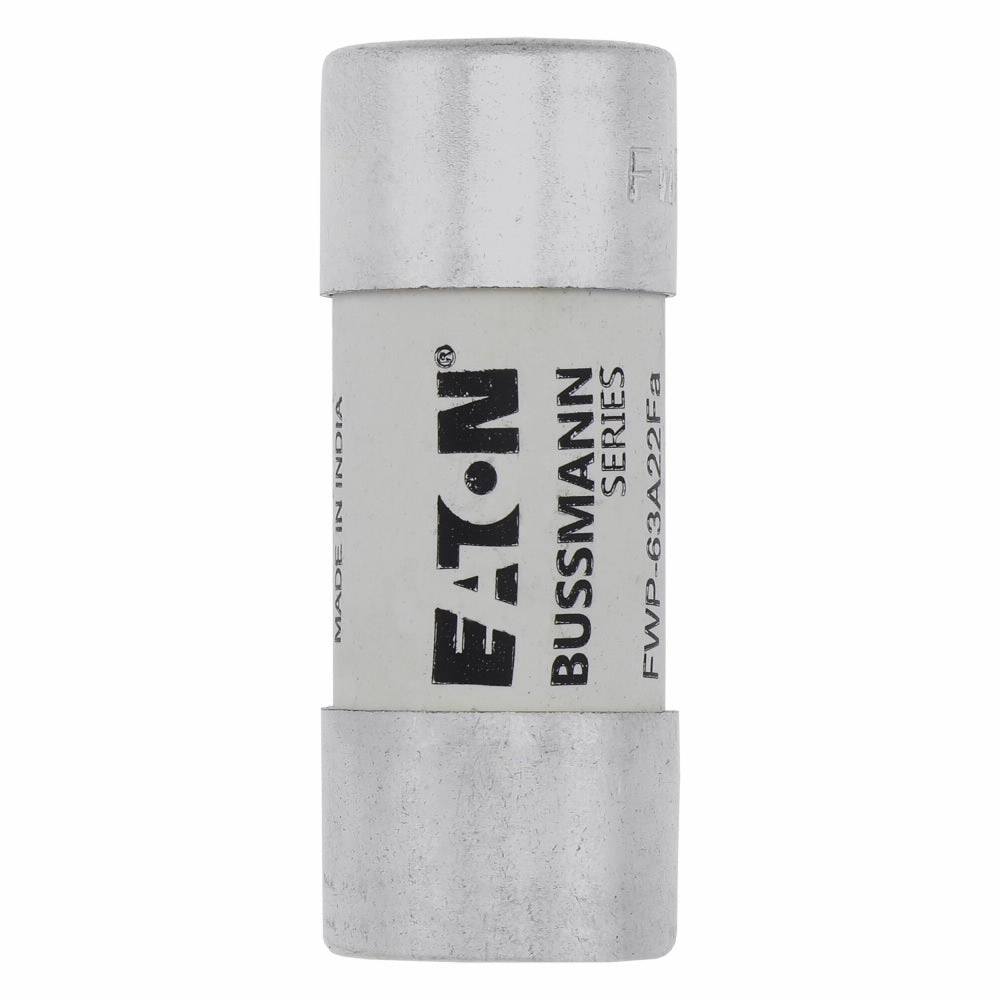

FWP-63A22F is a fast acting high speed fuse from Eaton Bussmann designed for semiconductor and DC circuit protection.This 63 amp fuse features a 700 V AC/DC voltage rating and a 200 kA interrupt rating, making it suitable for DC common bus, DC drives, power converters, rectifiers, and reduced voltage starters. It has a cylindrical ceramic body with ferrule end terminals sized 22 x 58 mm. The fuse is class aR rated and non-indicating, optimized for low arc voltage and energy let-through with excellent cycling capability.

Key Specifications
• Amperage: 63 A
• Voltage Rating: 700 V AC/DC
• Interrupt Rating: 200 kA RMS Symmetrical
• Fuse Type: Fast Acting High Speed
• Body Size: 22 x 58 mm Ferrule
• Class: aR
• Mounting Type: Ferrule End Terminal
• Material: Ceramic Cylindrical Body
• Applications: DC Drives, Power Converters, Rectifiers, Reduced Voltage Starters
• Certifications: UL Recognized, CE, CSA (non-striker versions)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FWP-63A22F
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWP Series
• Type : FWP
• Voltage : 700
• Amperage : 63
• AIC rating : 200kA@700V
• Connection : Ferrule
• Diameter : 0.88
• Barrels : 1



Product Data

• UPC : 051712796576
• GTIN : 00051712796576
• Country of Origin : India
• Dimensions : 58 mm x 23 mm x 23 mm (Length/Depth x Height x Width)
• Weight : 0.14398
• Certification : CE, CSA Certified, UL Recognized
