Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

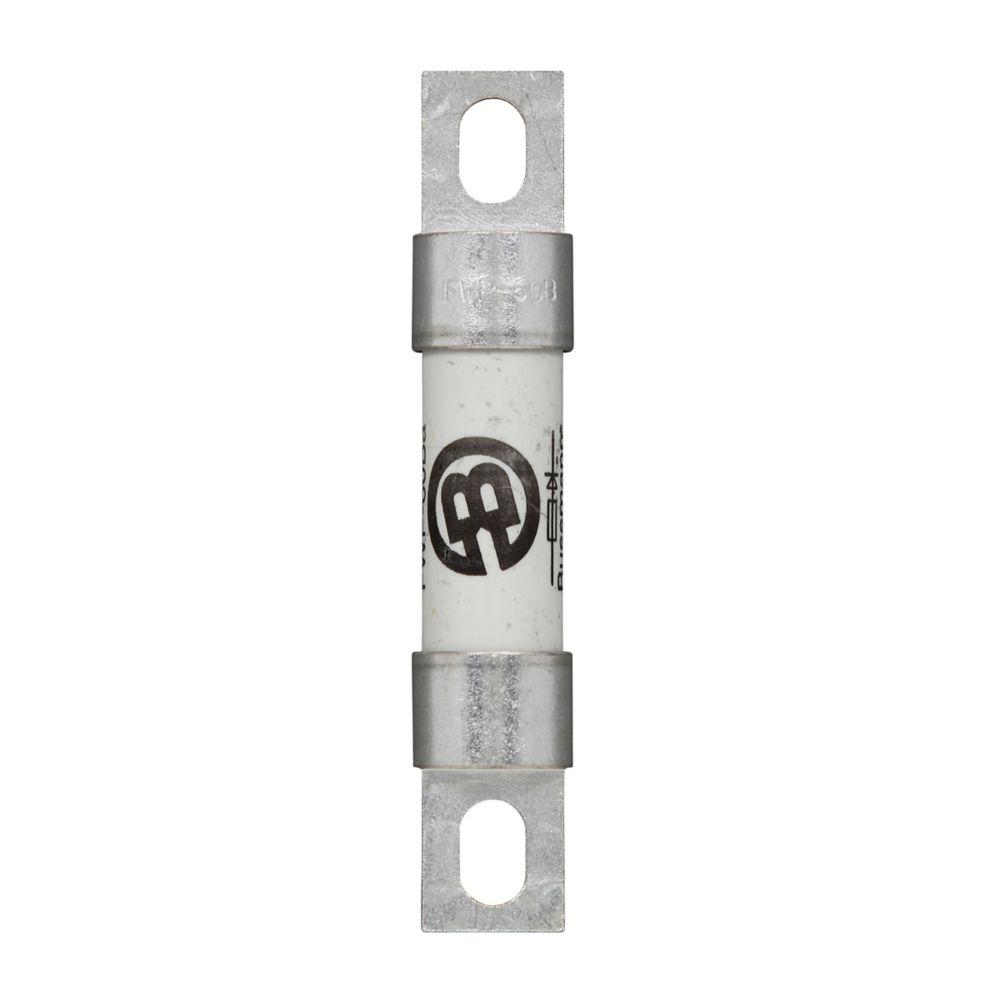

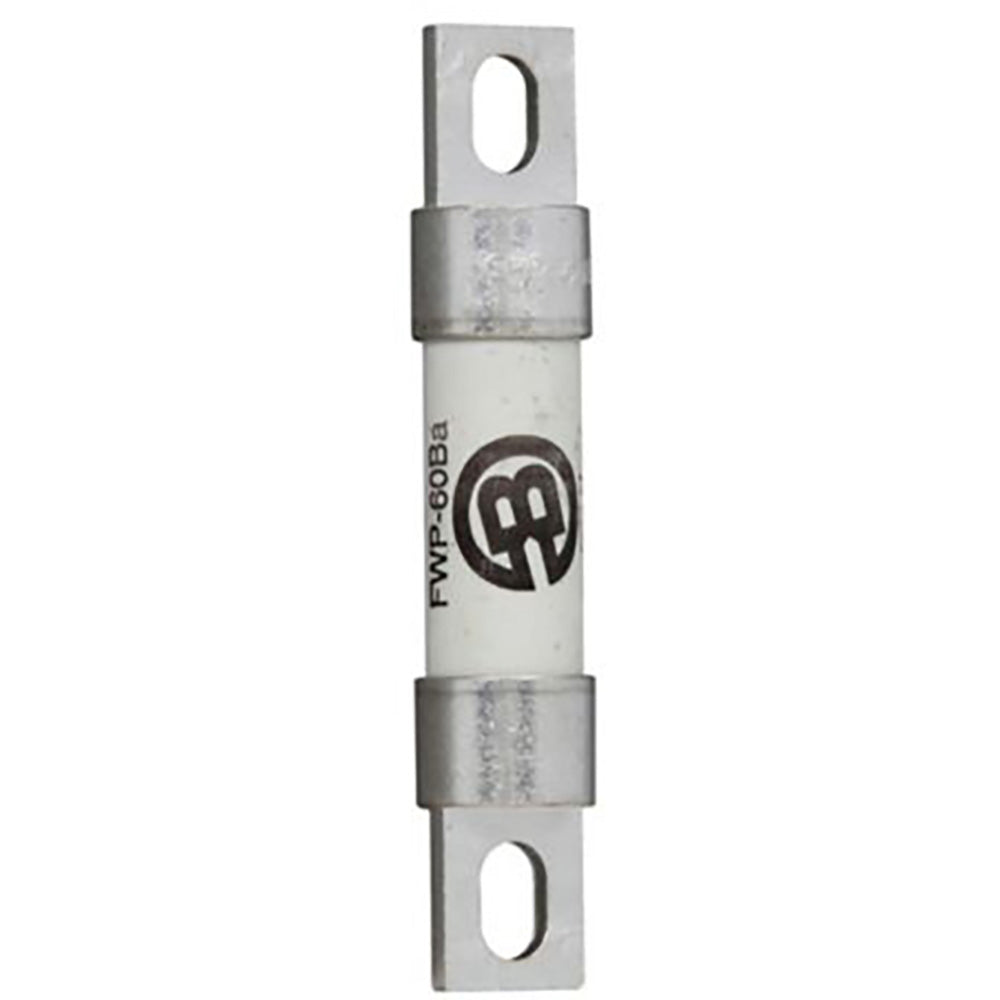

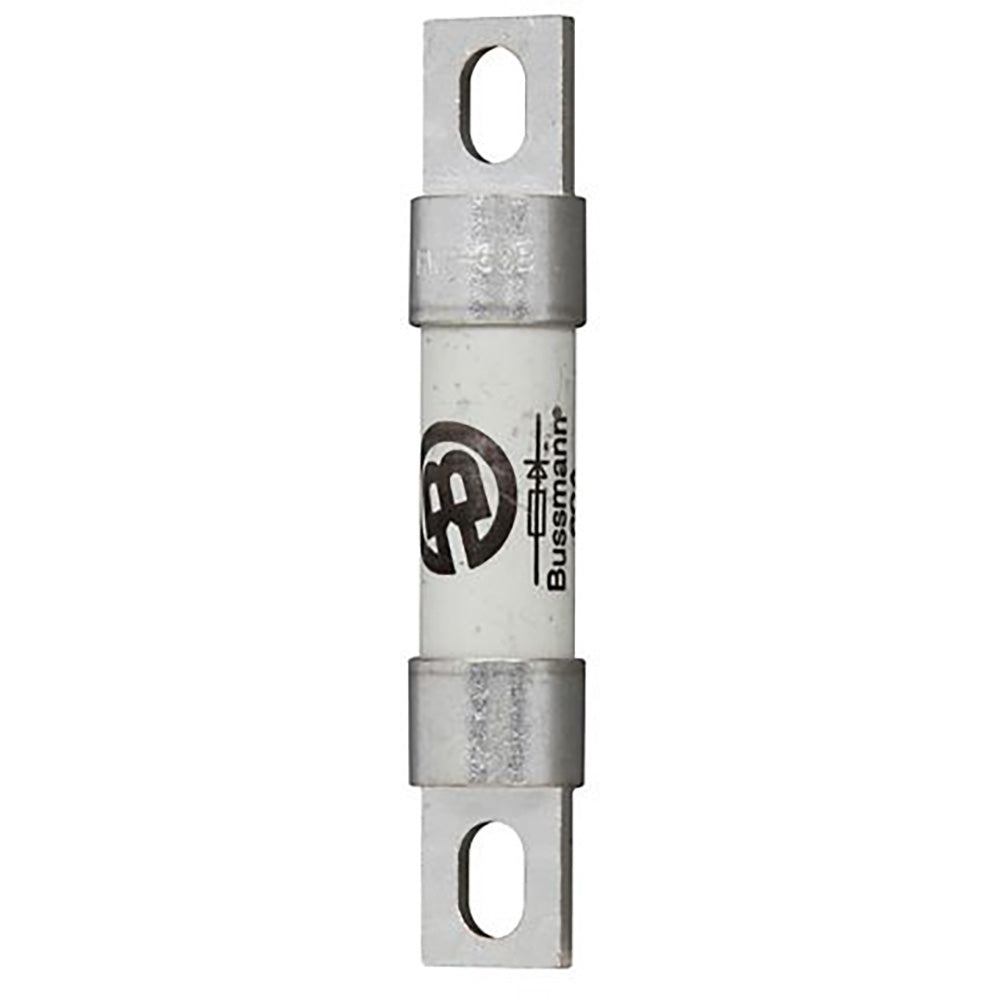

FWP-50B
FWP-50B is a high speed cylindrical fuse from Eaton designed for semiconductor and power converter protection.FWP-50B features a 50 Amp amperage rating, 700 Volt AC/DC voltage rating, and a 200kA interrupting capacity at 700V AC. It has a stud mounting type with blade end connections and is non-indicating. This fuse is part of the Eaton Bussmann series and is suitable for DC common bus, DC drives, and rectifier applications.
- Amperage: 50 Amps
- Voltage: 700 VAC/VDC
- Interrupt Rating: 200kA at 700 VAC, 50kA at 700 VDC
- Mounting Type: Stud
- Fuse Type: High Speed Cylindrical
- Connection: Blade end x Blade end
- Fuse Indicator: Non-Indicating
- Series: Eaton Bussmann
- Fuse Size: 22 x 58 mm
- Application: Semiconductor, DC drives, Power converters/rectifiers
Specifications
- Part Number: FWP-50B
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 50
- AIC rating : 200kA@700V
- Connection : Stud
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 051712795999
- GTIN : 00051712795999
- Dimensions : 102 mm x 21 mm x 21 mm (Length/Depth x Height x Width)
- Weight : 0.21574
