FWP-40B - Eaton 40A 700V AC/DC High Speed Semiconductor Fuse, Stud Mount, 200 kAIC Interrupt Rating

FWP-40B

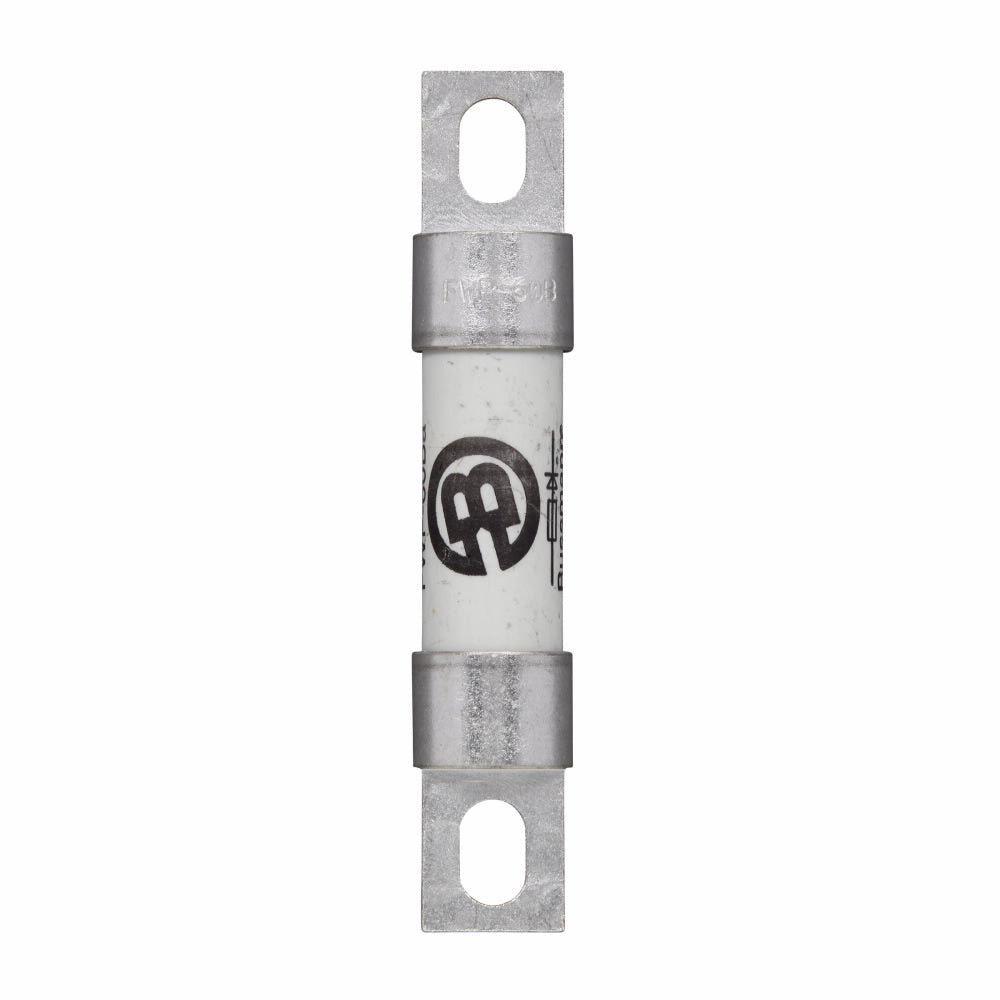

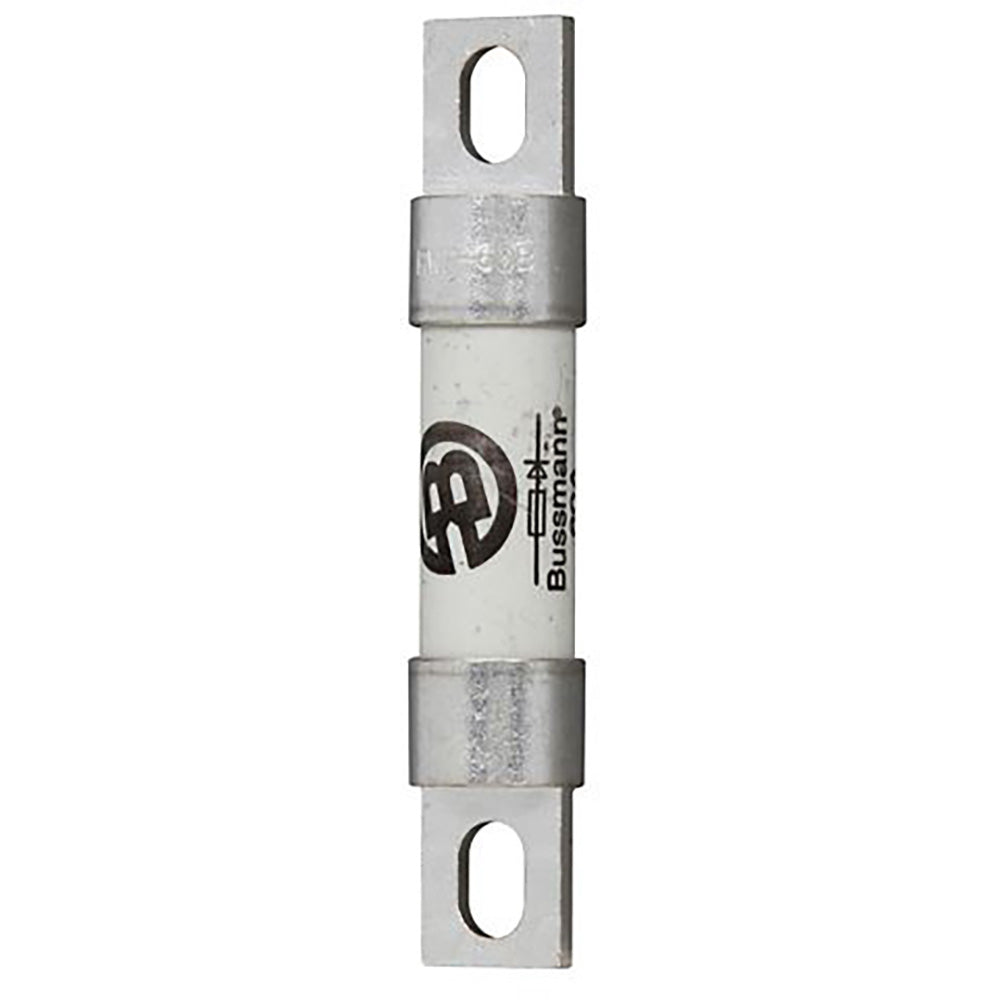

FWP-40B is an Eaton Bussmann series high speed semiconductor fuse rated for 40 amps and 700 volts AC/DC with a stud mounting type.This high speed cylindrical fuse features a 200 kA interrupting rating at 700 VAC and 50 kA at 700 VDC, designed for semiconductor protection in applications such as DC common bus, DC drives, and power converters. It has a non-indicating fuse design, blade end connections, and complies with UL Recognized, CSA Certified, and CE Marked standards.

• Amperage Rating: 40 A
• Voltage Rating: 700 V AC/DC
• Interrupt Rating: 200 kA at 700 VAC, 50 kA at 700 VDC
• Mounting Type: Stud Mount
• Fuse Type: High Speed Semiconductor
• Fuse Size: 22 x 58 mm
• Fuse Indicator: Non Indicating
• Certifications: UL Recognized, CSA Certified, CE Marked
• Class: aR
• Blade End X Blade End Connections
• Applications: Semiconductor, DC common bus, DC drives, power converters/rectifiers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWP-40B
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWP Series
• Type : FWP
• Voltage : 700
• Amperage : 40
• AIC rating : 200kA@700V
• Connection : Stud
• Diameter : 0.81
• Barrels : 1

Product Data

• UPC : 051712795982
• GTIN : 00051712795982
• Dimensions : 102 mm x 21 mm x 21 mm (Length/Depth x Height x Width)
• Weight : 0.21528
