FWP-35B - Eaton Bussmann High Speed Cylindrical Fuse 35A 700V Class aR

FWP-35B

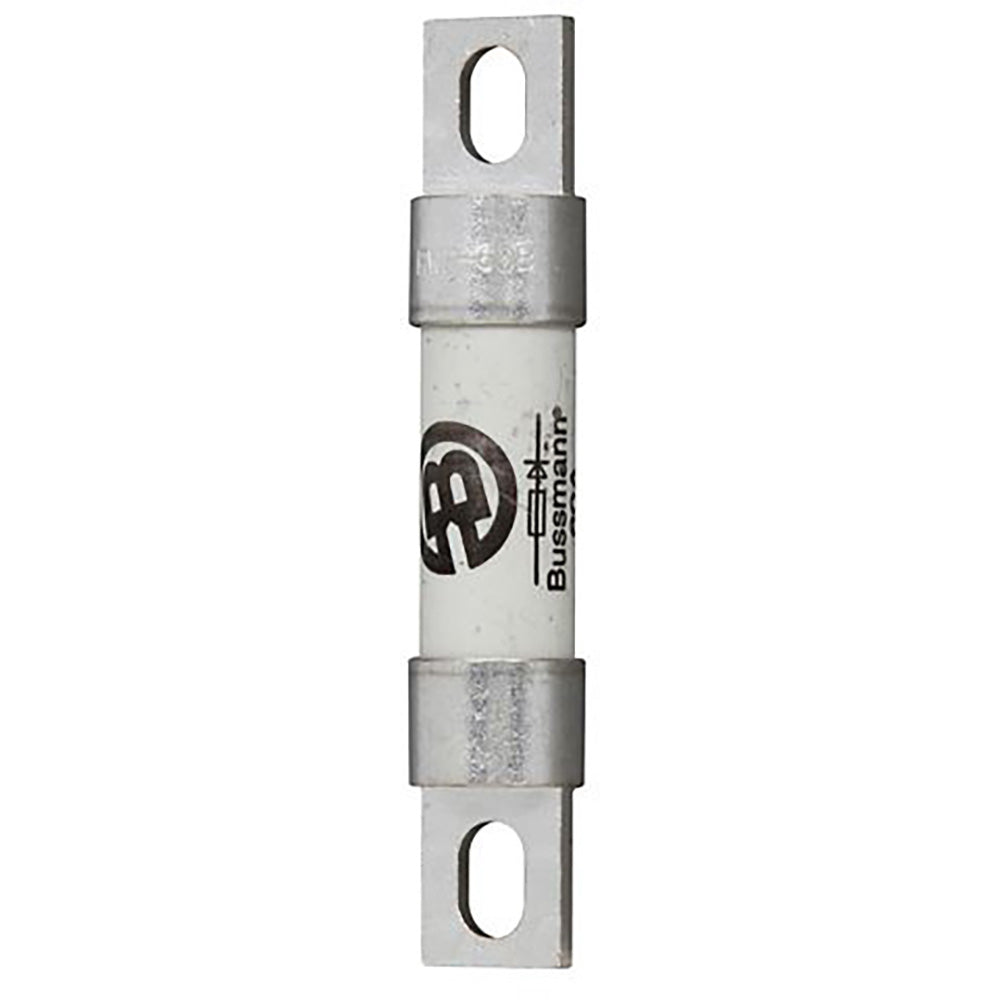

FWP-35B is an Eaton Bussmann series high speed cylindrical fuse designed for semiconductor, DC common bus, DC drive, and power converter applications. This Class aR fuse delivers reliable protection with a 35A amperage rating and dual voltage capability of 700 Vac and 700 Vdc, making it suitable for both AC and DC circuits. The fuse features a robust interrupt rating of 200 kAIC at 700 Vac and 50 kAIC at 700 Vdc, ensuring dependable fault protection in demanding industrial environments. With blade end connections and a non-indicating design, the FWP-35B measures 102 mm in length and weighs 94.4 g for easy integration into compact assemblies.

• Amperage Rating: 35A
• Voltage Rating: 700 Vac / 700 Vdc
• Interrupt Rating: 200 kAIC Vac, 50 kAIC Vdc
• Fuse Class: Class aR
• Connection Type: Blade end X blade end
• Pre-arc I2T: 34
• Clearing I2T: 160 at 700 V
• Watt Losses: 12 W
• Length: 102 mm
• Height: 21 mm
• Width: 21 mm
• Certifications: CSA Certified, UL Recognized, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWP-35B
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWP Series
• Type : FWP
• Voltage : 700
• Amperage : 35
• AIC rating : 200kA@700V
• Connection : Stud
• Diameter : 0.81
• Barrels : 1

Product Data

• UPC : 051712795975
• GTIN : 00051712795975
• Dimensions : 102 mm x 21 mm x 21 mm (Length/Depth x Height x Width)
• Weight : 0.21712
