Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

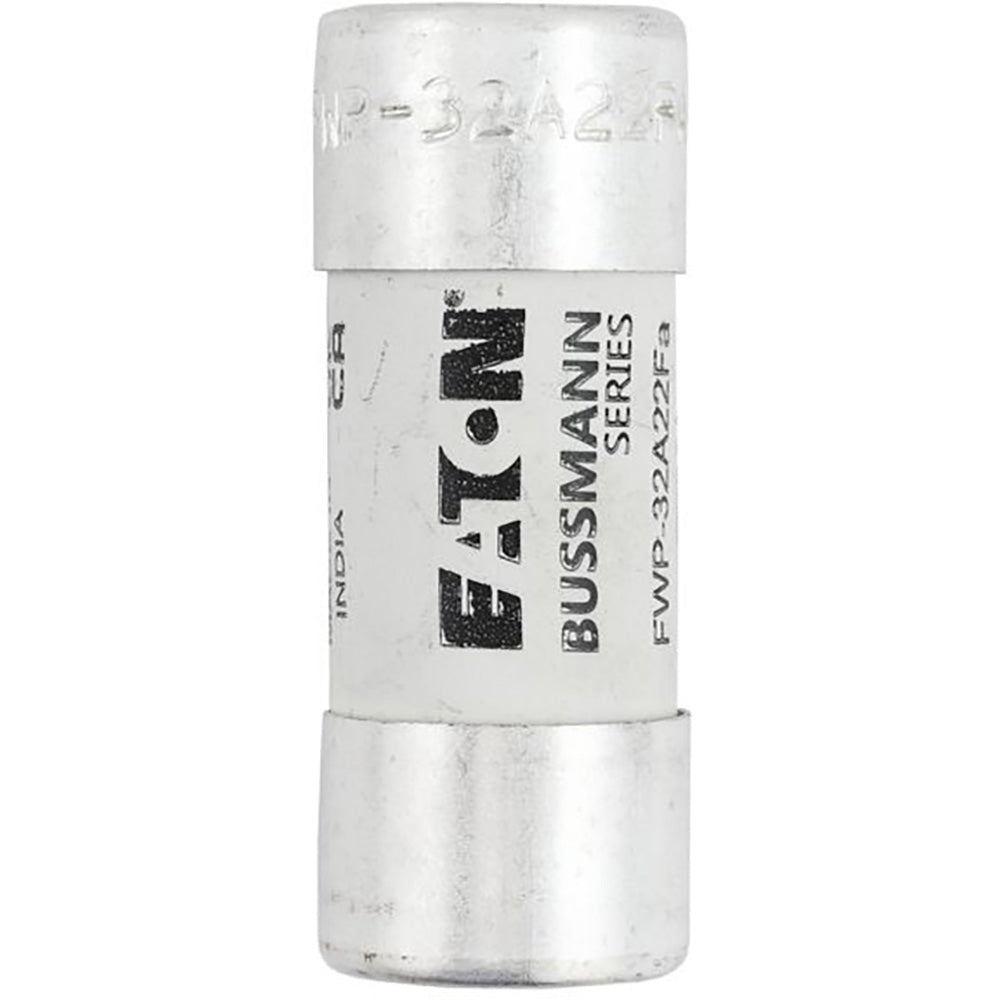

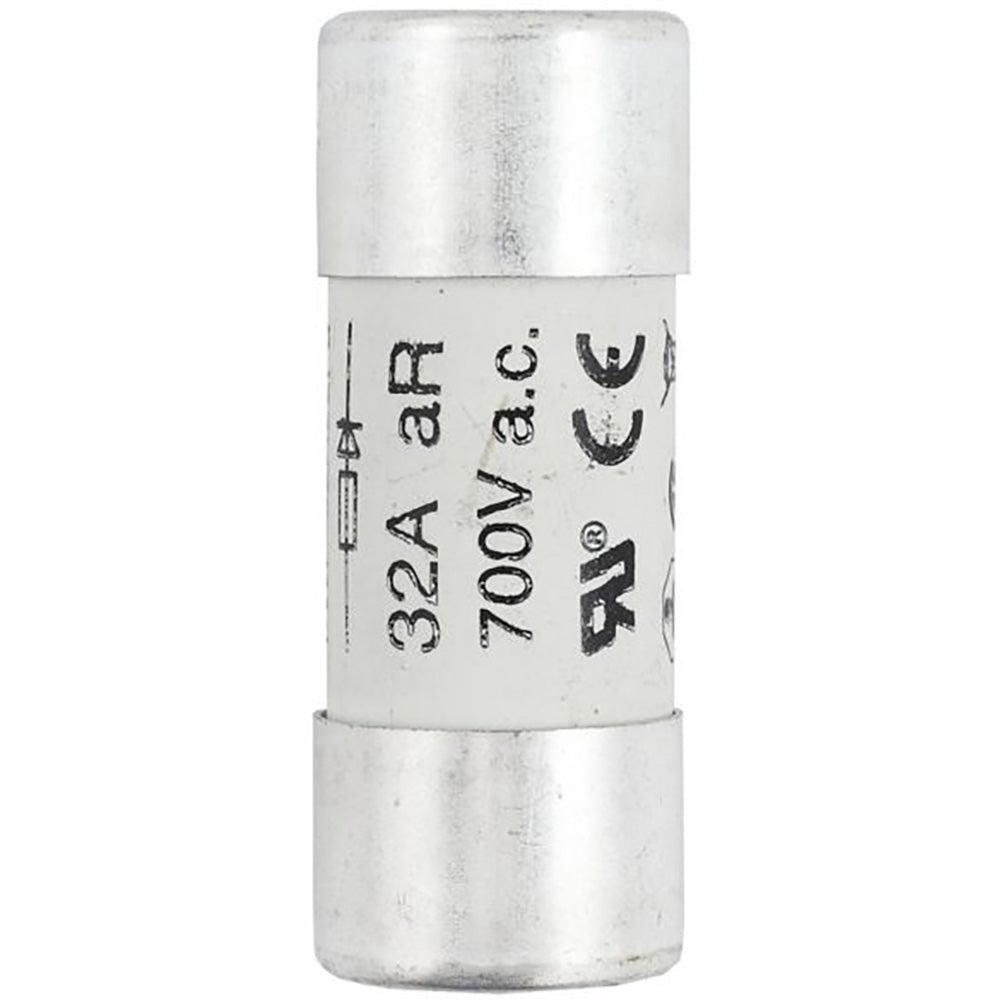

FWP-32A22F
FWP-32A22F is a high-speed, fast-acting semiconductor fuse designed for reliable circuit protection in demanding applications.
This Eaton Bussmann Series fuse features a ceramic body, cylindrical form factor, and is engineered for high interrupting capacity. It is ideal for protecting sensitive semiconductor devices in residential, commercial, and industrial settings.
-
Key Specifications
- Amperage: 32A
- Voltage: 700V AC (IEC), 700V DC (UL)
- Poles: Single
- Mounting Type: Holder/Clip (cartridge style)
- Interrupt Rating: 200,000 AIC RMS (AC), 50,000 AIC (DC)
- Series/Frame: FWP
- Trip Unit: Fast acting (high speed)
- Certifications: UL Recognized
- Size: 22 mm x 58 mm (0.875" x 2.283")
- Material: Ceramic
- Termination: Clip
- Application: Semiconductor protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FWP-32A22F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 32
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 0.88
- Barrels : 1
Product Data
- UPC : 05171279654
- GTIN : 00051712796545
- Country of Origin : India
- Dimensions : 58 mm x 23 mm x 23 mm (Length/Depth x Height x Width)
- Weight : 0.14513
- Certification : UL Recognized ,CSA Certified,RoHS Compliant,CE Marked
