Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
FWP-32A14FA

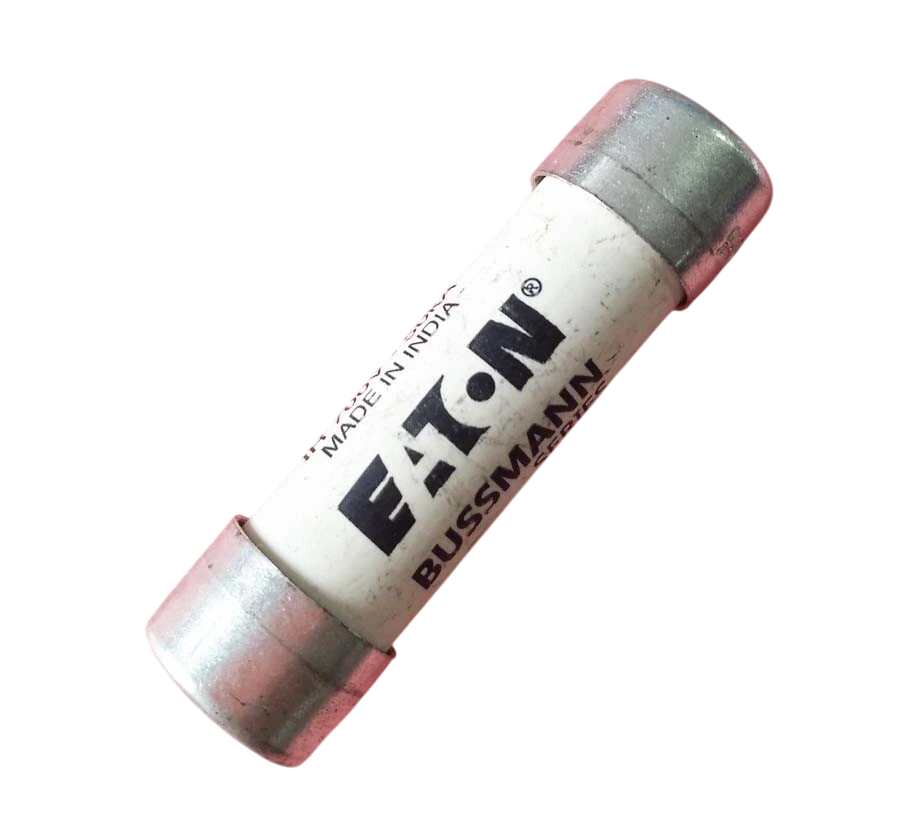

FWP-32A14FA is a high speed cylindrical fuse from Eaton Bussmann, designed for reliable protection in demanding electrical applications. This fuse features a 32A current rating and a 700V AC/DC voltage rating, making it suitable for use in semiconductor, DC common bus, DC drives, and power converter systems. The fuse is constructed with a ceramic body and ferrule ends for secure mounting in compatible holders or blocks.Engineered for excellent cycling capability and DC performance, the FWP-32A14FA offers low arc voltage, low energy let-through (I2t), and low watt loss in a compact 14x51mm size. It is non-indicating and is commonly used in finger-safe holders or blocks. The fuse is recognized for its fast-acting response and is suitable for applications requiring high interrupt capacity.
- Amperage Rating: 32A
- Voltage Rating: 700V AC/DC
- Fuse Size: 14x51mm
- Interrupt Rating: 200 kAIC (AC), 50 kA (DC)
- Mounting Type: Ferrule end x ferrule end
- Series: Bussmann FWP-A14F
- Utilization Category: aR (semiconductor protection)
- Construction Material: Ceramic
- Application: Semiconductor, DC drives, power converters
- Agency Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant
- Clearing I2t: 600
- Watt Losses: 8W
Specifications
- Part Number: FWP-32A14FA
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 32
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- Weight : 5
