FWP-32A14F - Eaton Bussmann 32A 700V Fast Acting High Speed Semiconductor Fuse 14x51mm 200kAIC

FWP-32A14F

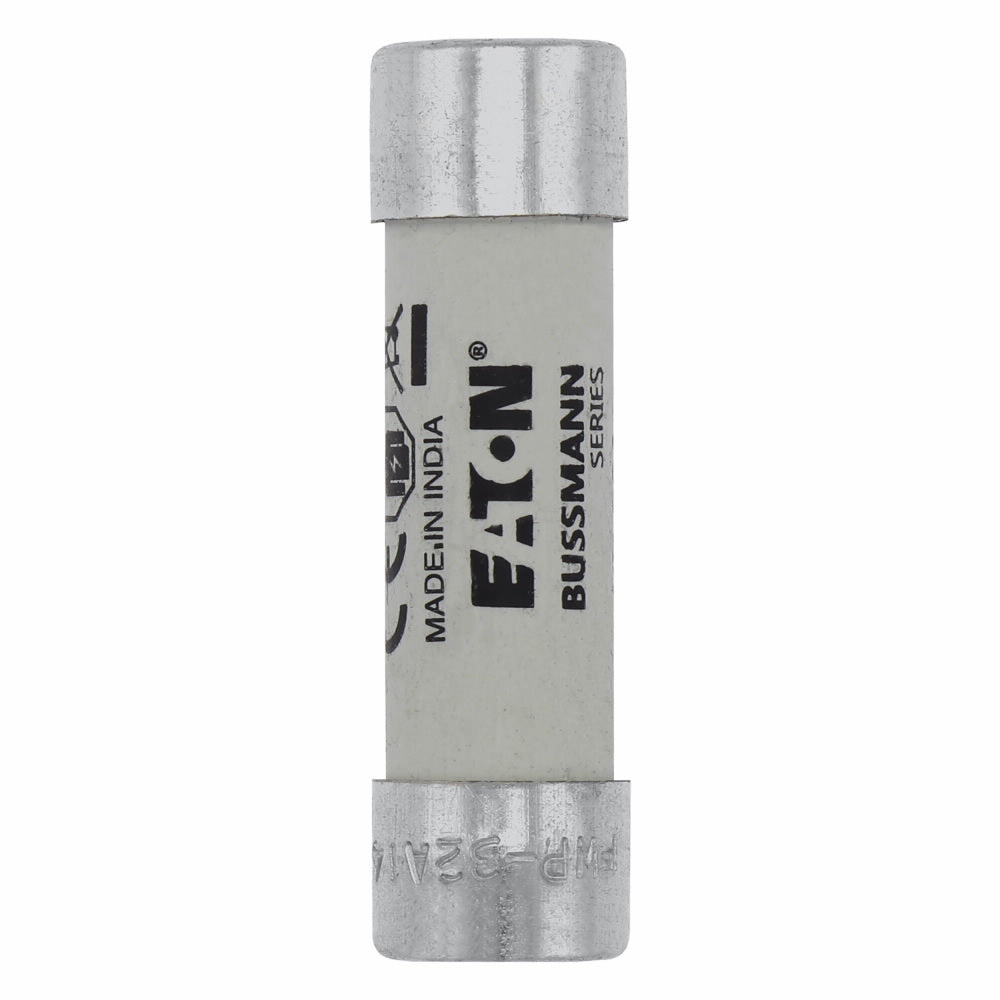

FWP-32A14F is a fast acting high speed semiconductor fuse from Eaton Bussmann series designed for 32 ampere and 700 volt applications.This fuse features a 14 x 51 mm ceramic body with ferrule ends, rated for 32A continuous current and 700V AC/DC voltage. It has a high interrupting rating of 200 kAIC at 700 VAC and 50 kAIC at 700 VDC, class aR, non-indicating type, suitable for semiconductor protection, DC common bus, DC drives, and power converters. It is UL recognized, CSA certified, CE marked, and RoHS compliant.

Key Specifications
• Amperage: 32 A
• Voltage Rating: 700 V AC/DC
• Interrupting Rating: 200 kAIC AC, 50 kAIC DC
• Fuse Size: 14 x 51 mm
• Fuse Type: Fast Acting High Speed Semiconductor
• Class: aR
• Body Material: Ceramic
• Fuse Indicator: Non-Indicating
• Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant
• Mounting Style: Ferrule End X Ferrule End
• Application: Semiconductor, DC drives, power converters
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FWP-32A14F
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWP Series
• Type : FWP
• Voltage : 700
• Amperage : 32
• AIC rating : 200kA@700V
• Connection : Ferrule
• Diameter : 0.56
• Barrels : 1



Product Data

• UPC : 051712796491
• GTIN : 00051712796491
• Country of Origin : India
• Dimensions : 51 mm x 15 mm x 15 mm (Length/Depth x Height x Width)
• Weight : 0.04715
• Certification : CE, CSA Certified, UL Recognized
