Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

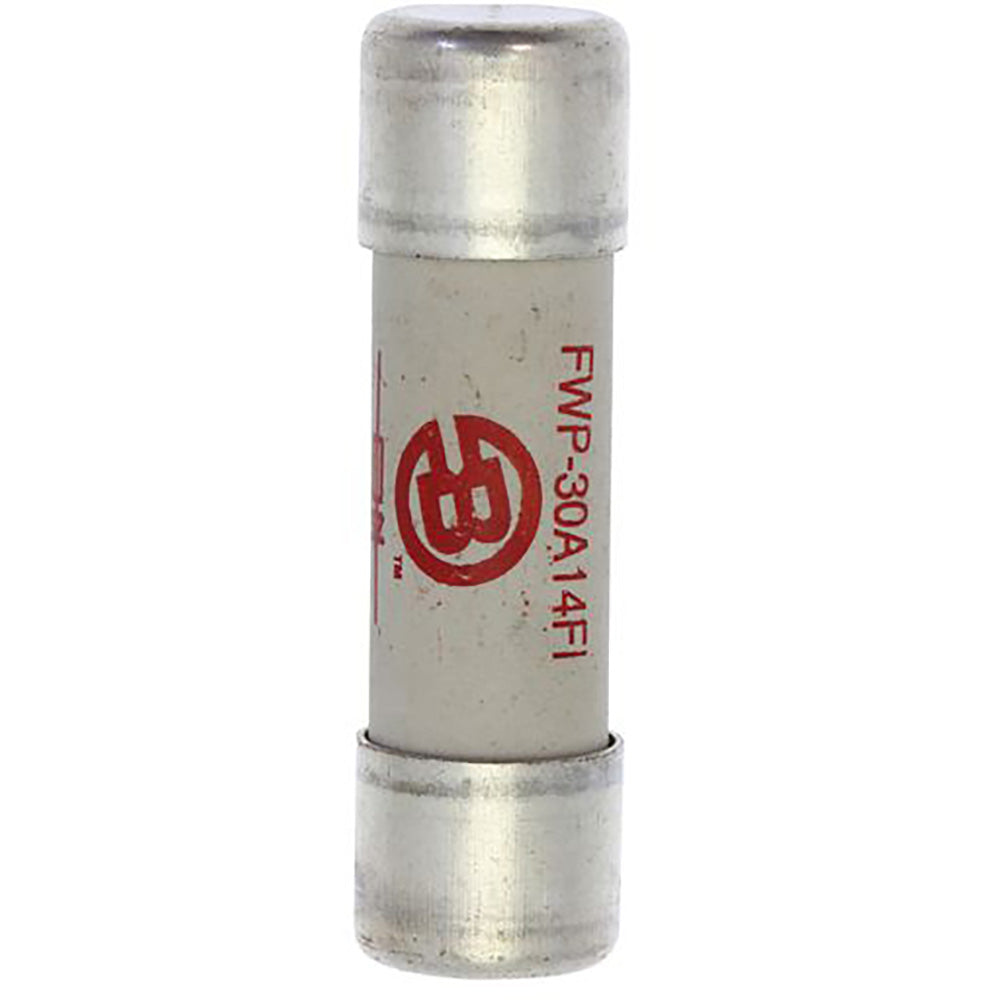

FWP-30A14FI
FWP-30A14FI is a high speed fuse from the Eaton Bussmann series designed for demanding circuit protection applications. This fuse features a 30A current rating and is built for use in both AC and DC systems, providing reliable protection for sensitive equipment.Engineered for high performance, the FWP-30A14FI fuse offers a rated voltage of 690VAC (IEC), 700VAC (UL), and 600VDC (UL). It includes an indicator for easy status monitoring and is suitable for use in DC common bus, DC drives, power converters, rectifiers, and reduced voltage starters. The fuse is designed for use with finger-safe holders and blocks, ensuring safe installation and operation.
- 30A current rating
- 690VAC (IEC), 700VAC (UL), 600VDC (UL) voltage rating
- 200 kAIC interrupt rating at 700VAC
- 50 kAIC interrupt rating at 600VDC
- High speed, very quick acting
- With indicator
- Ferrule style, 14 x 51 mm
- Used with finger-safe holders
- Operating class: aR
- UL Recognized, CE, CSA Component acceptance
Specifications
- Part Number: FWP-30A14FI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 30
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 051712510783
- GTIN : 00051712510783
- Dimensions : 52 mm x 15 mm x 15 mm (Length/Depth x Height x Width)
- Weight : 0.0529
