Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

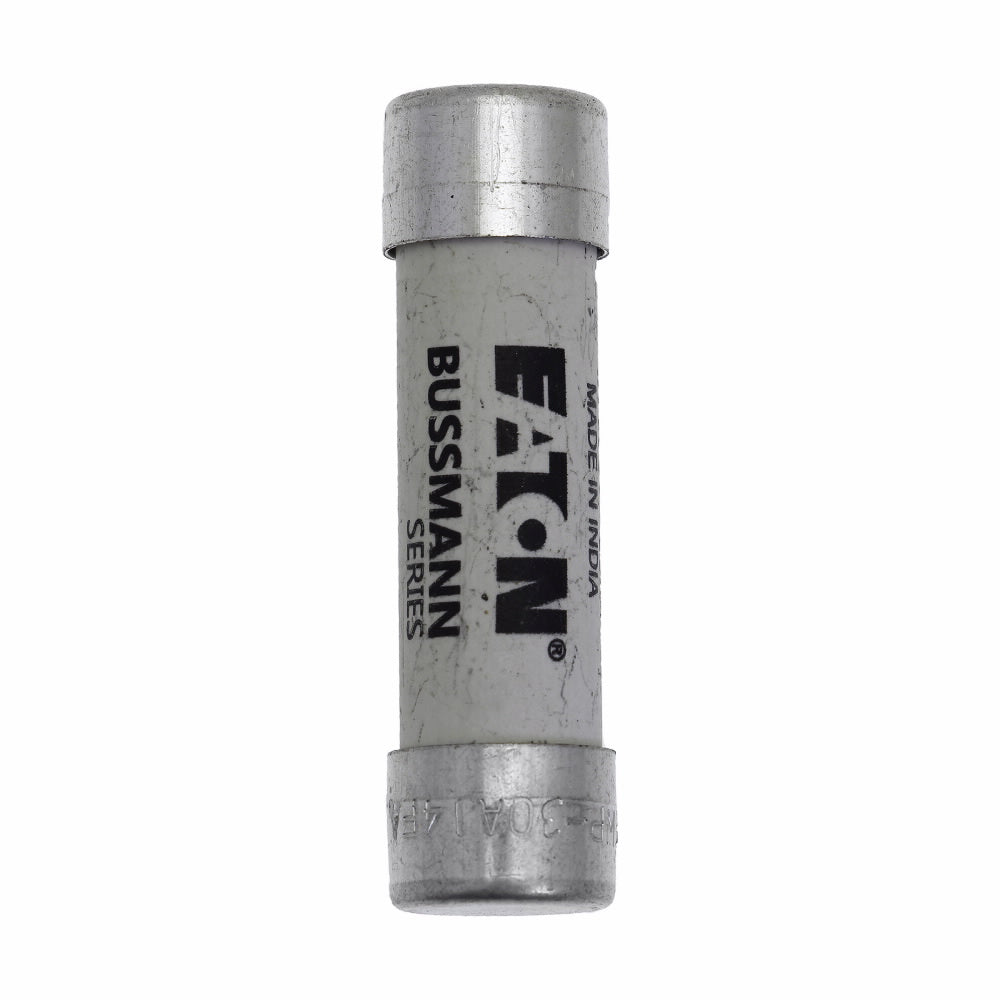

FWP-30A14F
FWP-30A14F is a fast acting high speed semiconductor fuse from Eaton's Bussmann Series designed for reliable circuit protection.FWP-30A14F features a 30 amp rating with a voltage capacity of 700 VAC and 700 VDC, suitable for semiconductor protection applications. It has a cylindrical 14 x 51 mm ferrule style body with a stud mount configuration. The fuse offers a high interrupting rating of 200,000 AIC at 700 VAC and 50,000 AIC at 700 VDC, meeting UL recognition standards. It is classified as aR (accompanied semiconductor protection) and provides fast clearing times to protect sensitive equipment.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 700 VAC / 700 VDC
- Interrupting Rating: 200 kA at 700 VAC, 50 kA at 700 VDC
- Fuse Size: 14 x 51 mm cylindrical ferrule
- Mounting Type: Stud mount
- Utilization Category: aR (semiconductor protection)
- Fast Acting High Speed Fuse
- UL Recognized
- Pre-arc I2t: 58 A2s
- Clearing I2t: 400 A2s
Specifications
- Part Number: FWP-30A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 30
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 051712795968
- GTIN : 00051712795968
- Country of Origin : India
- Dimensions : 51 mm x 15 mm x 15 mm (Length/Depth x Height x Width)
- Weight : 0.04669
- Certification : CE, CSA Certified, UL Recognized
