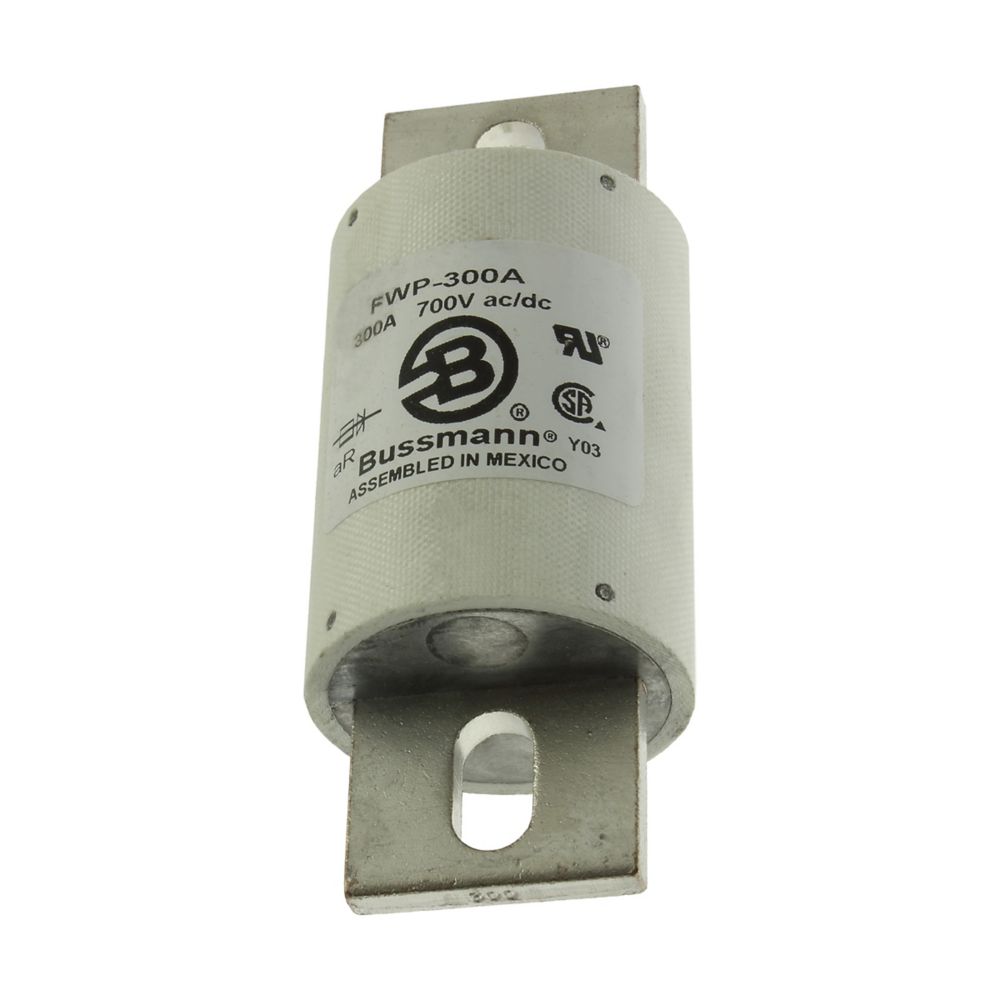

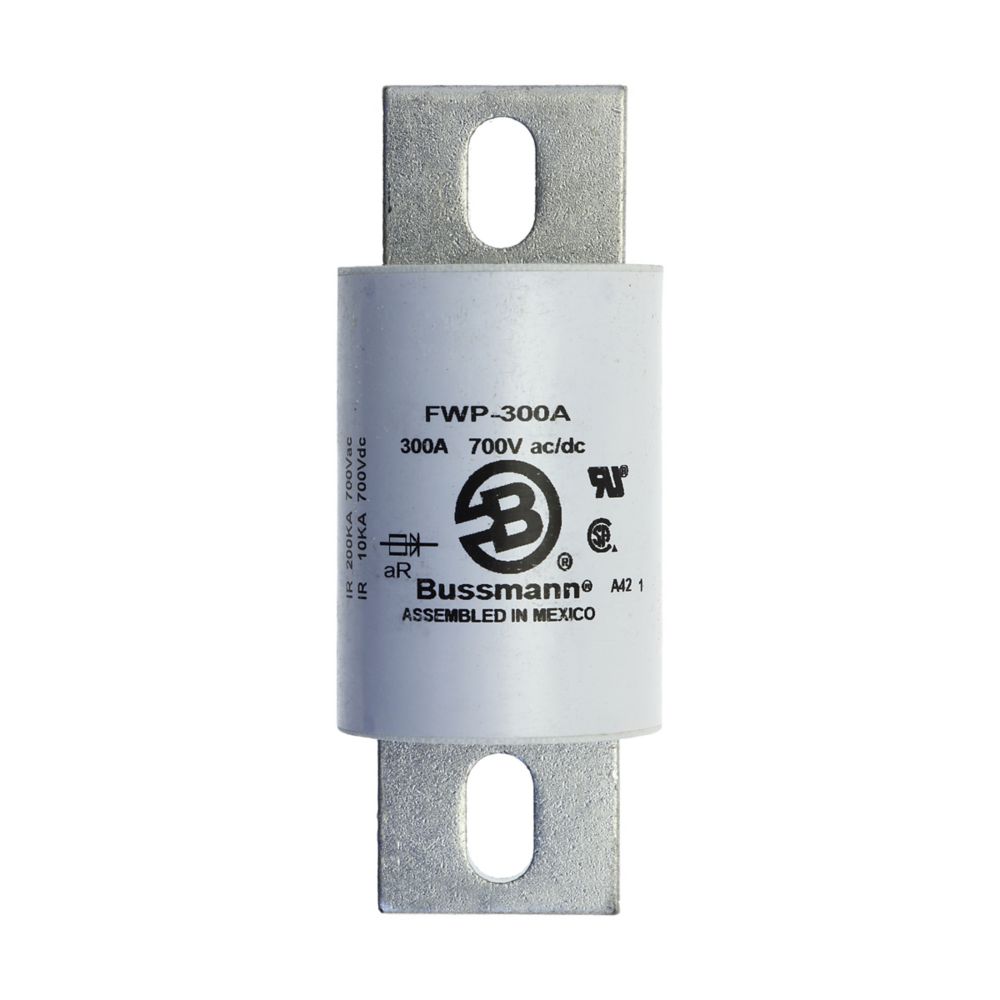

FWP-300A - Eaton Bussmann Series High Speed Fuse 300A 700VAC 700VDC Stud Mount Blade End

FWP-300A

FWP-300A is an Eaton Bussmann series high speed fuse rated for 300 amps and 700 volts AC/DC with stud mounting and blade end connections.FWP-300A offers high interrupting ratings of 200 kAIC at 700 VAC and 50 kAIC at 700 VDC, designed for semiconductor protection with non-indicating fuse elements. It features a compact size with dimensions approximately 2.4 x 5.4 x 2.9 inches and weighs 1.7 lbs. This fuse is UL Recognized, CSA Certified, CE Marked, and RoHS Compliant, suitable for demanding industrial applications requiring fast-acting protection.

Key Specifications
• Amperage Rating: 300A RMS
• Voltage Rating: 700 VAC / 700 VDC
• Interrupting Rating: 200 kAIC at 700 VAC, 50 kAIC at 700 VDC
• Mounting Type: Stud Mount
• Connection: Blade end x blade end
• Fuse Indicator: Non Indicating
• Series: Bussmann FWP
• Watt Losses: 58 W
• Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant
• Weight: 1.7 lbs
• Dimensions (LxHxW): 2.4 x 5.4 x 2.9 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWP-300A
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWP Series
• Type : FWP
• Voltage : 700
• Amperage : 300
• AIC rating : 200kA@700V
• Connection : Stud
• Diameter : 2
• Barrels : 1

Product Data

• UPC : 051712150415
• GTIN : 00051712150415
• Country of Origin : Mexico
• Dimensions : 2.4 in x 5.4 in x 2.9 in (Length/Depth x Height x Width)
• Weight : 1.7
• Certification : CE, CSA Certified, UL Recognized
