Product Info
- Manufacturer: Bussmann
- Sub-Category: Low Voltage
Description
FWP-25

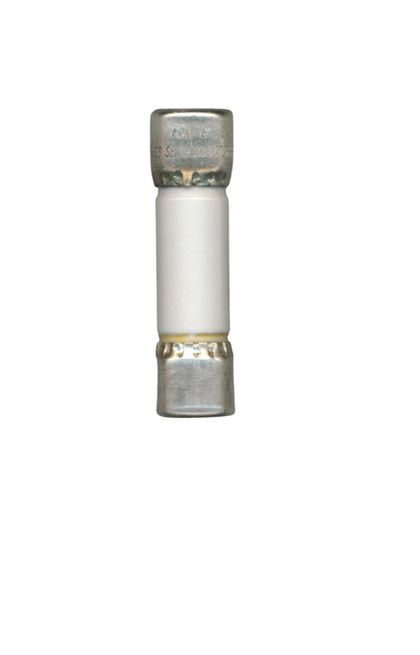

FWP-25A14F is an Eaton Bussmann series high speed cylindrical fuse designed for semiconductor and power converter protection.FWP-25A14F features a 25 ampere rating, 700 volts AC voltage rating, and a 200,000 AIC interrupting rating. It measures 14 x 51 mm and is a fast-acting fuse with ferrule end connections. This fuse is UL Recognized and suitable for overload and short-circuit protection in demanding electrical applications.
- Amperage: 25 A
- Voltage Rating: 700 V AC
- Fuse Size: 14 x 51 mm
- Interrupting Rating: 200,000 AIC RMS
- Fuse Type: High Speed Cylindrical
- Connection: Ferrule end x ferrule end
- Mounting Type: Stud Mount
- Operating Class: gR (full range)
- UL Recognized Standard 248-13
Specifications
- Part Number: FWP-25
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 25
- AIC rating : 200kA@700Vac/dc
- Connection : Bolted
- Diameter : 0.56
- Barrels : 1
Product Data
- Weight : 5
