Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

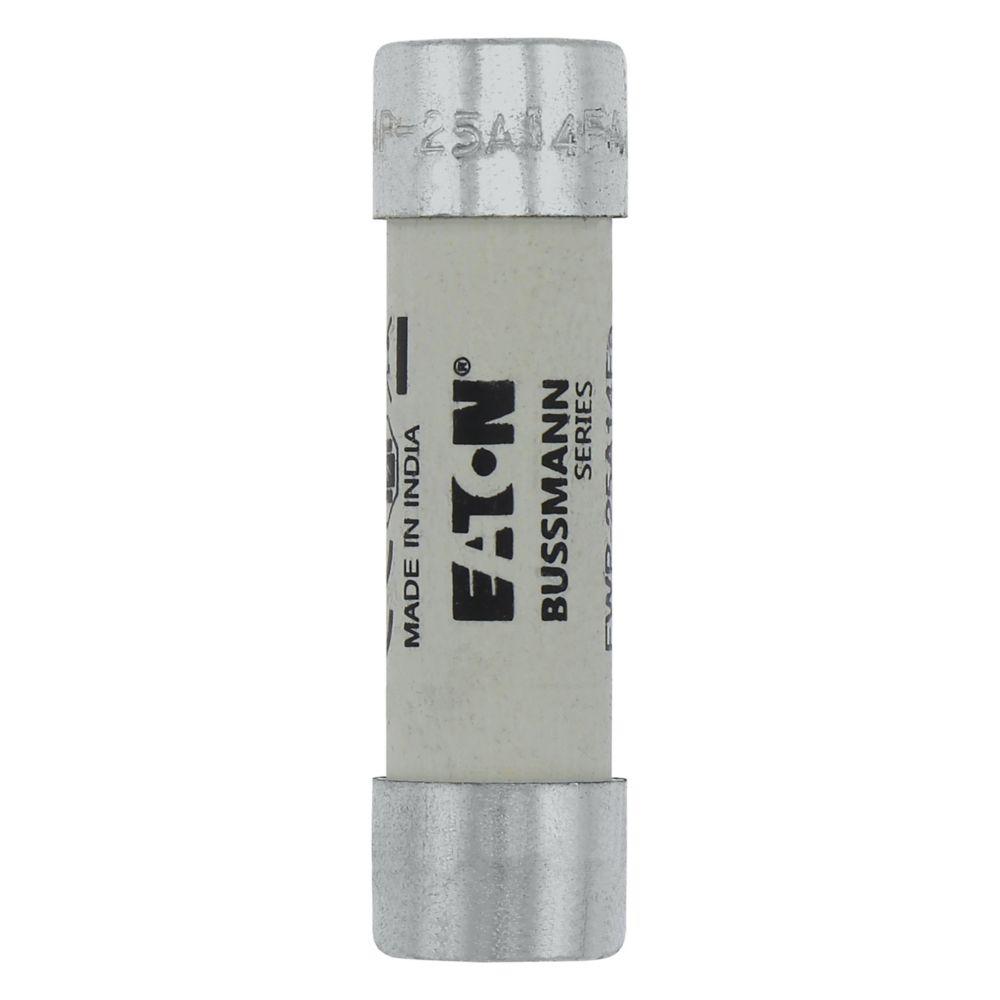

FWP-25A14F
FWP-25A14F is a 25 Amp, 700 Volt AC semiconductor fuse designed for fast acting protection with stud mount installation.This fuse features a compact cartridge body measuring 0.563" x 2", with an interrupting rating of 200,000 AIC RMS at AC and 10,000 AIC at 700 VDC. It is UL Recognized and ideal for semiconductor circuit protection requiring fast response.
- Amperage: 25 Amps
- Voltage: 700 Volts AC / 700 Volts DC
- Fuse Type: Semiconductor
- Fuse Timing: Fast Acting
- Mounting Type: Stud Mount
- Physical Size: 0.563" x 2"
- Interrupting Rating: 200,000 AIC RMS AC
- Interrupting Rating: 10,000 AIC at 700 VDC
- UL Recognized
Specifications
- Part Number: FWP-25A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 25
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 05171279595
- GTIN : 00051712795951
- Country of Origin : India
- Dimensions : 51 mm x 15 mm x 15 mm (Length/Depth x Height x Width)
- Weight : 0.04669
- Certification : CE, CSA Certified, UL Recognized
