Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

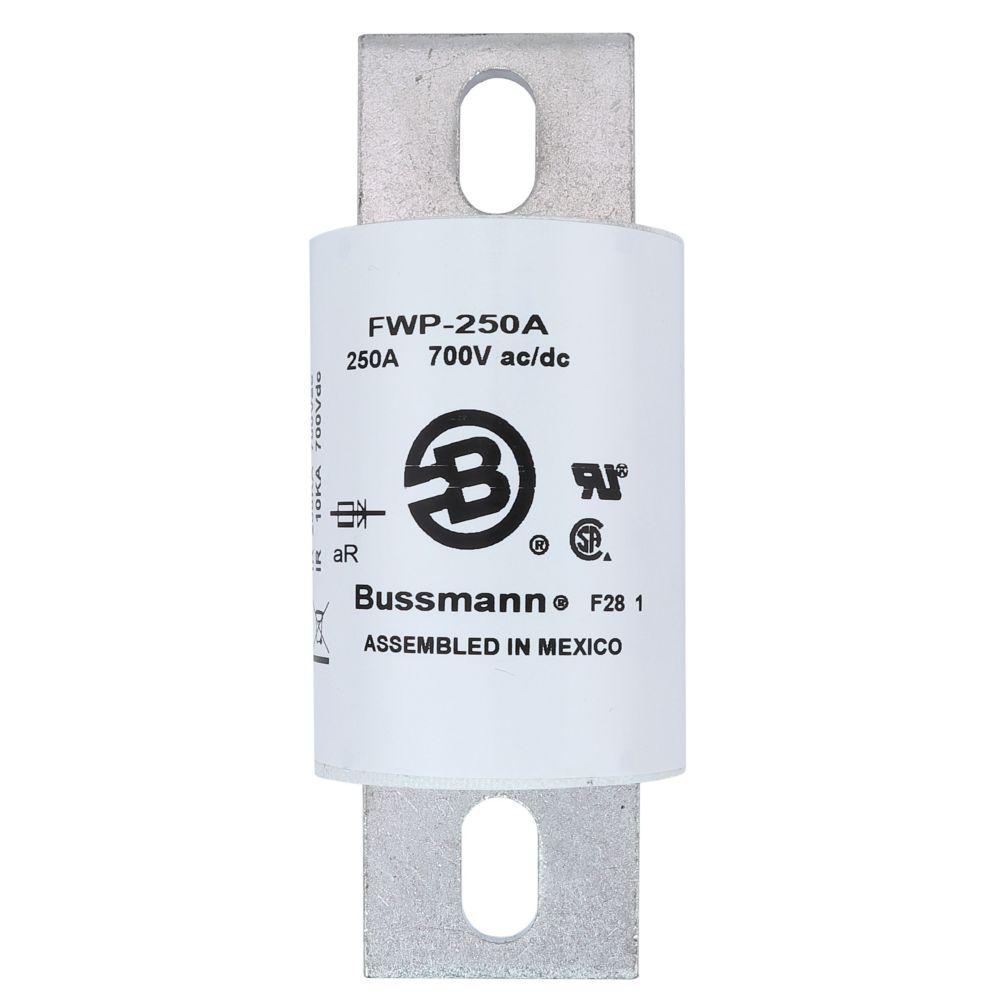

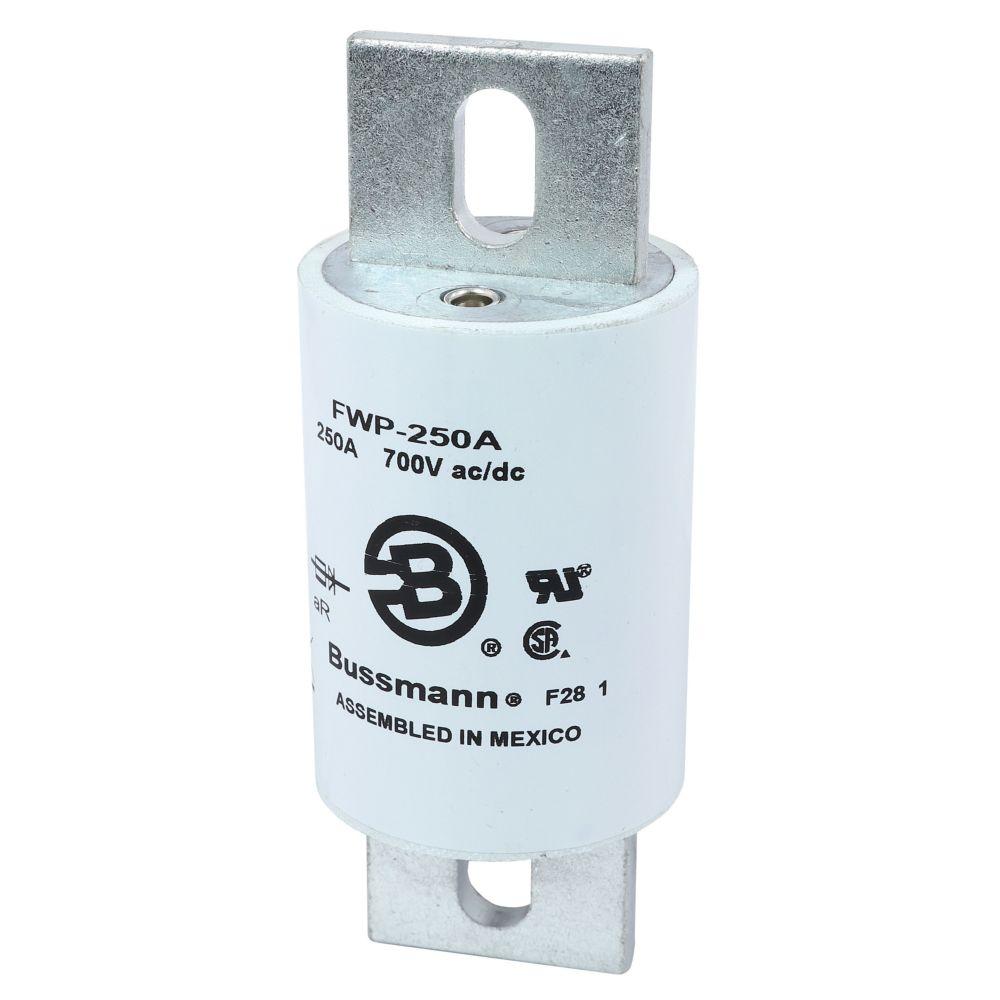

FWP-250A
FWP-250A is a Cooper Bussmann Eaton semiconductor high speed fuse rated for 250 amps and 700 volts AC/DC with stud mounting.This fuse features a 200 kA interrupting rating at 700 VAC and 50 kA at 700 VDC, designed for semiconductor protection with blade end connections. It is non-indicating and UL and CSA certified for safety and reliability.
- Current Rating: 250 Amps
- Voltage Rating: 700 VAC/VDC
- Interrupting Rating: 200 kA @ 700 VAC, 50 kA @ 700 VDC
- Fuse Type: Semiconductor High Speed
- Mounting Type: Stud Mount
- Connection: Blade end x Blade end
- Non-Indicating
- Certifications: UL, CSA
- Physical Size: Approximately 1.5" x 5.09"
- Series: Bussmann FWP
Specifications
- Part Number: FWP-250A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 250
- AIC rating : 200kA@700V
- Connection : Stud
- Diameter : 2
- Barrels : 1
Product Data
- UPC : 051712150408
- GTIN : 00051712150408
- Country of Origin : Mexico
- Dimensions : 2.4 in x 5.4 in x 2.9 in (Length/Depth x Height x Width)
- Weight : 1.7
- Certification : CE, CSA Certified, UL Recognized
