Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

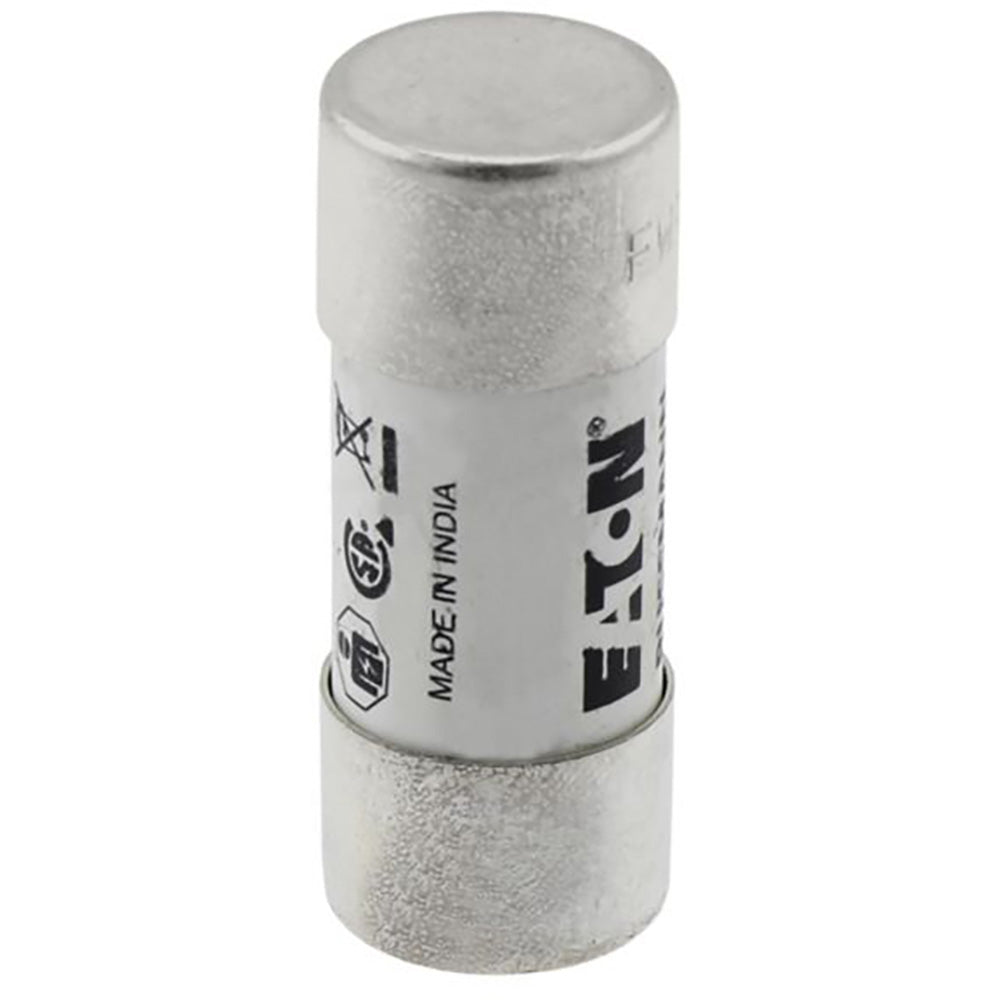

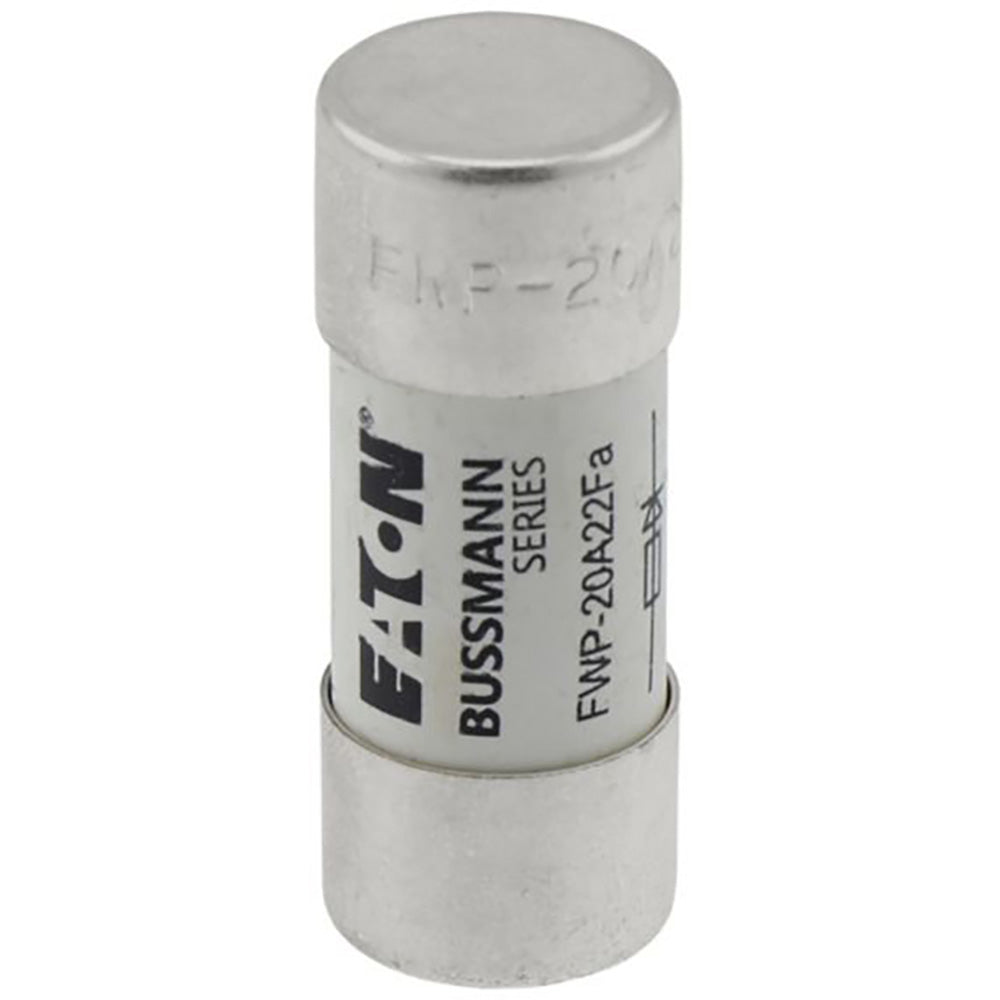

FWP-20A22F
FWP-20A22F is a high speed cylindrical fuse from Eaton's Bussmann series designed for semiconductor and DC applications.This 20 amp fuse features a 700 V AC/DC voltage rating, 200 kA interrupt rating, and a compact 22 x 58 mm ceramic ferrule body. It is a Class aR fuse with fast-acting characteristics, suitable for protecting DC common bus, DC drives, power converters, and reduced voltage starters. The fuse is UL recognized, CSA certified, and CE marked, offering reliable performance with low watt losses of 5 W.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 700 V AC/DC
- Interrupt Rating: 200 kAIC
- Fuse Class: aR
- Fuse Size: 22 x 58 mm
- Fuse Type: High Speed Cylindrical
- Material: Ceramic
- Certifications: UL Recognized, CSA Certified, CE Marked
- Pre-arc I2T: 23
- Clearing I2T: 330
- Watt Losses: 5 W
- Mounting: Ferrule end x Ferrule end
Specifications
- Part Number: FWP-20A22F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 20
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 0.88
- Barrels : 1
Product Data
- UPC : 051712796521
- GTIN : 00051712796521
- Dimensions : 56 mm x 23 mm x 23 mm (Length/Depth x Height x Width)
- Weight : 0.12811
